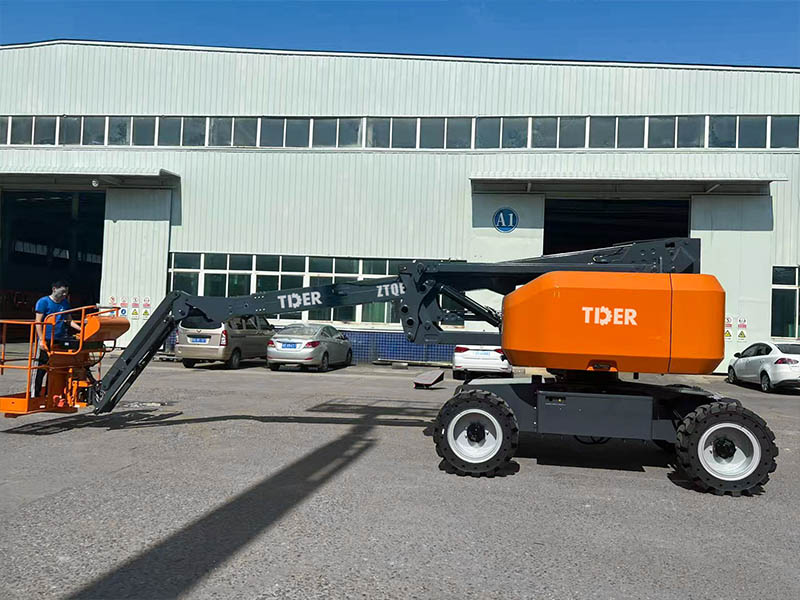

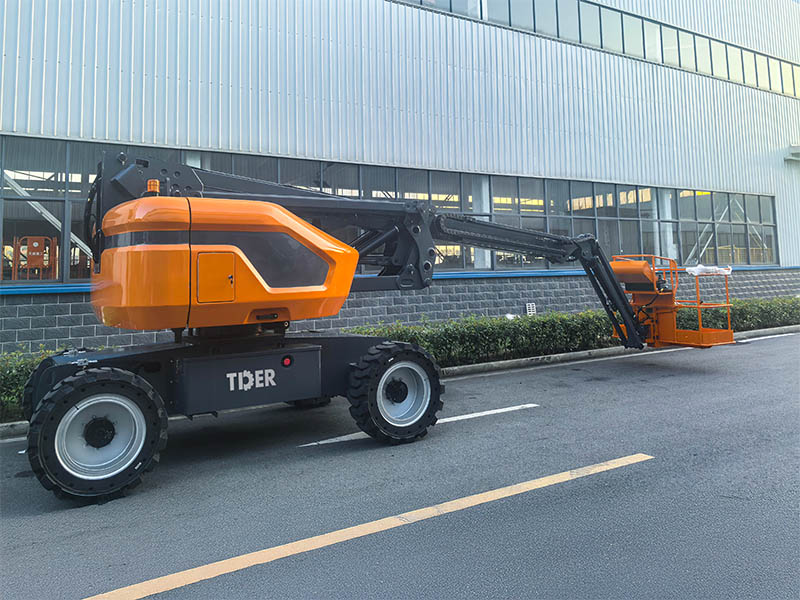

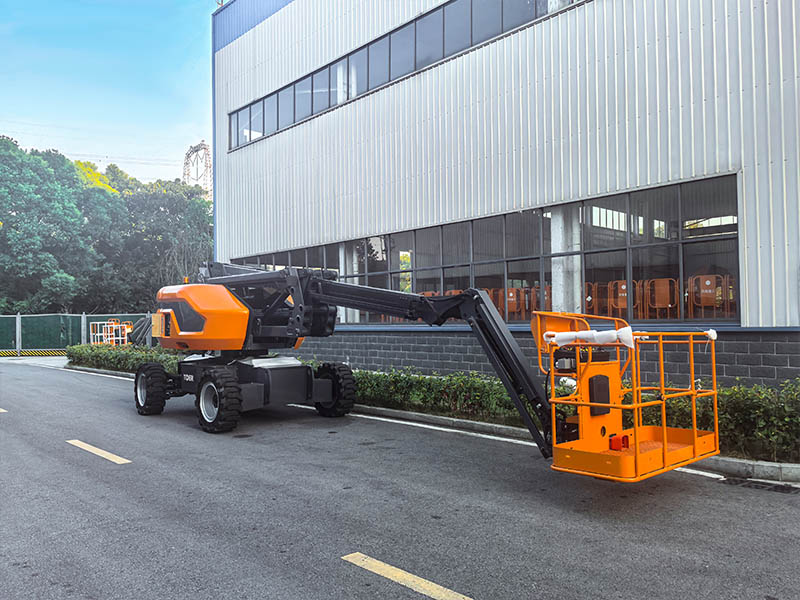

TDER Articulated Boom Lift is specially designed for complex aerial tasks, featuring a multi-angle articulated boom structure for flexible reach and precise positioning. Coupled with a high-performance hydraulic system and precise control, it efficiently completes installation, inspection, and maintenance tasks. The robust chassis and intelligent control ensure stable and safe operation, while the articulated boom structure can overcome obstacles, making it suitable for building facades, industrial facilities, and municipal aerial work applications.

Electric Articulated Boom Lift covers working heights from 14 to 28 m, equipped with long-range lithium-ion or lead-acid battery. With four-wheel AC drive and differential steering control, it achieves low noise, zero emissions, and high-endurance operation.

1. Maximum working height of 20.1 m with 11.7 m horizontal outreach, suitable for high-rise buildings, large industrial facilities, and municipal construction sites, capable of handling complex elevated work environments with ease.

2. Platform rated for 250 kg, supporting two operators and heavy tools, ensuring safe and efficient execution of installation, maintenance, and inspection tasks at height.

3. 355° rotation combined with 8 m obstacle clearance enables multi-angle access over pipelines, beams, and barriers, providing enhanced flexibility in complex working environments.

4. 48 V high-capacity battery offers long-lasting operation, with optional maintenance-free lithium battery for low-noise and zero-emission urban and industrial applications.

5. Compact chassis with 40% gradeability and 0.41 m ground clearance allows stable movement on ramps and lightly unpaved surfaces, ensuring precise positioning.

6. 4WD/2WS driving system maintains stability and control in raised position, with a minimum inner turning radius of 2.7 m, facilitating frequent relocation and continuous operations, improving efficiency and safety.

With technological innovation, our product configuration and parameters will continue to change without notice;

if there is any doubt, the specific confirmation of our international trade sales shall prevail.
