Tractor

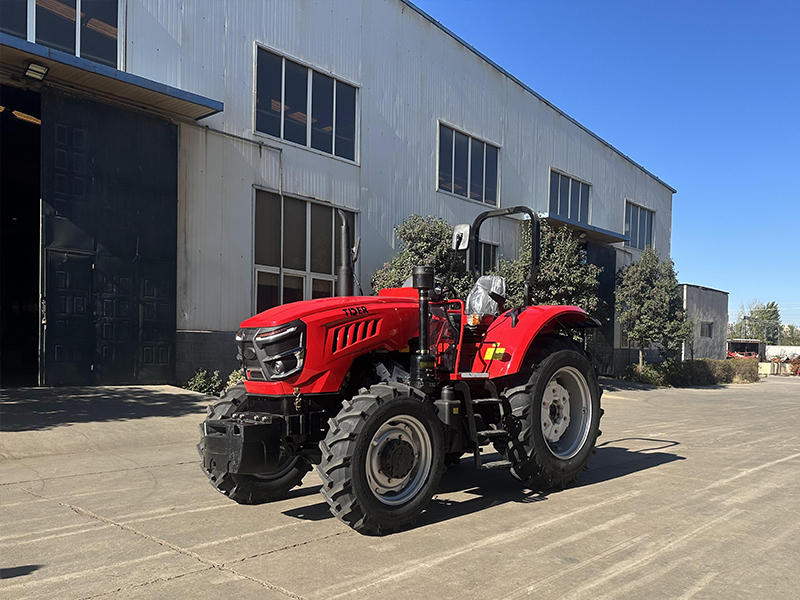

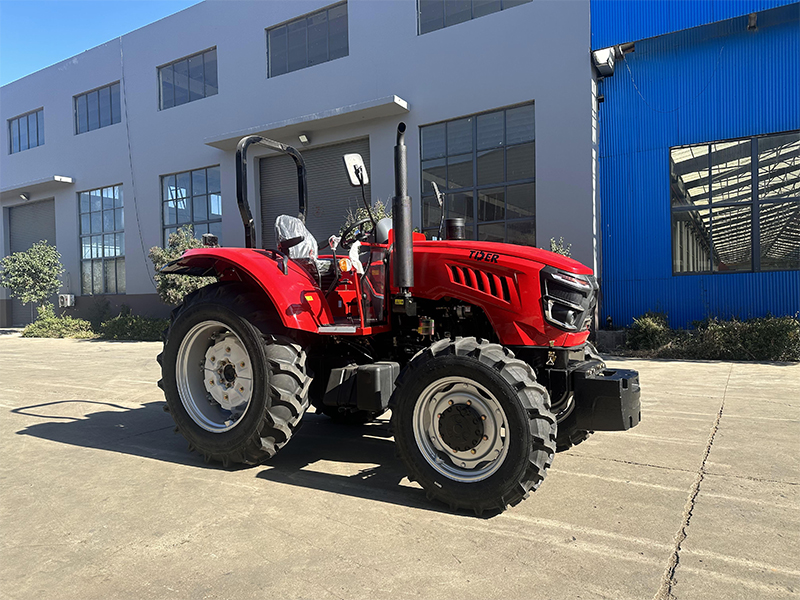

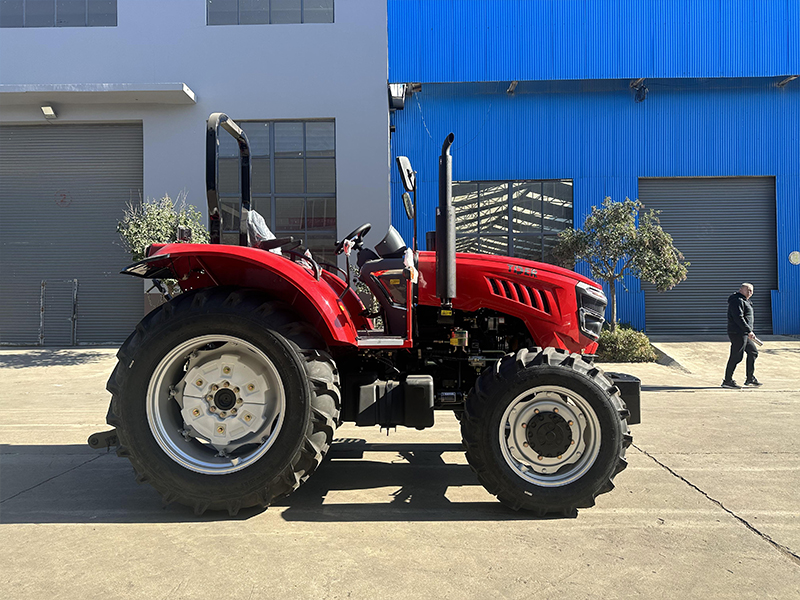

TD Series 120 HP Farm Tractor


TD120


Power: 120hp


Weight: 4660kg


PRODUCT DETAILS

TDER tractors cover the full power range from 25–220 HP. This wheel tractor and farm tractor series features a robust and durable structure, powerful engines, responsive hydraulic systems, flexible transmission, and easy operation. The optimized counterweight and chassis design ensure stable performance, while the ergonomic cab provides excellent visibility and sound insulation, keeping operators comfortable during long hours.

TDER tractors can be equipped with a variety of high-efficiency implements such as plows, rotary tillers, mowers, loader buckets, trailers, and sprayers. This multi-purpose farm tractor meets diverse tasks including cultivation, transport, loading, and field maintenance.Widely applicable to farmland cultivation, orchard management, road maintenance, municipal projects, landscaping, and port operations, TDER wheel tractors are the ideal choice for those seeking efficiency and reliability.


1. Powerful performance with eco-friendly upgrade: Equipped with Dongfanghong four-cylinder and six-cylinder engines, covering a power range of 66.2–117.7 kW. Selected models support optional Euro V engines to meet different emission standards.

2. Premium tires with flexible track adjustment: Fitted with Chaoyang brand tires; track width adjustable between 1620–1820 mm. Front wheels step-adjustable, rear wheels stepless, enhancing implement adaptability and operational stability.

3. Efficient transmission and power output: Features a 24F+8R transmission with an optional 16F gearbox, paired with an 8-spline Φ38 PTO shaft. Maximum PTO output exceeds 100 kW, meeting diverse operational demands.

4. Multiple hydraulic outputs with precise control: Standard three-way hydraulic output system with strong lift/drop functions, supporting both position control and floating control, ensuring efficiency and operational accuracy.

5. Reinforced frame and optimized chassis structure: Heavy-duty frame design with well-distributed counterweights—front 170+40 kg, rear 96 kg—ensures stability and durability during high-intensity operations.

6. Comfortable and safe driving environment: Standard air-conditioned cab and safety frame, with ergonomic seat and instrument panel, ensuring operator comfort and safety during long working hours.

7. Flexible hitch and quick-change system: Rear Category II three-point quick hitch allows rapid implement replacement, improving versatility and operational efficiency.

8. Diverse optional configurations for personalized needs: Options include cab, air brake, safety frame, and canopy, enabling customization for different working conditions and operator preferences.


Model
TD120
Drive Type
4WD (4×4)
PowerkW88.2
Overall Dimension (L*W*H)mm4750*2100*3060
Wheelbasemm2600
Min. Ground Clearancemm420
Min. Operating Masskg4660
Front Treadmm1620 (1620–1820) adjustable
Rear Treadmm1620 (1620–1820) adjustable
Clutch Type
Dry, double-acting
Engine Model
YTO 6-cylinder
Rated Speedr/min2200
Gear
24F+8R (optional 16F+8R)
PTO Type
8-spline Φ38 Type 1 (optional 6-spline)
PTO Rated PowerkW>75
PTO Speedr/min760/1000 or 760/850 or 540/1000
Three-point Linkage
Rear, Category 2
Hydraulic Output
3-group valve
Hydraulic Adjustment
Forced hydraulic system, position + floating control
Max. Lifting Force at Frame CenterkN>21.2
Standard Tyre (Front/Rear)
12.4-24 / 16.9-34
Optional Tyre I (Front/Rear)
13.6-24 / 16.9-38
Other Options
Cabin, air brake, ROPS, sunroof (all optional)


With technological innovation, our product configuration and parameters will continue to change without notice;

if there is any doubt, the specific confirmation of our international trade sales shall prevail.
