Tractor

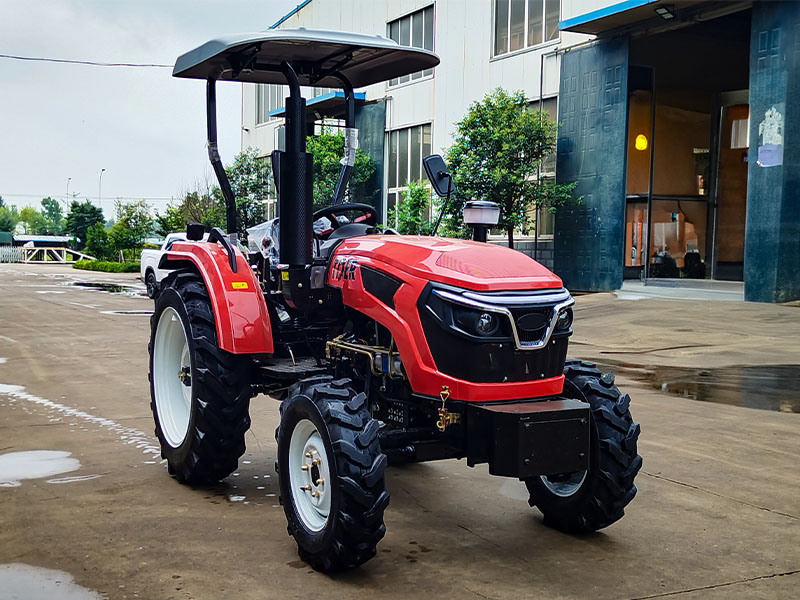

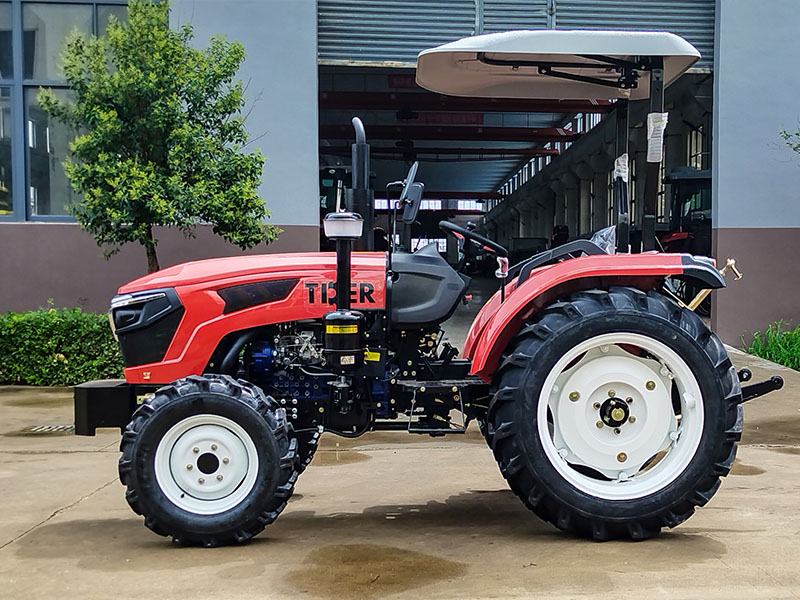

TE Series 40 HP Farm Tractor


TE40


Power: 40hp


Weight: 1780kg


PRODUCT DETAILS

TDER tractors cover the full power range from 25–220 HP. This wheeled tractor series features a robust and durable structure, powerful engines, and responsive hydraulic systems. Designed for professional farming, our TE chassis ensures stable performance, making these some of the most reliable tractors for sale in the international market.


The TDER TE series is the ultimate tractor with attachments, compatible with a variety of high-efficiency implements such as plows, rotary tillers, and loader buckets. This multi-purpose machine meets diverse tasks including cultivation, transport, and loading. Widely applicable to farmland and municipal projects, TDER 4wd tractor models provide the efficiency and reliability you need for large-scale operations.


1. Four-wheel drive, powerful and stable: All models adopt a 4×4 drive system to ensure continuous power output with excellent traction under complex terrains and heavy-load operations.

2. Multiple horsepower options with eco-friendly engines: Available in 40–70 HP models, including the popular 50 horsepower tractor configuration. Equipped with YUNNEI engines, selected models support Euro V compliance for international standards.

3. Efficient transmission and precise hydraulic system: Standard 8F+2R gearbox with a hydraulic system integrating position control. Maximum lifting force reaches 12.4 kN, significantly higher for heavy-duty implements.

4. Flexible wheel track adjustment with multiple tire options: Front wheels step-adjustable, rear wheels steplessly adjustable (1000–1500 mm). Multiple tire specifications are available to adapt to various crop row spacings and terrains.

5. Rich optional configurations for enhanced safety and comfort: Options include a full cab, air brake, and canopy. Standard features include a safety frame and counterweights to ensure operational balance.

6. Stable PTO power output: Offers 540 and 720 rpm PTO speeds with a six-spline shaft, ensuring efficient and reliable power transmission to multiple tools.

7. Quick-hitch three-point linkage for improved efficiency: Equipped with a quick-change system, enabling rapid switching of your tractor with attachments, enhancing overall operational efficiency.

8. Personalized customization to meet diverse needs: Flexible customization of air brakes and safety frames allows the TE series to meet specific working conditions and user preferences.


Model
TE40
Drive Type
4WD (4×4)
PowerkW29.4
Overall Dimension (L*W*H)mm3630*1550*2370
Wheelbasemm1860
Min. Ground Clearancemm355
Min. Operating Masskg1780
Front Treadmm1200 (1000–1500) adjustable
Rear Treadmm1200 (1000–1500) adjustable
Clutch Type
Dry, single-acting (optional double-acting)
Engine Model
4-cylinder
Rated Speedr/min2400
Gear
8F+2R (optional 8F+8R)
PTO Type
6-spline Φ35 Type 1
PTO Rated PowerkW≥25.0
PTO Speedr/min540/720

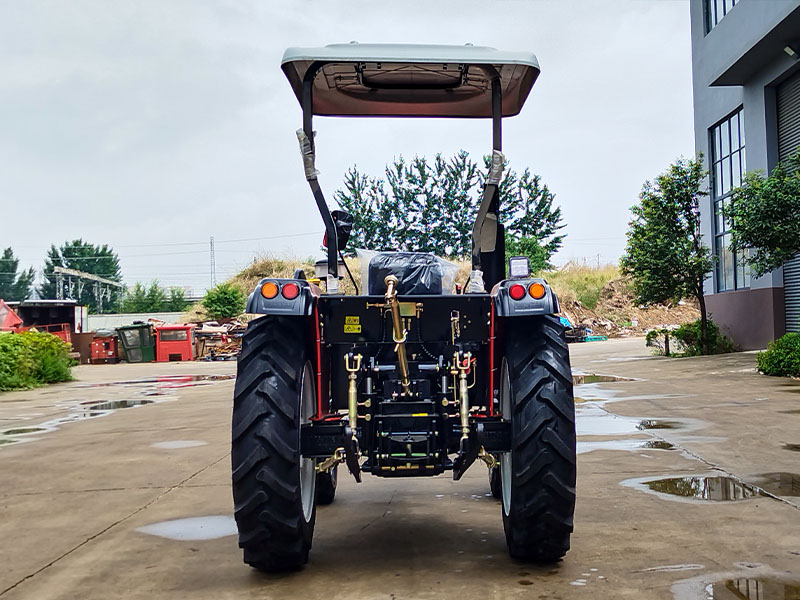

Three-point Linkage
Rear, Category 1
Hydraulic Output
1-group valve (optional 2-group)
Hydraulic Adjustment
Forced hydraulic system, position & floating control
Max. Lifting Force at Frame CenterkN≥7.1
Standard Tyre (Front/Rear)
7.50-16 / 11.2-28
Optional Tyre I (Front/Rear)
7.50-20 / 12.4-28
Optional Tyre II (Front/Rear)
6.50-16 / 11.2-24
Other Options
Cabin, air brake, ROPS, sunroof (optional)


With technological innovation, our product configuration and parameters will continue to change without notice;

if there is any doubt, the specific confirmation of our international trade sales shall prevail.
