ATB25
Maximum pulling force: 25KN
Maximum pulling capacity: 25000KG

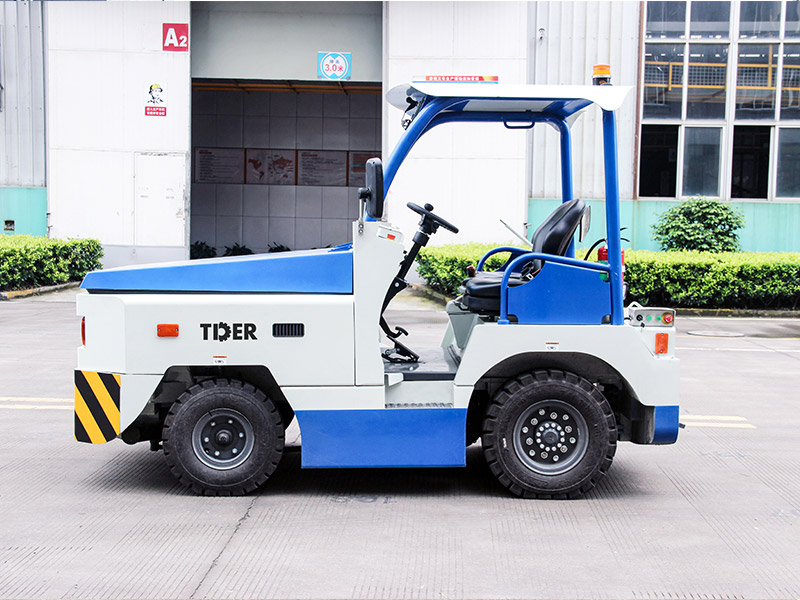

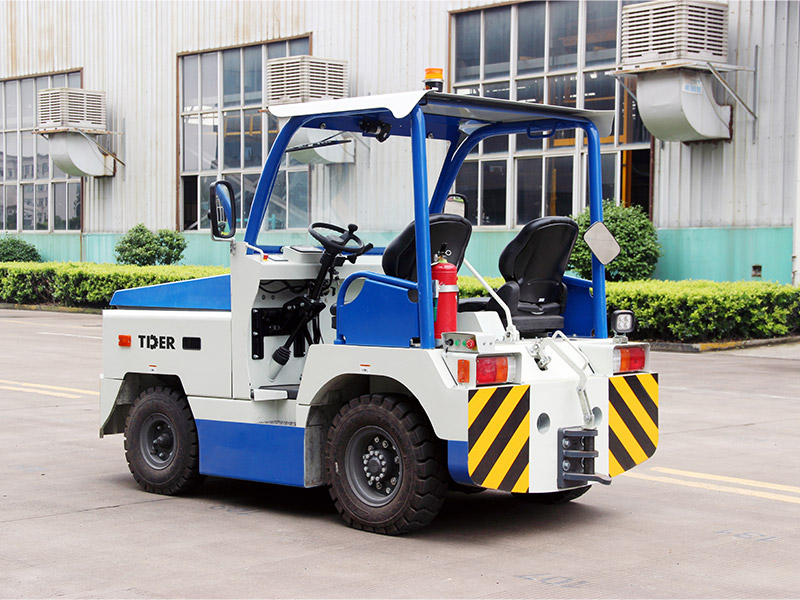

TDER Electric Tow Tractor features a high-efficiency electric drive system with outstanding advantages such as zero emissions, low noise, and minimal maintenance. It is particularly suitable for areas with strict environmental and noise regulations, including airport terminals, high-speed railway platforms, and warehouse workshops.
With a compact body and agile handling, it ensures smooth operation in narrow aisles, frequent start-stop conditions, and multi-operator working scenarios. Combined with a high-capacity battery and precise electronic control system, it significantly enhances endurance and operational efficiency, making it an ideal solution for green towing and transport tasks.
1. Enhanced Power Output:Equipped with a top-brand electric motor, the vehicle supports up to 25 tons of towing weight and delivers a traction force of 25 kN—ideal for heavy-duty tasks such as night-time mass baggage transfers at airports.
2. Improved Towing Adaptability:Standard Italian PMP drive axle with wet brakes ensures stable and durable performance, especially suitable for frequent start-stop airport operations.
3. Excellent Climbing Capability:With up to 30% gradeability, it easily handles slopes in airport basements or boarding bridge ramps.
4. Reinforced Vehicle Stability:Rear axle load reaches up to 2,100 kg, enhancing overall vehicle stability and braking performance under heavy towing conditions.
5. Extended Endurance and Energy Recovery:Large-capacity battery system combined with energy regeneration ensures reliable, all-day operation without interruption.
6. Smart Control & User-Friendly Operation:Equipped with a CURTIS controller and integrated LED instrument panel, delivering accurate control, self-diagnostic capability, and an improved driving experience with a low learning curve.

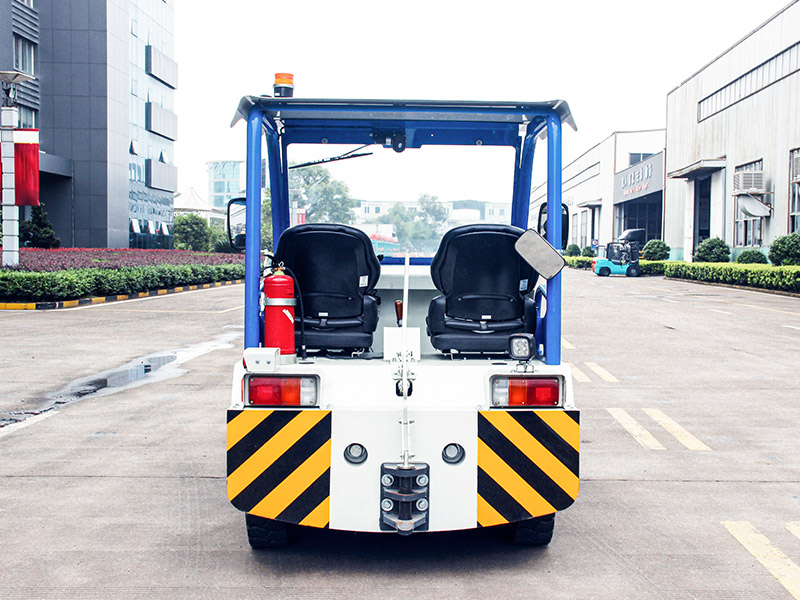

7. Versatile Trailer Compatibility:Multi-position adjustable towing hitch adapts to various baggage carts and cargo trailers for fast and secure connections.
8. Dual-Circuit Four-Wheel Braking System:Features vacuum-assisted hydraulic dual-circuit brakes on all four wheels, ensuring safe and reliable braking performance.
Model | ATB25 | ||
Performance | Max,drawbar pull | kN | 25 |
Max.towing weight(on dry smooth concrete floor) | kg | 25000 | |
Traveling speed | km/h | 20 | |
Traveling speed | km/h | 11 | |
Min,tuming radius | mm | 3250 | |
Grade ability | % | 30 | |
Weight distrbution(Front axle) | kg | 1700 | |
Weight distrbution(Rear axle) | kg | 2100 | |
Overall Weight(No Load) | kg | 3800 | |
Drive | Motor Model | ITALY PMP PMS701 | |
Rated Power | kW | 29 | |
Rated Voltage/Current | V/A | 55/295 | |
Rated Speed | rpm | 3500 | |
Excitation Mode | AC | ||
Rated Time | min | 60 | |
Size | Overall Length (with coupling) | mm | 3150 |
Overall Width | mm | 1440 | |
Overall Height (without cab height) | mm | 1450 | |
Wheelbase | mm | 1850 | |
Front Wheelbase | mm | 1240 | |
Rear Wheelbase | mm | 1190 | |
Minimum Ground Clearance | mm | 150 | |
Coupling Center Height | mm | 305/405 | |
Power supply | Battery Voltage/Capacity | V/AH | 80/690 |
Controller | Controller Model | USA CURTIS 1238 | |
Tires | Front Tires | 6.50-10 10PR | |
Rear Tires | 7.00-12 12PR |
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail.
