TCM15
Output per Batch: 1.5m³
Drum-Only Rotation

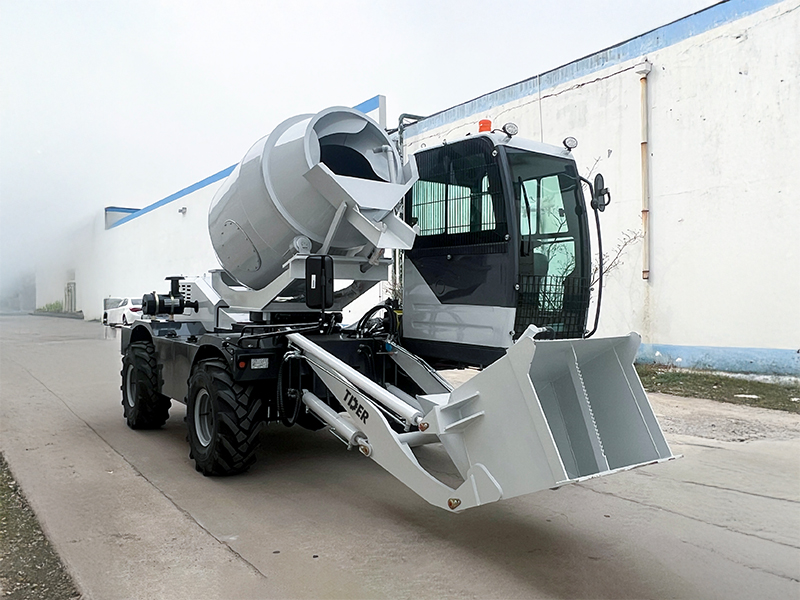

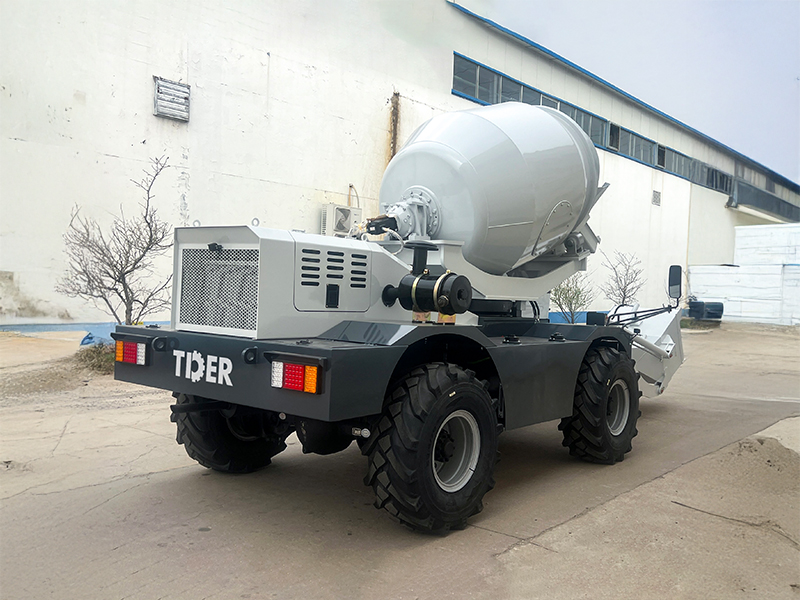

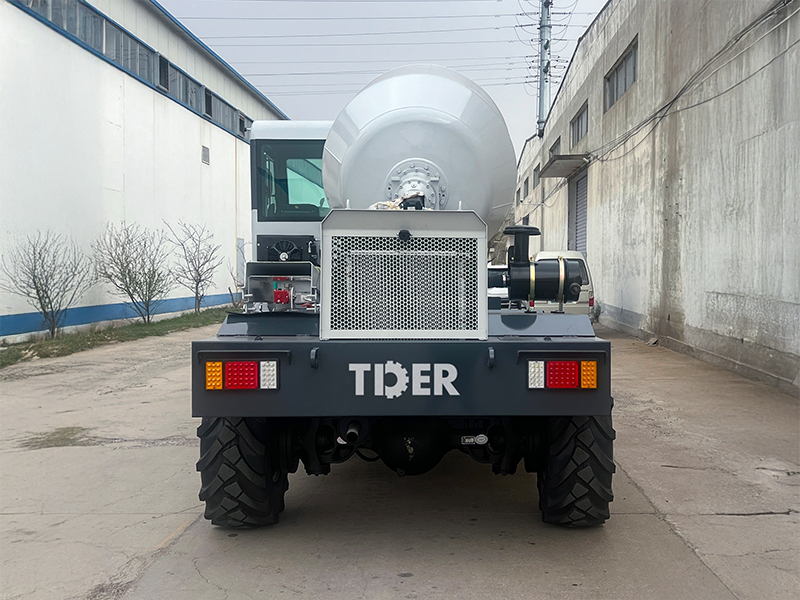

TDER Concrete Mixer Truck covers a capacity range from 1.5 to 5.5 cubic meters, meeting diverse concrete construction needs. The vehicle integrates loading, mixing, transportation, and discharging into one, ensuring high work efficiency and adaptability to various complex construction environments. With advantages such as high availability, flexible operation, easy maintenance, and fast return on investment, TDER Concrete Mixer Truck is widely used in urban and rural construction, road works, water conservancy projects, and remote areas, making it an ideal choice for small to medium-sized construction projects.
Drum-Only Rotation: Only the drum rotates independently while the cab remains fixed. This structure is more cost-effective and suitable for standard working conditions, though less maneuverable in tight or complex terrain.
1. Reinforced Integrated Frame for Higher Load Capacity: Built with a high-strength seamless steel tube welded chassis, the integrated structure significantly enhances load-bearing capacity and torsional rigidity, ensuring long-term durability and stability.
2. Agile Steering for Complex Job Sites: Rear-wheel steering combined with four-wheel drive, a 16° drum tilt angle, and 270° discharge rotation design ensure flexible maneuvering and efficient discharging, making it easy to handle tough construction terrains.
3. High-Efficiency Mixing System for Uniform Concrete: Equipped with dual-spiral blades and an optimized flow-guide structure, the 2.2 m³ drum ensures optimal discharge between 1.2–1.5 m³ per batch, delivering fast and even mixing performance.
4. Smart and Precise Operation Enhancing Work Efficiency: Integrated electronic weighing system, four-direction electric control joystick, and a resettable digital water meter provide simple, intuitive operation with accurate measurement for improved productivity.
5. Convenient Water Supply and High-Pressure Cleaning System: The hydraulic-driven self-priming pump works in tandem with a high-pressure cleaning pump, ensuring precise water delivery and fast equipment cleaning, effectively extending service life.
6. Comfortable and Safe Cabin for Secure Operation: The luxury cabin features air conditioning, adjustable seat, and rear-view camera, with standard safety equipment including a window breaker and fire extinguisher for comprehensive protection.
7. Reliable Core Components for Stable Performance: Equipped with renowned hydraulic systems, Liufeng drive axle, and TDER’s self-developed reducer, the machine ensures mature, stable performance and worry-free maintenance support.
| MODEL | TCM15 |
| Type | Integral frame chassis movable, self loading, mixing, transporting |
| Function | Concrete, sand, fertilizer compound, wet or dry feed materias mixing and discharging |
| Productivity | Bath ≤ 15mins, 4baths / hour |
| Steering | Rear Steering 4 x 4 |
| Engine | YUNNEI Engine: Four-Cylinder 58KW / 2200RPM |
| Speed | HIGH Speed: 30KM/H; Low Speed: 4KM/H |
| Number of gears | Three forwards, three backwards |
| Fuel consumption | Idle state 1-1.8L, working state 4L-6L |
| Tires | 23.5－16 (Steel wire tyre) |
| Mixing drum | Geometric volume 2.2 cubic meters, the best stirring 1.2-1.5 cubic meters |
| Spiral blades in tank | Double helix mixing, with the guide screw, so that the mixing material more uniform.Turn the feed left, turn the discharge right |
| Tilt of mixing tank | 16° |
| Mixing tank 270°discharges | The tank rotates horizontally to 270 degrees.There is no dead Angle for discharging around the vehicle |
| Tilting chute | Equipped with 2 chute for detachable to increase discharging length |
| Bucket | shovel capacity: 0.35³ |
| Bucket discharging switch | Hydraulic gate, electric control |
| Operating handle | Electric Control Buttom Four-Way Guide Handle |
| Travel Hydraulic System | TDER |
| Torque converter：TDER | |
| Mixing system | Speed reducer：TDER |
| Mixing Motor：ZHENJIANG DALI | |
| Drive axle | LIUFENG |
| Water supply | Hydraulic Driving Self-Priming Pump |
| High flow pump Cleaning | High-Pressure Water Pump Wash |
| Weighing system | Electronic Weighing System (language optional） |
| Voltage | Battery 24V-100A 2 Pieces |
| Water tank capacity | 240L |
| Diesel tank capacity | 110L |
| Weight | 5600KG |
| Walking control mode | Standard Configuration：Mechanical；Optional：Electric control |
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail.
