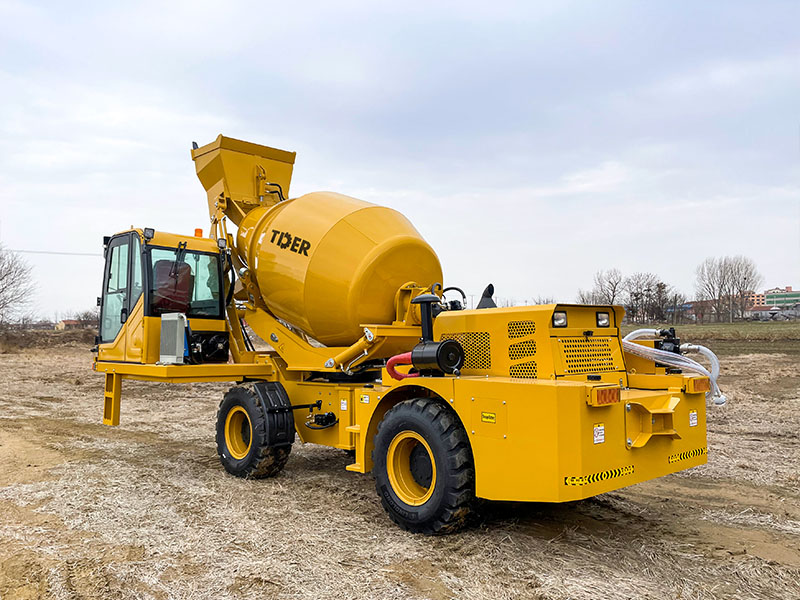

TDER Concrete Mixer Truck covers a capacity range from 1.5 to 5.5 cubic meters, meeting diverse concrete construction needs. The vehicle integrates loading, mixing, transportation, and discharging into one, ensuring high work efficiency and adaptability to various complex construction environments. With advantages such as high availability, flexible operation, easy maintenance, and fast return on investment, TDER Concrete Mixer Truck is widely used in urban and rural construction, road works, water conservancy projects, and remote areas, making it an ideal choice for small to medium-sized construction projects.

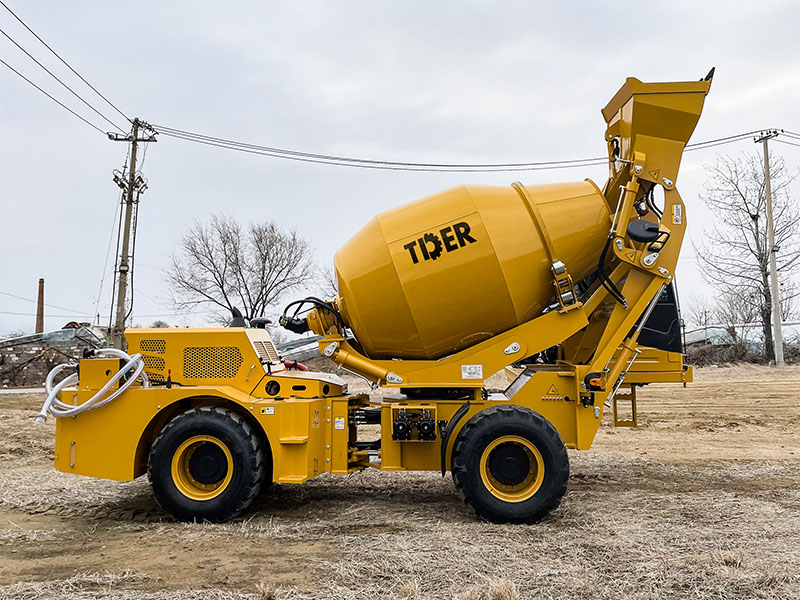

Drum-Only Rotation: Only the drum rotates independently while the cab remains fixed. This structure is more cost-effective and suitable for standard working conditions, though less maneuverable in tight or complex terrain.

1. Single batch capacity of 3.5 m³, with hourly output reaching up to 15.5 m³, delivering excellent efficiency.

2. Discharge outlet height of 1.8 meters and 270° drum rotation enhance unloading flexibility.

3. Equipped with Yuchai YCD4J22T engine, offering 85 kW rated power for strong and reliable performance.

4. Four-wheel drive system paired with a 280 Nm torque converter, ensuring stable traction under various road conditions.

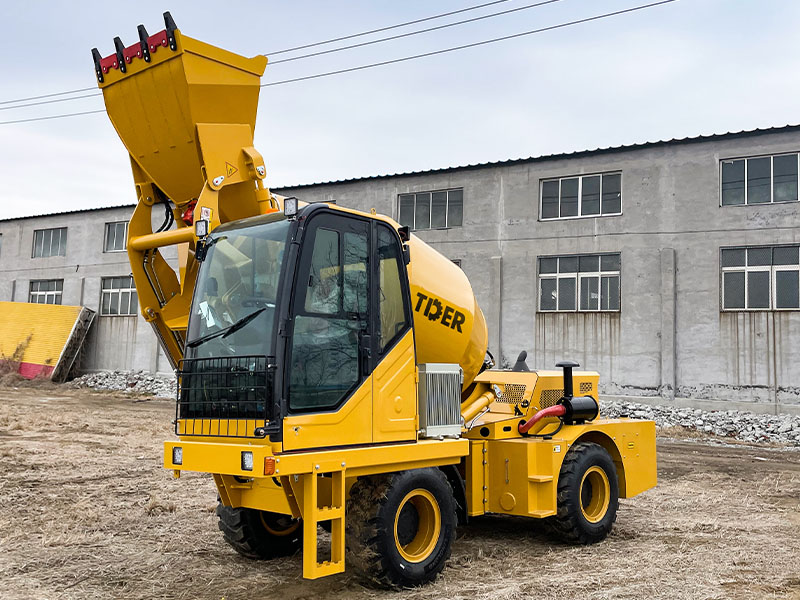

5. Luxury cabin with openable front window and cushioned armrest seat for comfortable driving and wide visibility.

6. Hydraulic system adopts a plunger motor + dual gear pump setup for strong continuous operation.

7. 0.6 m³ bucket capacity, with 150 cm standard discharge chute for extended unloading reach.

8. Dual-circuit servo braking system with four-piston calipers, offering fast response and high safety.

9. Fitted with 12R-22.5 steel-belted vacuum tires, providing excellent grip, wear resistance, and pressure durability.

10. Water supply system includes self-priming pump, centrifugal pump, and automatic water supply function, meeting various operational needs.

With technological innovation, our product configuration and parameters will continue to change without notice;

if there is any doubt, the specific confirmation of our international trade sales shall prevail.
