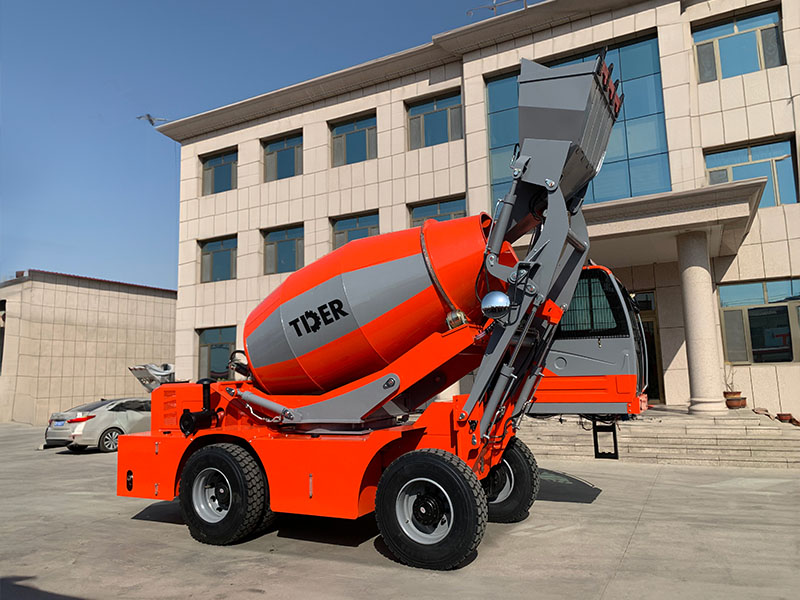

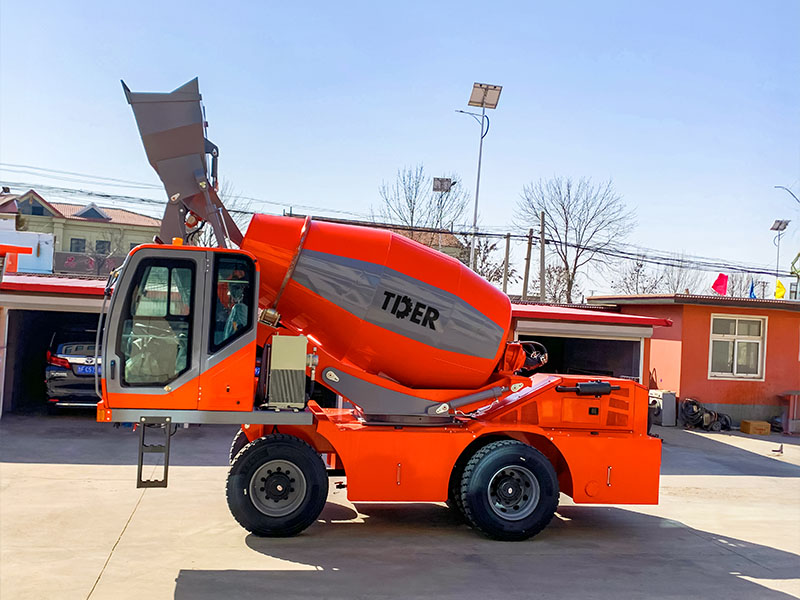

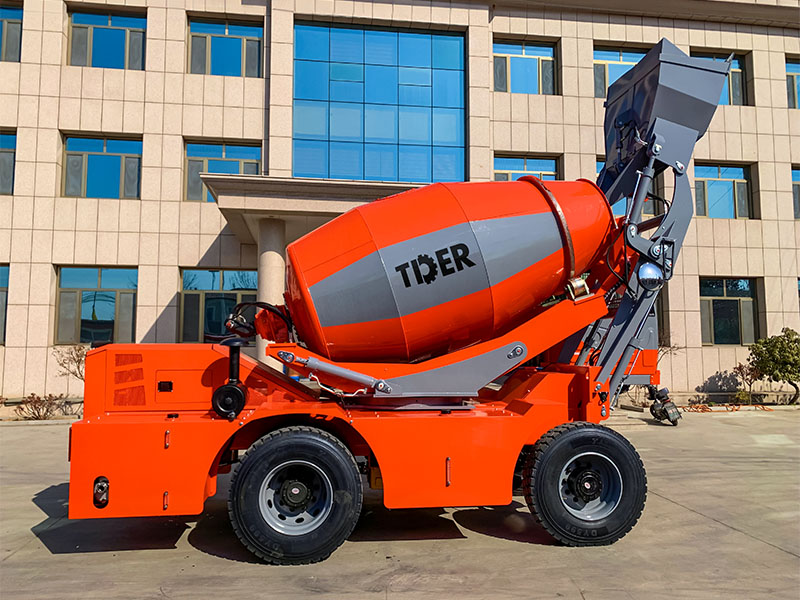

TDER Concrete Mixer Truck covers a capacity range from 1.5 to 5.5 cubic meters, meeting diverse concrete construction needs. The vehicle integrates loading, mixing, transportation, and discharging into one, ensuring high work efficiency and adaptability to various complex construction environments. With advantages such as high availability, flexible operation, easy maintenance, and fast return on investment, TDER Concrete Mixer Truck is widely used in urban and rural construction, road works, water conservancy projects, and remote areas, making it an ideal choice for small to medium-sized construction projects.

Drum-Only Rotation: Only the drum rotates independently while the cab remains fixed. This structure is more cost-effective and suitable for standard working conditions, though less maneuverable in tight or complex terrain.

1. Single batch mixing capacity of 4.2 m³, with an hourly output of up to 20 m³, meeting the needs of large-scale continuous concrete pouring.

2. Drum supports 270° horizontal rotation and hydraulic lifting, with a discharge height of up to 2.2 meters, adaptable to various job site conditions.

3. Powered by the Yuchai YCD4P22T engine, rated at 91 kW, offering strong power and stable performance.

4. 315 Nm torque converter combined with four-wheel drive system ensures stability in off-road and heavy-load conditions.

5. Hydraulic system with plunger motor and dual gear pumps, ensuring high efficiency and continuous operation.

6. 0.7 m³ large-capacity bucket with two 150 cm detachable chutes, enabling efficient long-distance discharge.

7. Dual 380L high-capacity water tanks, supporting continuous water supply for long-duration operations.

8. Four-wheel emergency braking and negative pressure parking system, improving safety during both operation and parking.

9. 12R-22.5 high-strength steel-belted tires, offering excellent traction and adaptability to various terrains.

10. Cabin integrates high-definition driving camera system, providing intuitive control and enhanced operational safety.

With technological innovation, our product configuration and parameters will continue to change without notice;

if there is any doubt, the specific confirmation of our international trade sales shall prevail.
