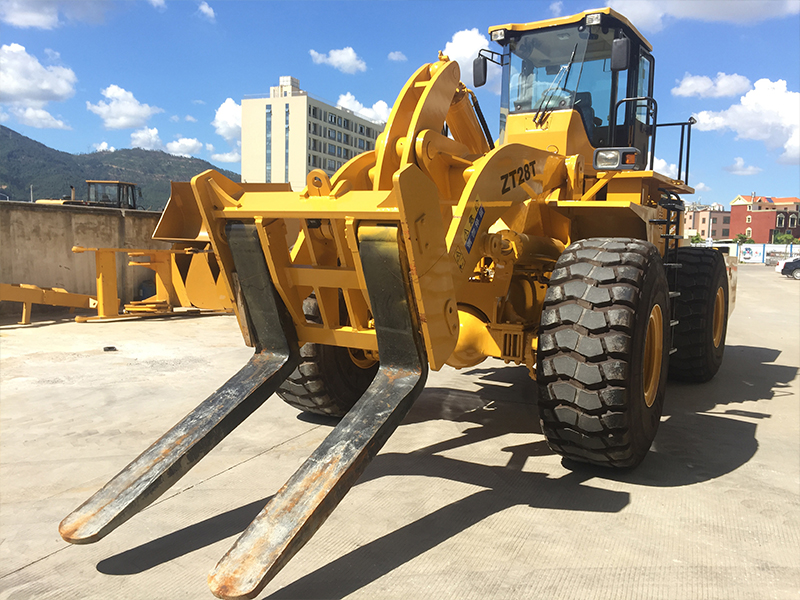

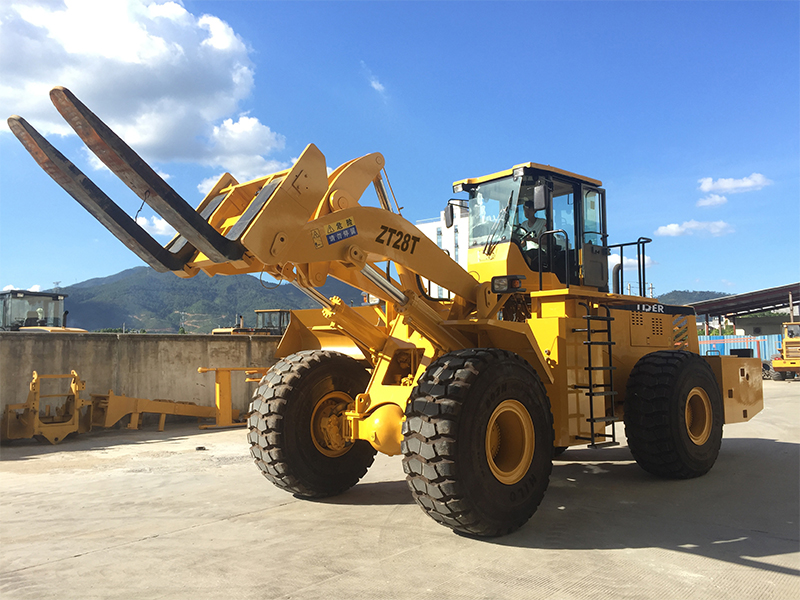

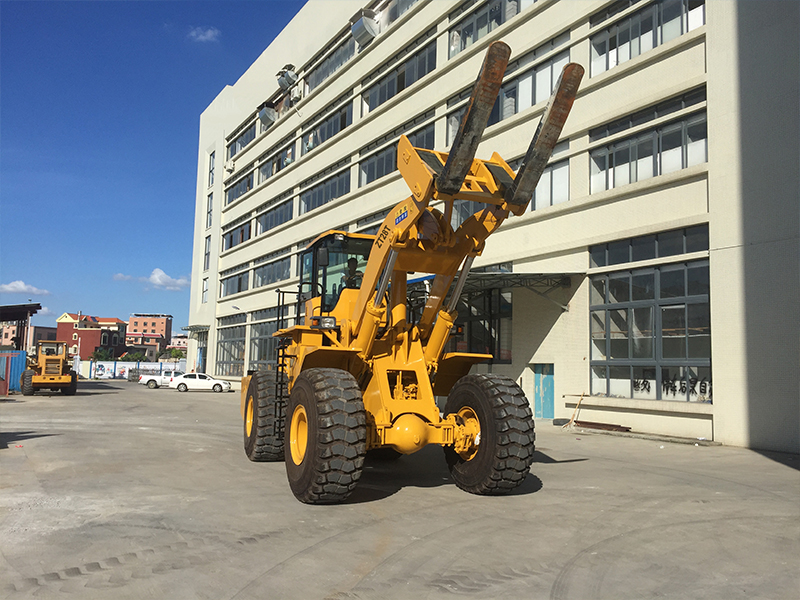

ZT28T
Rated Load: 28000 kg
Rated Power: 178 KW
TDER forklift loaders are equipped with reinforced gantry, powerful hydraulic system, high stability chassis, and powerful diesel engine, which can efficiently move heavy materials such as mining stone, steel, large machinery components, etc. TDER forklift loaders are widely used in warehouses and logistics, ports and harbors, factories and workshops, construction sites, mines, etc., and they are the rational choice for the short-distance transportation of overweight load in the industrial scenarios.
1. Industrial power configuration: Equipped with Weichai 178kW engine, the power output is stable and strong, easily cope with heavy cargo handling and high-frequency operation needs, and provide continuous power support for industrial warehousing and logistics transfer.
2. Super tonnage bearing design: 28 tons rated load capacity, designed for large cargo handling, such as heavy equipment, building materials batch transfer and other scenarios, a load to reduce the number of handling, improve work efficiency.
3. High unloading height adaptability: 3200mm maximum unloading height, accurate matching of high cargo platform, large transport vehicles, no secondary transfer can be completed high loading, shorten the logistics chain.
4. Stable chassis structure: 4000mm wheelbase and 2600mm wheelbase combination, build a stable chassis, strong anti-rolover ability during operation, with Zhongwei tires, enhance the grip, complex ground driving, loading and unloading more stable.
5. Reliable hardware components: Equipped with Yitong gearbox, Jinnan pump, Jinhu cylinder and other core components, strong coordination and wear resistance, long-term high-frequency use less failure, reduce maintenance costs and shutdown frequency.
6. Comfortable operating environment: The standard air conditioning system optimizes the comfort of the operating space, alleviates the feeling of fatigue during long hours of work. Combined with the pilot operation design, the control is easier and intuitive.
Model | ZT28T | |
Engine | Weichai | |
Raed Power | KW | 178 |
Overall Lengh | mm | 9300 |
Overall Widh | mm | 3250 |
Overall Heigh | mm | 3650 |
Max. Dumping Heigh | mm | 3200 |
Tire Model | 26.5-25 | |
Wheelbase | mm | 4000 |
Wheel read | mm | 2600 |
Dimensions Of Fork(L*W*H) | mm | 1500*250*130 |
Operaing Weigh | kg | 30000 |
Raed Loading Capaciy | t | 28 |
Max. Climbing Gradien | ° | 28 |
Raed Speed | r/min | 2200 |
raveling Speed | km/h | 0- 38 |
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail.
