TCE25
Bucket Capacity: 0.07m³
Operating Weight: 2500 kg

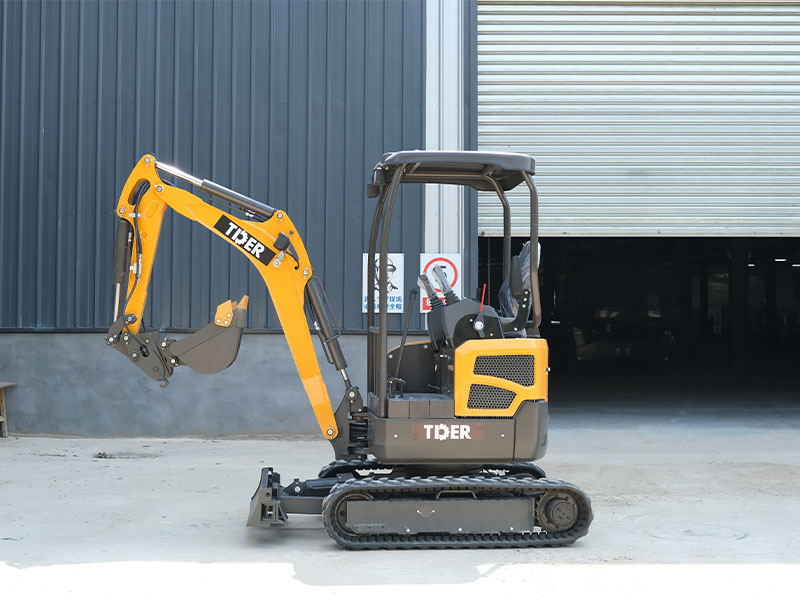

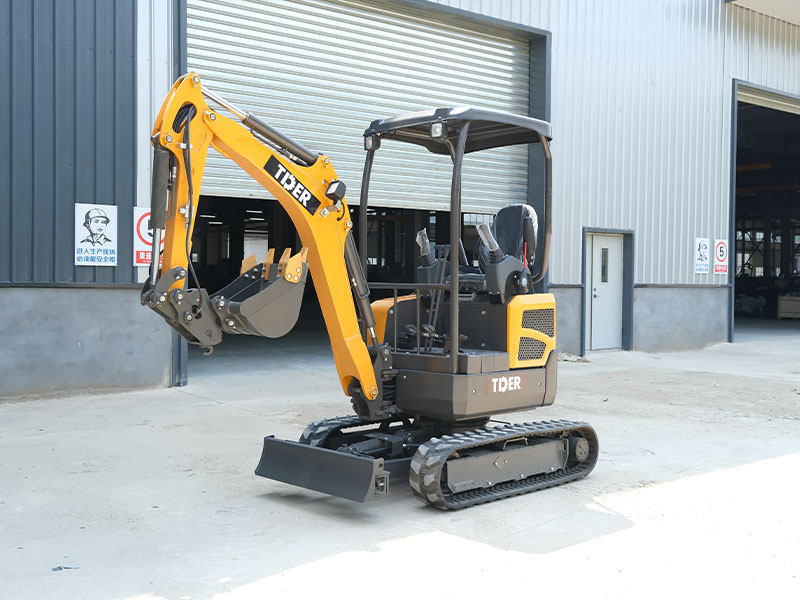

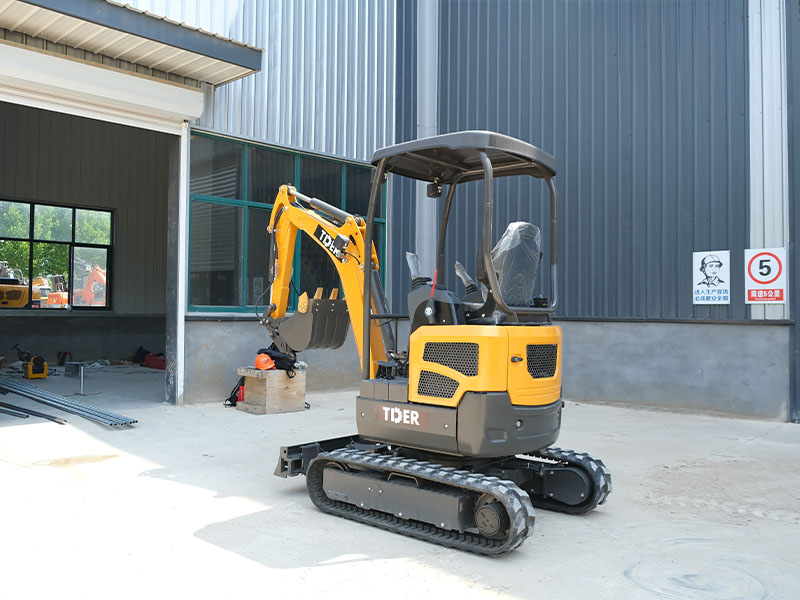

TDER Mini Crawler Excavator is specially designed for home gardens and small-scale engineering projects. It features easy operation, low noise, environmental friendliness, and a compact body. It can also be equipped with attachments for multi-functional operation, making it suitable for orchard planting, landscaping, and small municipal tasks.
1. Efficient & Eco-Friendly Power:Equipped with a 14.2 kW Kubota D1105 engine, compliant with EPA/Euro V standards. Optional 14.7 kW Perkins Euro V engine available for flexible market adaptation.
2. Precision Hydraulics with Upgrade Options:Standard setup includes LeTRO high-performance piston pump and Beifang valve. Optional upgrade to Casappa pump and Walvoil valve from Italy enhances system durability and stability.
3. Strong Digging Performance:Features a 0.07 m³ bucket with max digging depth of 2.4 m and unloading height of 3.7 m. Ideal for earthworks, pipeline laying, and landscaping.
4. Zero-Tail Swing Design:Compact tail-less structure reduces swing radius, ensuring safer and more agile operation in confined urban spaces and complex work zones.
5. Flexible Tracks for Diverse Terrain:Supports rubber or steel track options, adapting easily to both paved surfaces and rough job sites.
6. Multiple Control Modes:Optional ISO/SAE mode switch supports both left- and right-hand operation, improving control accuracy and comfort.
7. Various Bucket Sizes Available:Offers multiple bucket options from 260 mm trench bucket to 1000 mm grading bucket, meeting diverse digging and leveling needs.
8. Breaker Line Standard for Versatile Applications:Comes with standard breaker pipeline, ready for attachment installation such as hydraulic breakers for demolition and multifunctional tasks.
Performance Parameters | TCE25 | |
Operating Weight | Kg | 2500 |
Engine Model | Kubota D1105 | |
Rated Power | Kw | 14.2 |
Bucket Capacity | m³ | 0.07 |
Bucket Width | mm | 435 |
Max Digging Force | Kn | 18 |
System Working Pressure | Mpa | 21.5 |
Swing Speed | rpm | 0-9 |
Traveling Speed | km/h | 2.8 |
Gradeability | ° | 35 |
Ground Pressure | Kpa | 30 |
Max. Digging Distance | mm | 4040 |
Max. Digging Depth | mm | 2400 |
Max. Digging Height | mm | 3700 |
Max. Dumping Height | mm | 2440 |
Min. Swing Radius | mm | 1610 |
Overall Length | mm | 3555 |
Overall Width | mm | 990/1300 |
Overall Height | mm | 2290 |
Min. Ground Clearance | mm | 150 |
Track Ground Length | mm | 990 |
Track Width | mm | 230 |
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail.
