3 Wheel Electric Forklift

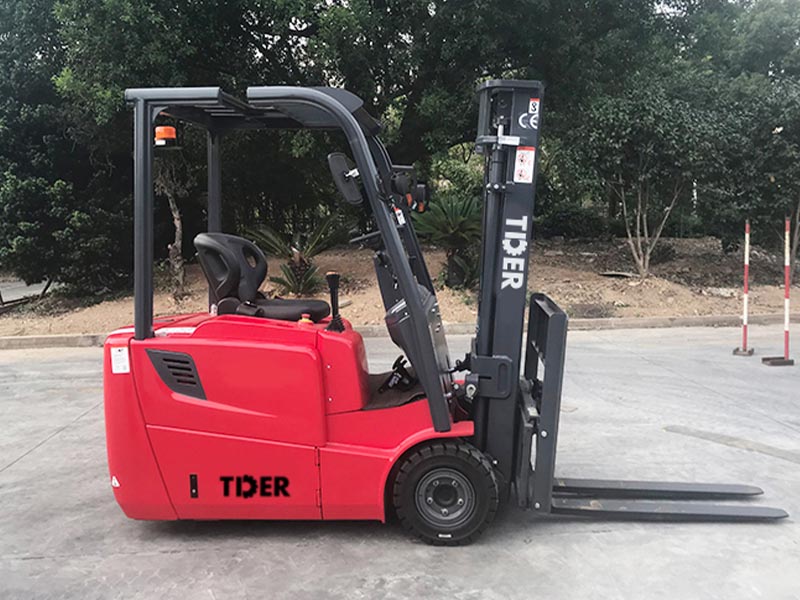

2 Tonne 3 Wheel Electric Forklift Truck


FB20S


Rated Capacity: 2000kg


Lift Height: 3000mm


PRODUCT DETAILS

1.TDER three-wheel electric forklift truck has one drive wheel in the front and two smaller wheels in the rear. This design offers increased maneuverability and a tighter turning radius, making it well-suited for navigating narrow aisles and confined spaces. Such as in warehouses with narrow aisles, retail stores, and other tight spaces.

2.EPS (Electric Power Steering) system only works when turing, sothat energy consumption can be reduced significantly;

3.Easy control of fork placement through a smooth, sensitive, progressive hydraulic system on the mast.


ModelFB20S
Power Type
Electric
Load capacity/rated loadQ(kg)2000
Load centre distanceC(mm)500
Lift heighth3(mm)3000
Mast/fork carriage tilt forward/backwardα/β(°)6°/12°
Lowered mast heighth1(mm)2025
Ground clearance
110
Length to face of forksI2(mm)2182
Overall widthb1(mm)1080
Turning radiusWa(mm)2050
Travel speed.ladenkm/h12
Tyre size,front
6.50-10-10PR
Tyre size,rear
5.00-8-8PR
Battery voltage/ capacityV/Ah48/450


With technological innovation, our product configuration and parameters will continue to change without notice;

if there is any doubt, the specific confirmation of our international trade sales shall prevail.
