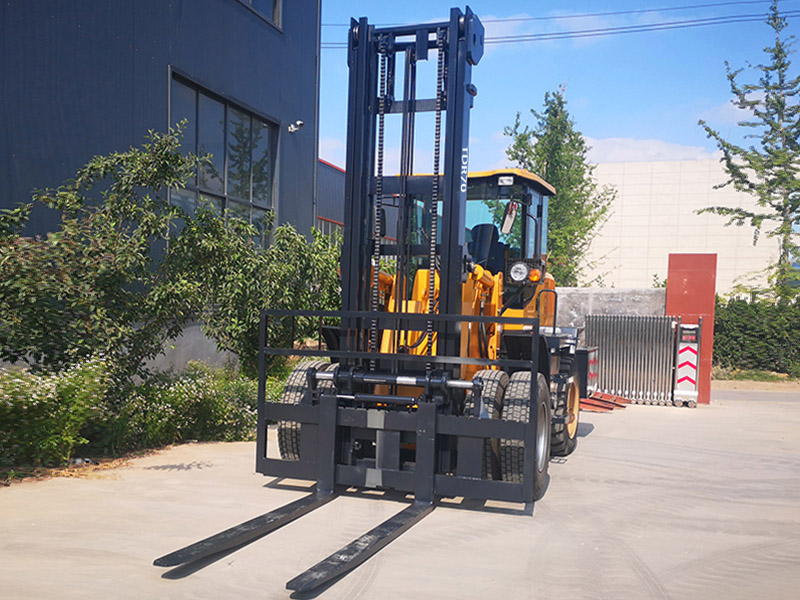

TDR70
Rated Capacity: 7000kg
Lift Height: 4000mm
1.Engine: strong power, energy saving and environmental protection, easy maintenance;
2.Cab: enclosed cab, high safety, wide venue;
3.Transmission: The automatic transmission is easy to operate and has high safety.
Model | unit | TDR70 | |
Rated load | Kg | 7000 | |
Load center distance | mm | 600 | |
Lifting height | mm | 4000 | |
Gantry tilt angle(forward/backward tilt) | ° | 6°/12° | |
Maximum travel speed | Km/h | 30 | |
Full load grade | ﹪ | 20 | |
Self weight | Kg | 9000 | |
Track(front/rear) | mm | 1600 | |
Wheelbase | mm | 2300 | |
Tire | front | mm | 4×10.0R20 |
rear | mm | 2×16/70-24 | |
Dimensions (length × width × height) | mm | 4500×2100×2800 | |
Full load lifting speed | mm/s | 390 | |
Minimum turning radius | mm | 4800 | |
Minimum ground clearance | mm | 270 | |
Engine | model | WP6G125E22 | |
Rated power/speed | Kw/r/min | 92/2200 | |
Battery | Voltage | V | 24 |
Capacity | Ah | 100 | |
Drive axle | Dedicated wheel side deceleration bridge | Four-wheel drive | Pneumatic clamp brake |
Transmission | Hydraulic | ||
Working system | Pilot operating system | ||
Cabin | Sealed cab with sound system, fan / open cockpit |
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail.
