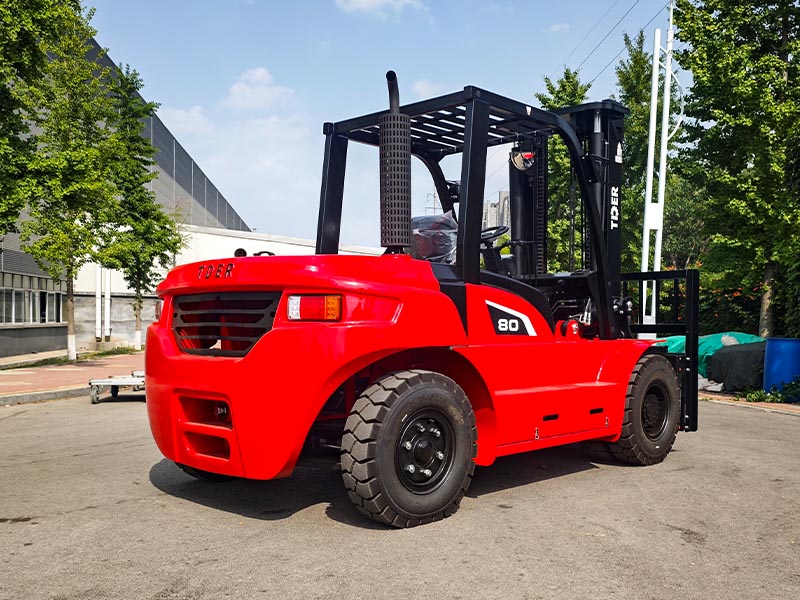

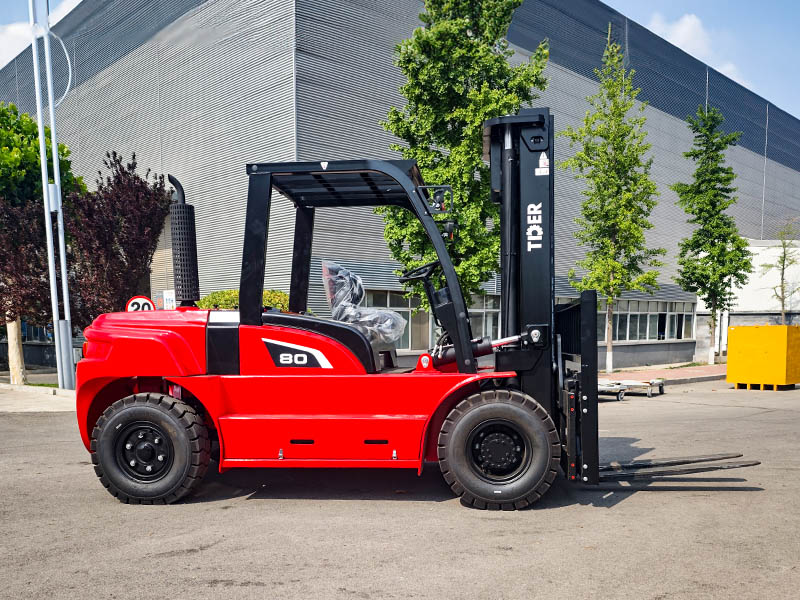

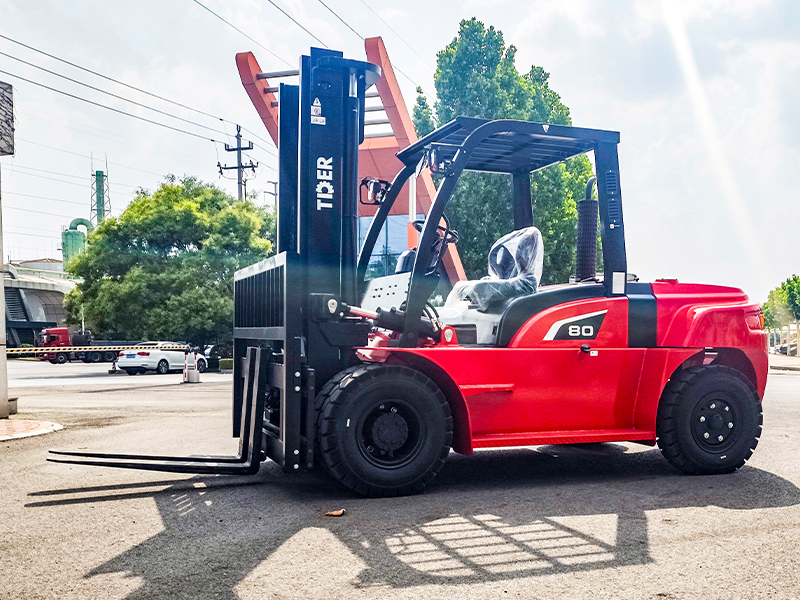

TDER P Series Diesel Forklift, as TDER's premium model, covers a wide range of capacities from 2 to 10 tons, designed for heavy-duty operations and tough working conditions. With exceptional performance and stability, they have become the ideal choice for heavy-duty tasks across various industries. The core components of this series are sourced from internationally renowned brands and are manufactured through TDER's high-standard automated production line, ensuring high quality and reliability for each unit. Key components such as the air purification system, engine cover, and steering axle have undergone significant upgrades, further improving operational efficiency and safety.

The P-Series Diesel Forklifts offer strong load capacity and long service life, making them ideal for operation in extreme environments such as high temperatures, dust, and humidity. Whether on construction sites, in mines, ports, or large warehouses, the P-Series provides reliable support and outstanding performance, making it the preferred choice for demanding customers.

1.Power System: Equipped with a 85KW high-power common rail turbocharged intercooler engine from Xichai, offering strong power and reliable quality. It is fitted with a cast iron air filter and an independent high-position intake channel, featuring a two-stage air purification design to promote full diesel combustion, reduce carbon buildup, and extend engine lifespan.

2.Efficient Transmission Configuration: The vehicle is equipped with a Zhongchai hydraulic torque converter transmission, and the large-capacity torque converter can carry greater torque. The transmission is reinforced internally to enhance overall load-bearing capacity, improve transmission efficiency, and effectively increase work efficiency, while extending the service life of the transmission.

3.Reliable Brake Protection: The fully hydraulic brake system provides strong braking power. It uses a high-performance, large-capacity diaphragm accumulator, offering high emergency braking reliability and ensuring forklift operation safety.

4.Sturdy and Durable Structure: The stamped engine hood design enhances overall vehicle sturdiness. The high-strength cast steel axle combined with wide-base tires offers a strong structure and excellent load-bearing capacity. The standard dual wheels, with a wider cross-section, provide superior shock absorption and anti-slip effects, enhancing driving stability during forklift operation.

5.Flexible and Precise Steering: The new steering system features low operating force, allowing for flexible and smooth turns with high reliability. All parts of the axle are precisely manufactured, offering good sealing performance and long service life with minimal leakage.

6.Wide Operational View: The wide-view reinforced mast uses a C-type steel structure with a widened design and LED lights to provide the driver with a broader view, making it easier to observe the working environment. The mast also has high load-bearing strength, improving operational safety.

7.Convenient Control Experience: The ergonomic design of the small-diameter steering wheel offers comfortable handling and effectively reduces operator fatigue. The centrally located electrical switches, combined with the integrated control valve operation handle, make operation faster and more convenient.

8.Intelligent Real-Time Monitoring: Featuring a digital step-type instrument panel and CAN bus communication technology, fault displays are clear and specific. It allows for real-time monitoring of the entire machine’s status, with excellent human-machine interaction. In case of a fault, timely alarms are triggered, making it easy to address issues quickly, ensuring a safer driving experience.

9.High-Quality Manufacturing Process: The overhead guard coating uses electrophoresis technology combined with robotic welding, resulting in strong weld seams and a more stable and reliable machine. The sheet metal mold is formed in one go, ensuring smooth lines and good anti-collision and anti-deformation performance. The surface is treated with acid pickling, phosphating, rust removal, and baking paint processes, offering excellent corrosion resistance, rust prevention, and oxidation resistance, ensuring higher residual value over time.

10.Convenient Maintenance Design: The electrical system adopts an H-type layout, with neat and aesthetically pleasing wiring, short and without unnecessary bends, ensuring high electrical conductivity. The central electrical box features an integrated design with fuses and relays neatly arranged and spares available, located inside the engine hood for excellent waterproof and dustproof performance, reliable connections, and easy maintenance.

11.Hydraulic System: The entire vehicle adopts a fully hydraulic load-sensing system, offering faster response speed. The hydraulic pipelines use 24° conical seals with O-ring double seals, reducing the possibility of leakage and extending the life of hydraulic components.

With technological innovation, our product configuration and parameters will continue to change without notice;

if there is any doubt, the specific confirmation of our international trade sales shall prevail.

Model		FD80
Rated Capacity	kg	8000
Load Center	mm	600
Battery(Voltage/Capacity )	V/Ah	24/100
Maximum lifting height	mm	3000
Free lifting height	mm	190
Tiltiing angle (up/down)	°	6/12
Lifting speed (Full/No load)	mm/s	442/484
Lowered speed(Full/No load)	mm/s	400/360
Travel speed(Full/No load)	km/h	25/30
Turning radius	mm	3700
Ascend slope ability(Full/No load)	%	20/25
Maximum hook traction	kN	70
Weight	kg	9900
Overall length (without fork)	mm	3830
Overall width of frame	mm	2000
Mast lowered height	mm	2560
Overhead guard height	mm	2510
Shelf height	mm	1500
Maximum lifting height	mm	4490
Minimum ground clearance	mm	260
Wheelbase	mm	2500
Front wheel track	mm	1470
Rear wheel track	mm	1710
Front Overhang	mm	650
Rear Overhang	mm	740
Front		8.25-15-14PR
Rear		8.25-15-14PR
Fork Size	mm	120015070
Model		XiChai
Rated power	kW/rpm	85/2200
Maximum torque	N.m/rpm	500/1600
Number of cylinders		4
Displacement	L	4.29
