PRODUCT DETAILS

1.Intelligent Starting System, forklift hanging gear start prevent function improves the operation safety and longer gearbox service life;

2.Ergonomic design, rational operation device layout, equipped with adjustable seats and steering wheel;

3.Electric one button parking brake, hydraulic power drive, seperate design between the parking brake and the driving brake provides a more reliable and safety parking brake.

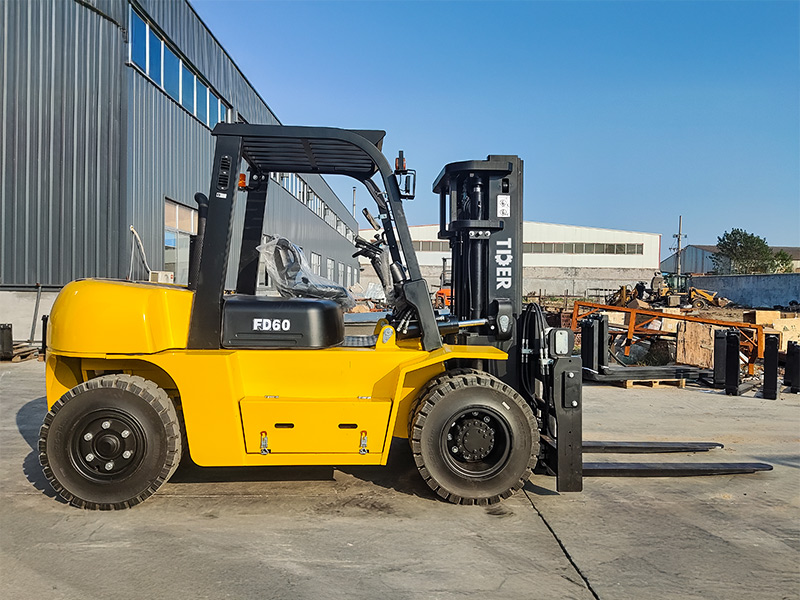

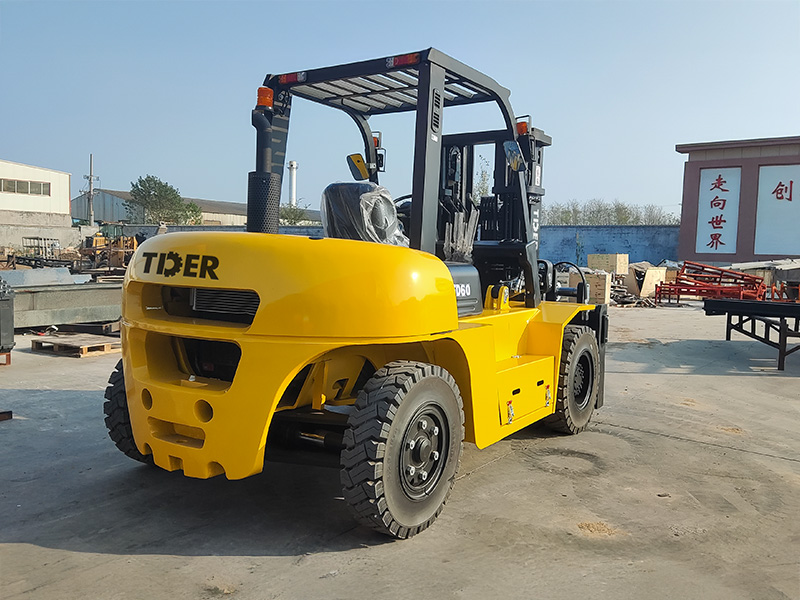

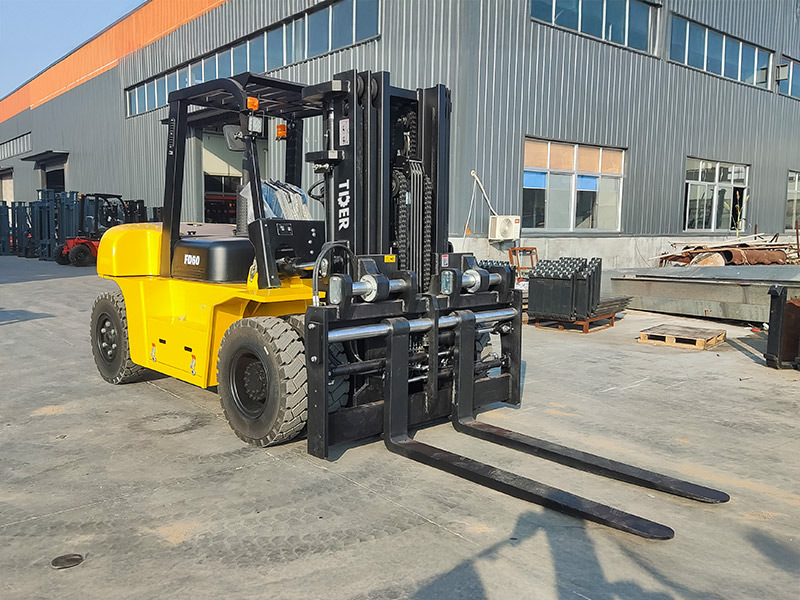

Model				FD60
Power Type				Diesel
Rated Capacity			kg	6000
Load Centre			mm	600
Lift Height			mm	3000
Mast Tilt Angle		F/R	Deg	6°/12°
Front Overhang (Wheel center to fork face)			mm	590
Ground Clearance（Bottom of mast）			mm	200
Length to face of fork(Without fork)			mm	3440
Overall Width			mm	2010
Mast Lowered Height			mm	2500
Turning Radius (outside)			mm	3250
Speed Travel (Full load)			km/h	30
Tire		Front	mm	500
		Rear	mm	8.25-15-14PR
Wheelbase			mm	2250
Battery Voltage/Capacity			V/Ah	(12/80) x 2
Engine	Model			6BG1-02
	Manufacture			ISUZU
	Rated output/r.p.m.		kw	82.4/2000
	Rated torque/r.p.m.		N·m	416.8/1500
	No.of Cylinder			6
	Bore×Stroke		mm	105×125
	Displacement		cc	6494
	Fuel Tank Capacity		L	125

With technological innovation, our product configuration and parameters will continue to change without notice;

if there is any doubt, the specific confirmation of our international trade sales shall prevail.
