Diesel Forklift

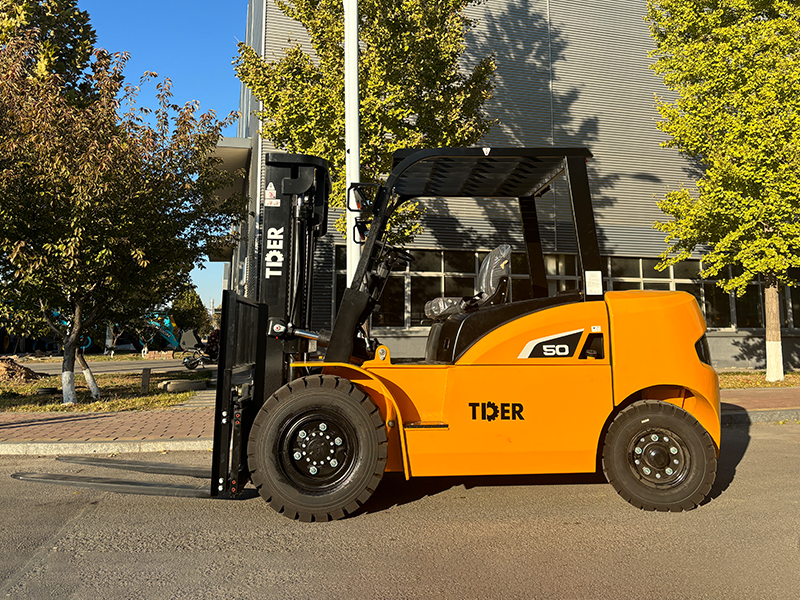

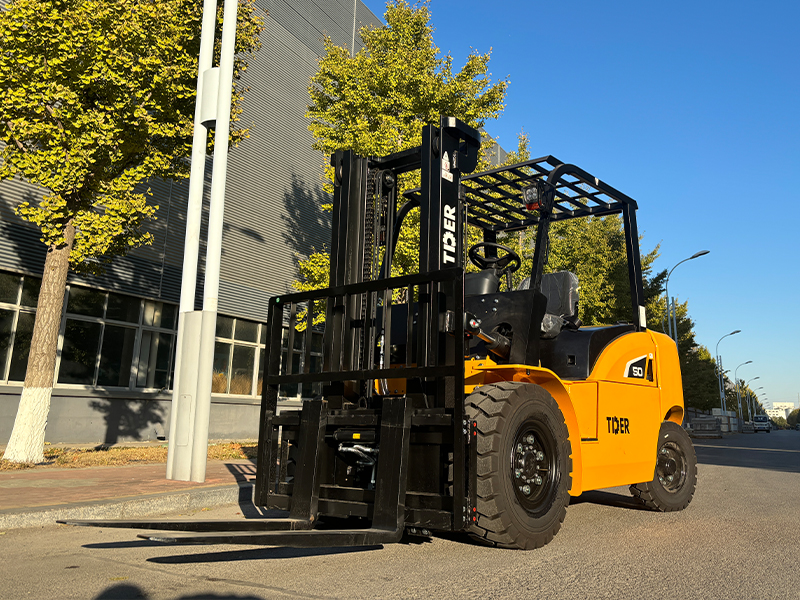

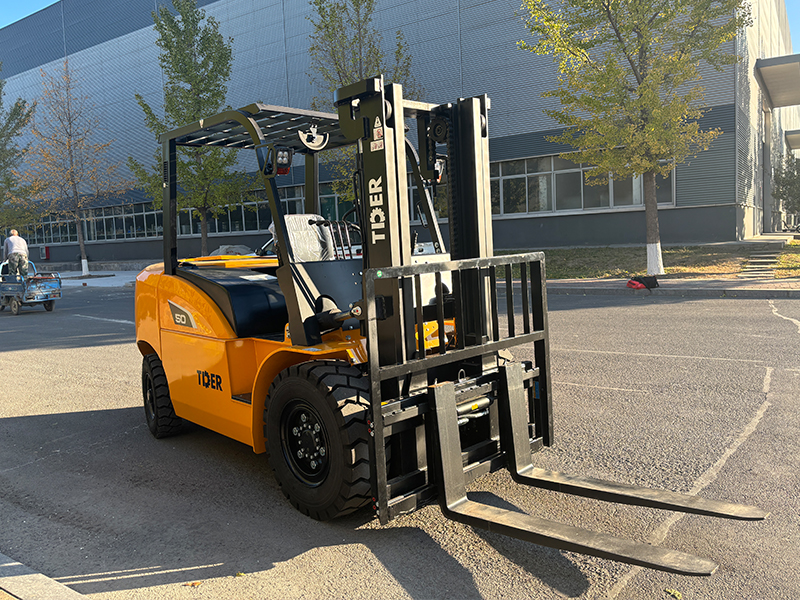

P Series 5 Tonne Diesel Forklift Truck


FD50


Rated Capacity:5000kg


Lift Height: 3000mm


PRODUCT DETAILS

TDER P Series Diesel Forklift, as TDER's premium model, covers a wide range of capacities from 2 to 10 tons, designed for heavy-duty operations and tough working conditions. With exceptional performance and stability, they have become the ideal choice for heavy-duty tasks across various industries. The core components of this series are sourced from internationally renowned brands and are manufactured through TDER's high-standard automated production line, ensuring high quality and reliability for each unit. Key components such as the air purification system, engine cover, and steering axle have undergone significant upgrades, further improving operational efficiency and safety.

The P-Series Diesel Forklifts offer strong load capacity and long service life, making them ideal for operation in extreme environments such as high temperatures, dust, and humidity. Whether on construction sites, in mines, ports, or large warehouses, the P-Series provides reliable support and outstanding performance, making it the preferred choice for demanding customers.


1.Power System: Equipped with a new diesel engine as standard, offering strong power, environmental friendliness, and fuel efficiency. It comes with a cast iron air filter and an independent high-position intake channel, featuring a two-stage air purification design that promotes full combustion of diesel, reduces carbon buildup, and extends engine lifespan.

2.Structural Design: The stamped engine hood enhances the overall vehicle sturdiness. The maintenance-free, cast integral steering axle features a tapered bearing design, offering excellent impact resistance and longer service life. It is equipped with front inflatable tires, providing strong shock absorption.

3.Electrical System: The electrical system is laid out in an H-type configuration, with neatly arranged wiring and easy maintenance. Electrical components are securely fixed, ensuring high conductivity and efficiency.

4.Hydraulic System: The vehicle is equipped with 24° conical seal hydraulic pipelines, meeting construction vehicle standards. After the vehicle is fully tested, secondary filtered hydraulic oil is used to improve cleanliness, extending the life of hydraulic components by 20%.

5.Operational Comfort: The electrical switches are centrally located, and the integrated control valve operation handle improves convenience. The increased legroom, lower step height for easy boarding, and non-slip steps ensure high safety when getting on and off. Ergonomically designed to reduce operator fatigue.

6.Intelligent Configuration: Standard USB fast-charging interface and phone holder. It uses a digital step-type instrument panel and CAN bus communication technology to monitor the entire machine's status in real-time. It also features a fault alarm function, allowing for quick problem resolution and enhanced driving safety.

7.Wide Operational View: The wide-view reinforced mast, made from CJ-type steel structure, features a widened design and LED lights to provide the driver with a more expansive view, making it easier to observe the working environment. The mast also has high load-bearing strength, improving operational safety.



Model
FD50
Rated Capacitykg5000
Load Centermm600
Battery(Voltage/Capacity  )V/Ah12/120
Maximum lifting heightmm3000
Free lifting heightmm160
Tiltiing angle (up/down)°6/12
Lifting speed (Full/No load)mm/s440/500
Lowered speed(Full/No load)mm/s430/350
Travel speed(Full/No load)km/h22/23
Turning radiusmm2930
Ascend slope ability(Full/No load)%20/21
Maximum hook tractionkN29
Weightkg6850
Overall length  (without fork)mm3220
Overall width of framemm1500
Mast lowered heightmm2275
Overhead guard heightmm2280
Shelf heightmm1280
Maximum lifting heightmm4230
Minimum ground clearancemm169
Wheelbasemm2100
Front wheel trackmm1195
Rear wheel trackmm1070
Front Overhangmm560
Rear Overhangmm560
Front
300-15-18PR
Rear
7.00-12-12PR
Fork Sizemm1220*150*50
Model
XinChai
Rated powerkW/rpm60/2200
Maximum torqueN.m/rpm300/1600-1800
Number of cylinders
4
DisplacementL3.47


With technological innovation, our product configuration and parameters will continue to change without notice;

if there is any doubt, the specific confirmation of our international trade sales shall prevail.
