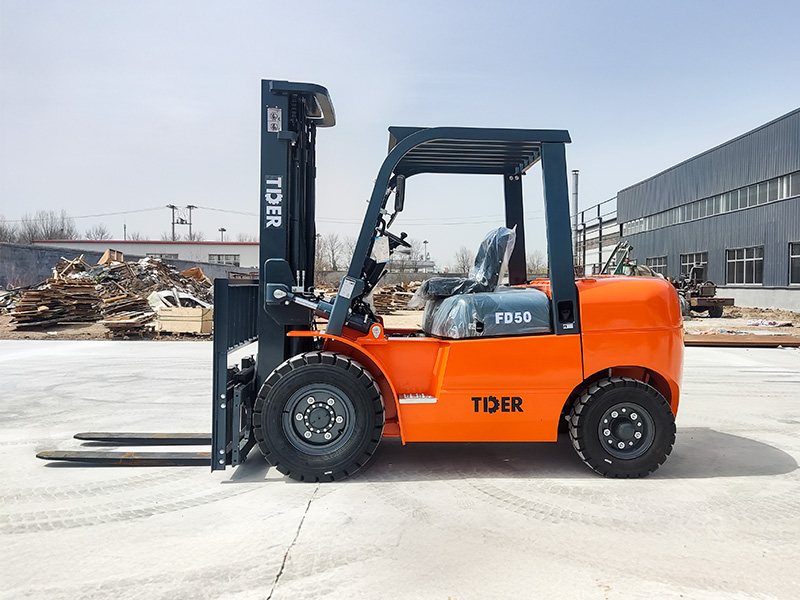

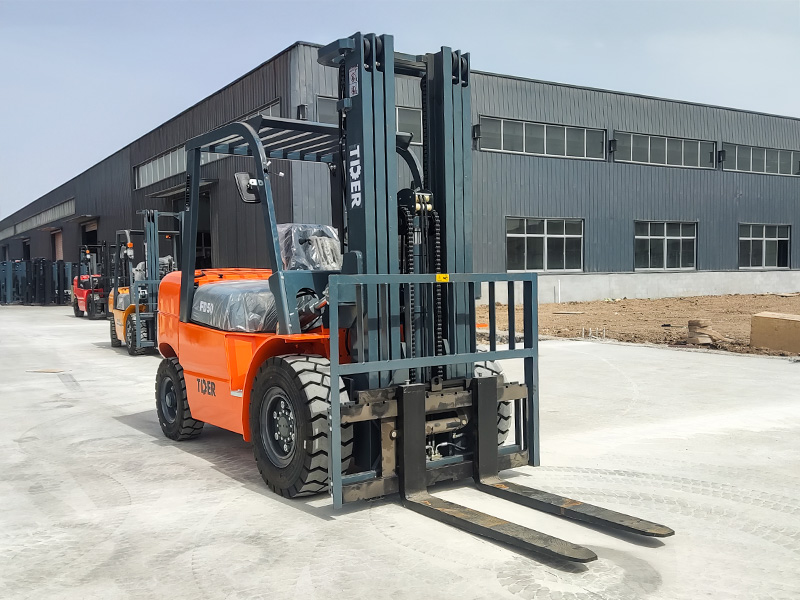

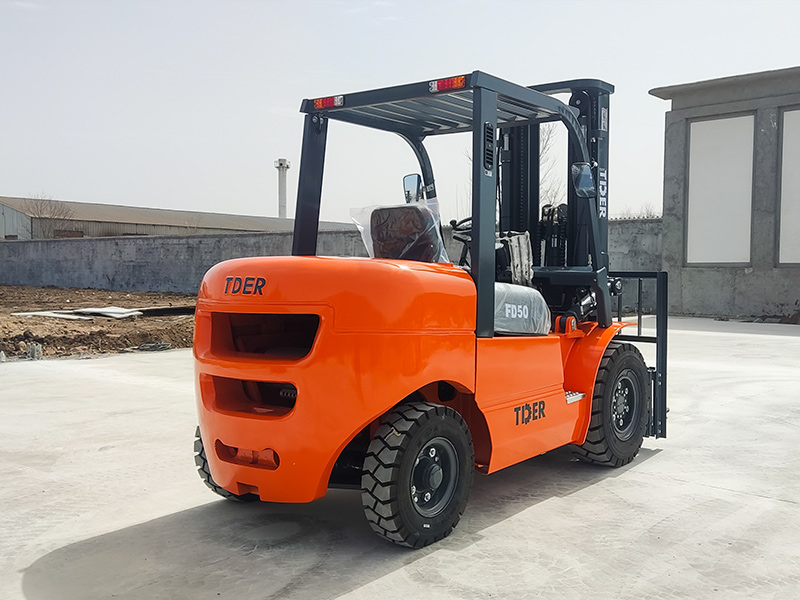

FD50
Rated Capacity: 5000kg
Lift Height: 3000mm
1.Intelligent Starting System, forklift hanging gear start prevent function improves the operation safety and longer gearbox service life;
2.Ergonomic design, rational operation device layout, equipped with adjustable seats and steering wheel;
3.Electric one button parking brake, hydraulic power drive, seperate design between the parking brake and the driving brake provides a more reliable and safety parking brake.
Model | FD50 | |||
Power Type | Diesel | |||
Rated Capacity | kg | 5000 | ||
Load Centre | mm | 500 | ||
Lift Height | mm | 3000 | ||
Mast Tilt Angle | F/R | Deg | 6°/12° | |
Front Overhang (Wheel center to fork face) | mm | 579 | ||
Ground Clearance(Bottom of mast) | mm | 150 | ||
Length to face of fork(Without fork) | mm | 3260 | ||
Overall Width | mm | 1460 | ||
Mast Lowered Height | mm | 2270 | ||
Turning Radius (outside) | mm | 2910 | ||
Speed Travel (Full load) | km/h | 25 | ||
Tire | Front | mm | 300-15-18PR | |
Rear | mm | 7.00-12-12PR | ||
Wheelbase | mm | 2100 | ||
Battery Voltage/Capacity | V/Ah | (12/80) x 2 | ||
Engine | Model | 6BG1-02 | ||
Manufacture | ISUZU | |||
Rated output/r.p.m. | kw | 82.4/2000 | ||
Rated torque/r.p.m. | N·m | 416.8/1500 | ||
No.of Cylinder | 6 | |||
Bore×Stroke | mm | 105×125 | ||
Displacement | cc | 6494 | ||
Fuel Tank Capacity | L | 125 |
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail.
