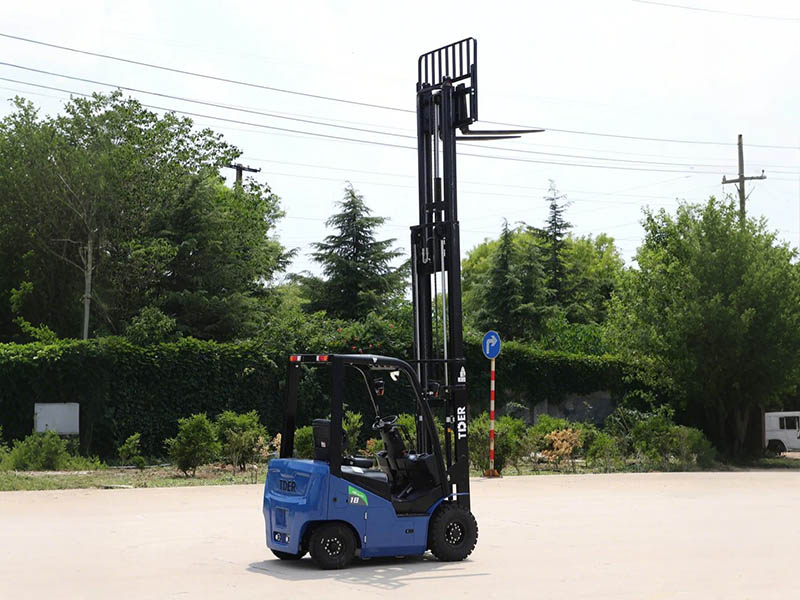

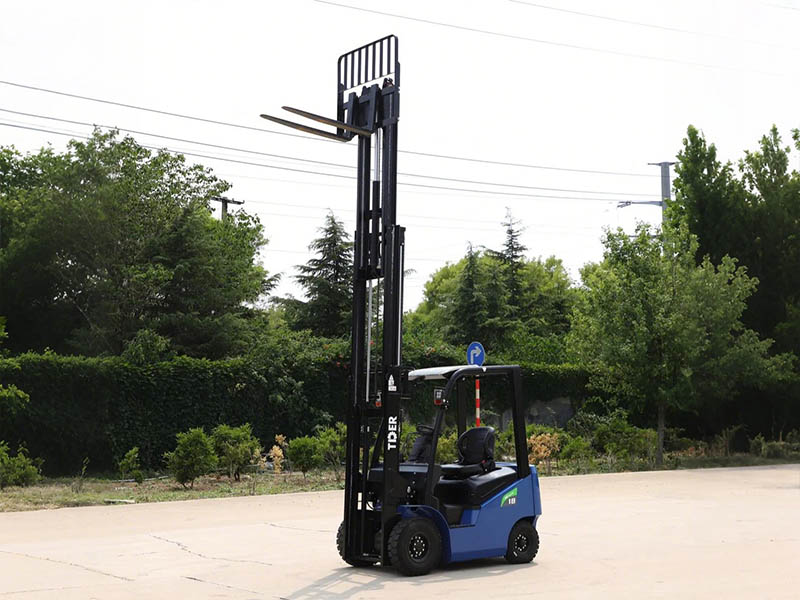

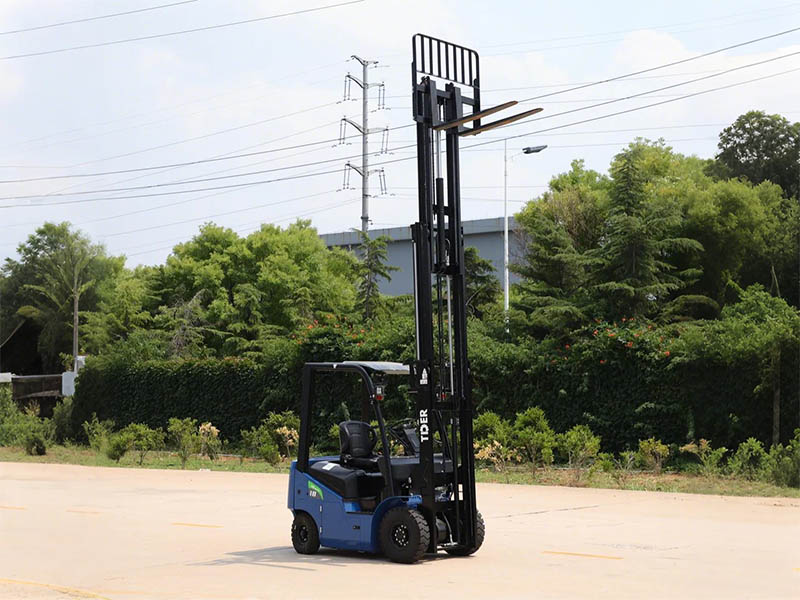

FB18
Rated Capacity: 1800kg
Lift Height: 3000mm
TDER E Series Lithium Forklift is an advanced model that achieves the ideal balance between high performance and smart eco-friendliness. This series combines the powerful output close to that of a diesel forklift with the clean, low-noise advantages of an electric forklift, designed specifically for applications with higher standards and more complex working conditions. Compared to the K series, the E series offers a comprehensive enhancement in overall performance, making it especially suitable for high-intensity tasks requiring frequent climbing and heavy loads.
TDER E series features a short wheelbase design, resulting in a smaller turning radius, significantly improving operational flexibility in narrow aisles. The entire series is manufactured using TDER's high-standard automated production line, ensuring product consistency and factory quality. Equipped with lithium iron phosphate (LiFePO4) batteries, the E series offers a much longer lifespan than traditional lead-acid batteries, supporting high-frequency, multi-shift operations with stable performance and low maintenance costs. It is the ideal solution for those seeking high performance and low emissions.
1.Well-designed protection: the stamping roof protector is made of 4MM thick plate, molded in one go, with a solid structure, effectively preventing falling objects and rain; the whole vehicle has multi-layer protection for electrical parts, and the power battery has IP54 protection level, so it is fearless to operate in rainy days.
2. Intelligent security: Intelligent start system adopts two levels of electric lock energization and PIN password or swipe card to prevent misoperation; the seat with sensing function, automatic power off from the seat to cut off dangerous operation.
3. Wide operating field of vision: new reinforced wide field of vision gantry, wider design increases the driving field of vision by 20%, and adopts customized shaped steel of Shan Gang, which is sturdy and has strong load-bearing capacity.
4. Comfortable operating space: the operating space of cab room is increased by 50%, low-torque steering gear with small-diameter adjustable steering wheel, light steering; non-slip pedals and welded large handles, climbing safety.
5. Efficient power system: the power battery adopts mature lithium iron phosphate core module, charging and discharging efficiency of over 90%, 1.5-2 hours of fast charging, capacity retention rate of over 80%, with leakage protection.
6. Advanced transmission system: direct-drive motor reduces energy loss, fast starting speed, and energy utilization is increased by more than 30%; load-sensing hydraulic system prioritizes steering, fast response, light manipulation, and double sealing reduces leakage.
7. Maintenance-free parts: Maintenance-free steering axle adopts cast one-piece design and tapered bearings, strong impact resistance, and the buffer block design in the contact area of the body enhances comfort and prolongs life.
8. Convenient Battery Replacement: The drawer-type battery pack is arranged underneath the chassis and can be withdrawn from the side, which improves the convenience of maintenance and quick power change, effectively reduces the center of gravity and improves the overall stability.
Model | FB18 | |
Power form | electric | |
Voltage platform | V | 80 |
Operation form | Seated | |
Rated load | kg | 1800 |
Rated Load Center Distance | mm | 500 |
Front Overhang | mm | 415 |
Wheelbase | mm | 1410 |
Weight (with/without battery) | kg | 3000/2830 |
Fully loaded axle load (front/rear) | kg | 4310/490 |
Unladen axle load (front/rear) | kg | 1200/180 |
Tire type (front/rear) | pneumatic tire | |
Number of wheels (x=driven) | 2x/2 | |
Front Tire Size | 5.00-8-8PR | |
Rear Tire Size | 5.00-8-8PR | |
Front wheelbase | mm | 925 |
Rear wheelbase | mm | 930 |
Mast tilt angle (front/rear) | ° | 6/12 |
Mast retraction height | mm | 1985 |
Free lift height | mm | 135 |
Maximum lifting height | mm | 3000 |
Maximum height during operation | mm | 4045 |
Height of roof rack | mm | 2160 |
Overall length (without forks) | mm | 2160 |
Overall width | mm | 1130 |
Fork size | mm | 920*100*35 |
Outside fork spacing (min/max) | mm | 210-1025 |
Mast Ground Clearance (unloaded) | mm | 100 |
Minimum Ground Clearance | mm | 85 |
Minimum turning radius | mm | 1960 |
Travel speed (fully loaded/unloaded) | km/h | 14/15 |
Lifting speed (full/no load) | mm/s | 300/480 |
Lowering speed | mm/s | 520/480 |
Maximum tractive effort | N | 11000 |
Climbing speed (full/no load) | % | 15/20 |
Traveling brake | hydraulic | |
Parking brake | Mechanical | |
Rated power of traction motor | kW | 12AC |
Fuel pump motor rating | kW | 12AC |
Battery type | Li-ion | |
Standard battery voltage/capacity | V/Ah | 80//125 |
Hydraulic system working pressure | MPa | 17.5 |
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail.
