LPG&Gasoline Forklift

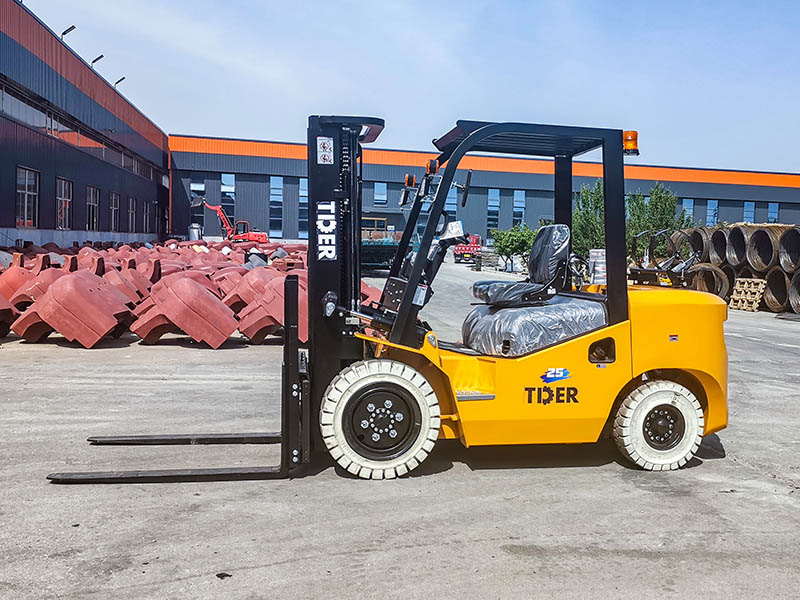

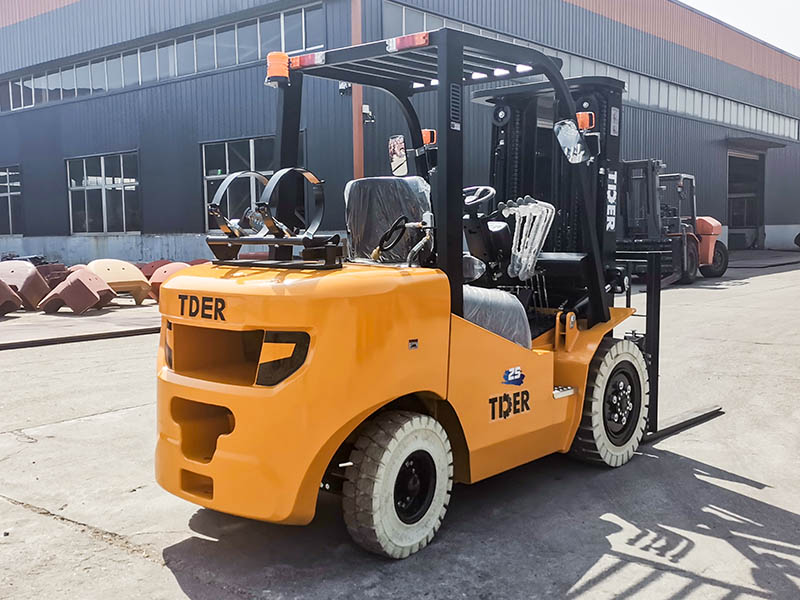

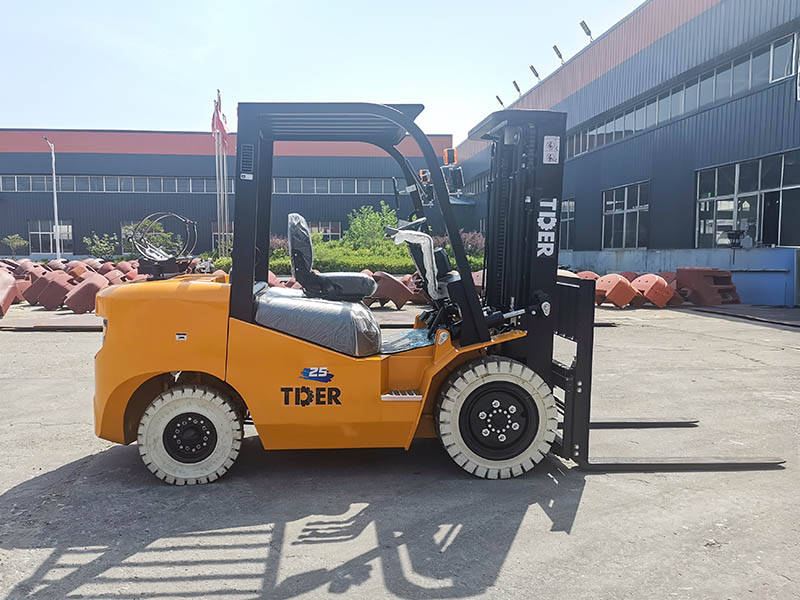

B Series 2.5 Ton LPG/Gasoline Forklift Truck


FG25


Rated Load:2500kg


Lifting Height:3000mm


PRODUCT DETAILS

TDER LPG/Gasoline Forklift combines the structural strength of diesel models with cleaner, quieter LPG power. Equipped with the GCT K25 engine, it delivers stable performance and lower emissions, making it ideal for indoor or semi-enclosed environments.

The robust vehicle structure features a wide-view mast and an integrated cast steering axle for reliable durability. The hydraulic system employs tapered seals and filtered oil to extend service life, while the electrical system's rational wiring facilitates easier maintenance. Operational design prioritizes ergonomics, offering comfortable handling with low step height and ample space. Smart features include digital instrumentation, USB charging, and fault alerts. The TDER LPG/Gasoline Forklift represents an ideal choice balancing efficiency and environmental responsibility.


1. Eco-efficient Dual-fuel Power:Equipped with the renowned Nissan K25 engine, supporting LPG and gasoline switch for strong power and cleaner emissions, ideal for indoor and semi-enclosed operations.

2. Intelligent Electro-hydraulic Transmission:Optional transmissions from Zhongnan, Zhongchai, or Quanchai ensure smooth shifting and fast response, maintaining high efficiency under heavy-duty conditions.

3. Robust In-house Drive Axle:TDER’s self-developed heavy-duty drive axle delivers superior load capacity and impact resistance, ensuring stability and durability for long-term operations.

4. Premium Tire Configurations:Standard Chaoyang and Advance pneumatic tires provide strong grip and wear resistance for varied terrains, with solid and eco tires available for different needs.

5. Comfortable & Safe Ergonomic Design:Spacious cabin with ergonomic seat reduces operator fatigue; clear LCD display and bright LED lighting improve ease of operation and safety in low-light environments.

6. Flexible Counterweight Options:Standard composite counterweight with optional cast-iron counterweight enhances stability while maintaining agility, meeting diverse working conditions.


Model
FG25
Rated lifting loadkg2500
Load center distancemm500
Lifting heightmm3000
Free lifting heightmm150
Overall length (With / Without fork)mm3646/2576
Widthmm1170
Overhead guard heightmm2070
Wheelbasemm1600
Minimum ground clearancemm110
Mast tilt angle (front/rear)%6° /12°
Minimum turning radius (outer side)mm2240
Minimum right angle aisle widthmm3970
Fork sizemm1070*100*45
Maximum working speed(load/unload)km/h17/19
Maximum lifting speed(load/unload)mm/s530/550
Maximum gradeability(load/unload)%20/21
Forklift weightkg3700
Engine model
GCT-K25
Transmission
Electro-Hydraulic
Tire Brand
Chaoyang/Advance
Tire no. (before)
7.00*12-12PR
Tire no. (after)
6.00*9-10PR

With technological innovation, our product configuration and parameters will continue to change without notice;

if there is any doubt, the specific confirmation of our international trade sales shall prevail.
