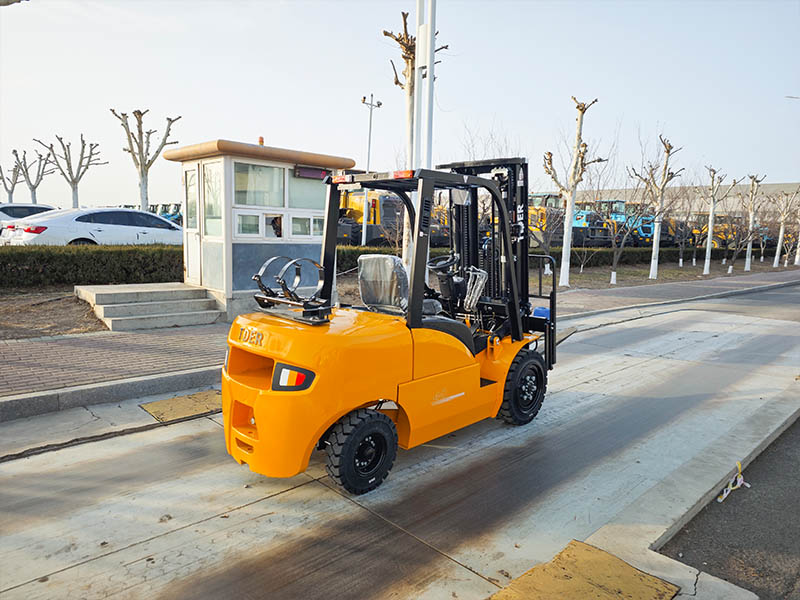

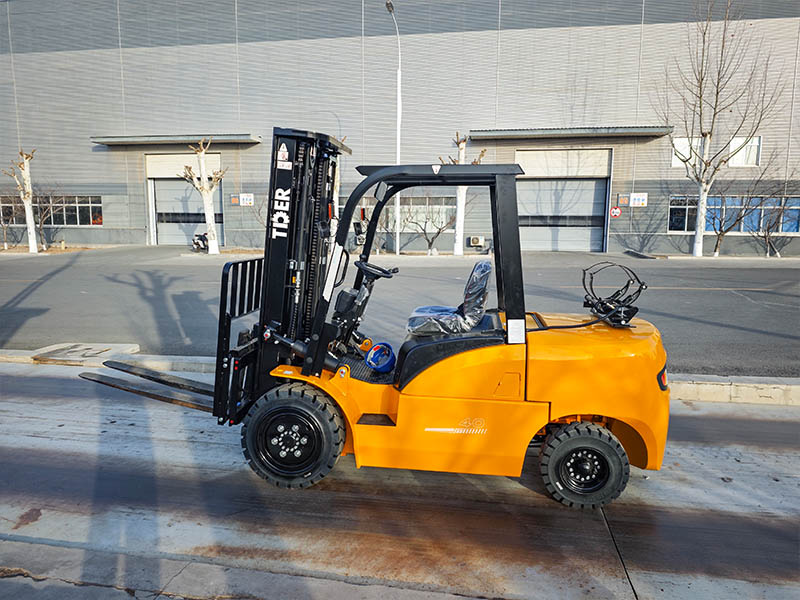

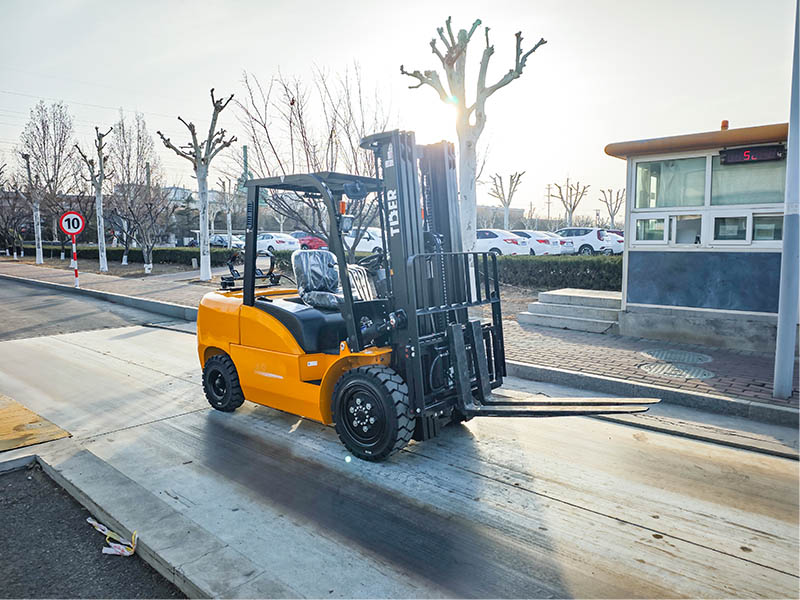

FG40
Rated Load:4000kg
Lifting Height:3000mm
TDER LPG/Gasoline Forklift combines the structural strength of diesel models with cleaner, quieter LPG power. Equipped with the GCT K25 engine, it delivers stable performance and lower emissions, making it ideal for indoor or semi-enclosed environments.
The robust vehicle structure features a wide-view mast and an integrated cast steering axle for reliable durability. The hydraulic system employs tapered seals and filtered oil to extend service life, while the electrical system's rational wiring facilitates easier maintenance. Operational design prioritizes ergonomics, offering comfortable handling with low step height and ample space. Smart features include digital instrumentation, USB charging, and fault alerts. The TDER LPG/Gasoline Forklift represents an ideal choice balancing efficiency and environmental responsibility.
1. New-generation efficient LED lighting system with redesigned reflector reduces energy consumption, enhances illumination, and extends service life.
2. Optional dual-layer iron air filter with tangential air intake, double sealing, and safety element provides superior filtration, lower intake resistance, and excellent corrosion and vibration resistance.
3. Equipped with the reliable Nissan GCT K25 engine, delivering powerful and stable performance for smooth and efficient operation. The dual-fuel design supports LPG and gasoline, ensuring cleaner emissions and better fuel economy. With a robust structure and easy maintenance, downtime is minimized while productivity is improved—ideal for intensive applications.
4. Streamlined body design with one-time pressed sheet metal ensures smooth lines, high impact and deformation resistance. Surfaces are treated with pickling and phosphating, combined with baking paint technology for effective anti-corrosion, anti-rust, and anti-oxidation. Multiple color options are available to meet personalized customization, improving durability and resale value.
5. Panoramic rearview mirror provides a wider and clearer field of vision, significantly reducing blind spots and improving operational safety. It helps operators work confidently in tight and complex environments while minimizing accident risks.
6. Clear digital instrument panel, ergonomic control levers, adjustable steering wheel, and optional Toyota seat with a well-arranged console ensure comfortable operation and smooth handling, even during long working hours.
7. High-strength plate chain combined with precision-machined sprockets ensures stable and smooth lifting with extended service life. The chain is treated with anti-rust protection and equipped with a protective cover, enhancing safety and reliability for intensive, high-frequency industrial operations.
Model | FG40 | |
Power Type | LPG&Gasoline | |
Rated Capacity | kg | 4000 |
Load Center | mm | 500 |
Battery(Voltage/Capacity) | V/Ah | 12/80 |
Maximum lifting height | mm | 3000 |
Free lifting height | mm | 130 |
Tiltiing angle (up/down) | ° | 6/12 |
Lifting speed (Full/No load) | mm/s | 420/440 |
Lowered speed(Full/No load) | mm/s | 330/310 |
Travel speed(Full/No load) | km/h | 18.5/19 |
Turning radius | mm | 2730 |
Ascend slope ability(Full/No load) | % | 15/20 |
Maximum hook traction | kN | 23 |
Service Weight | kg | 4850 |
Overall length (without fork) | mm | 2960 |
Overall width of frame | mm | 1230 |
Mast lowered height | mm | 2130 |
Overhead guard height | mm | 2130 |
Shelf height | mm | 1225 |
Maximum lifting height | mm | 4230 |
Minimum ground clearance | mm | 130 |
Wheelbase | mm | 1900 |
Front wheel track | mm | 1000 |
Rear wheel track | mm | 970 |
Front Overhang | mm | 480 |
Rear Overhang | mm | 580 |
Front | 28x9-15-14PR | |
Rear | 6.50-10-10PR | |
Fork Size(L*W*T) | mm | 1220*122*45 |
Engine Model | GCT K26 | |
Rated power | kW/r | 37.4/2304 |
Maximum torque | N.m/r | 176.5/1604 |
Number of cylinders | 8 | |
Displacement | L | 6.49 |
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail.
