LPG&Gasoline Forklift

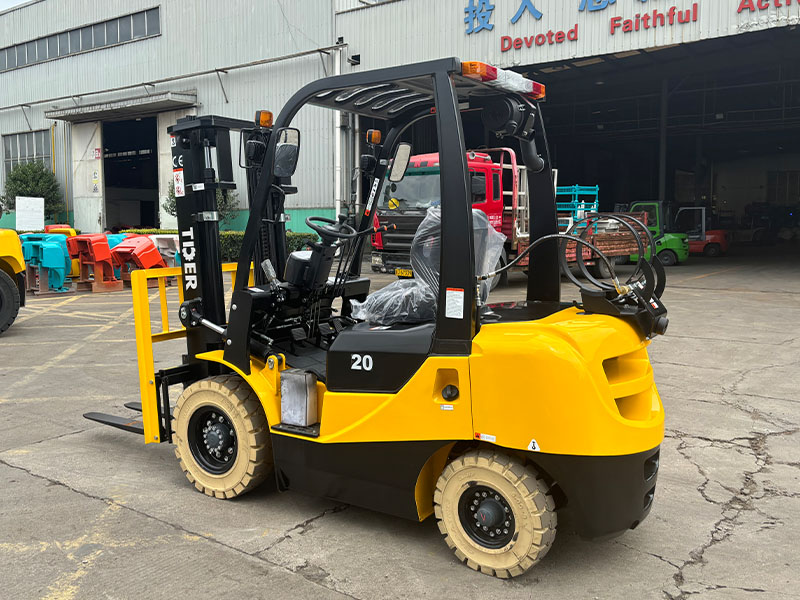

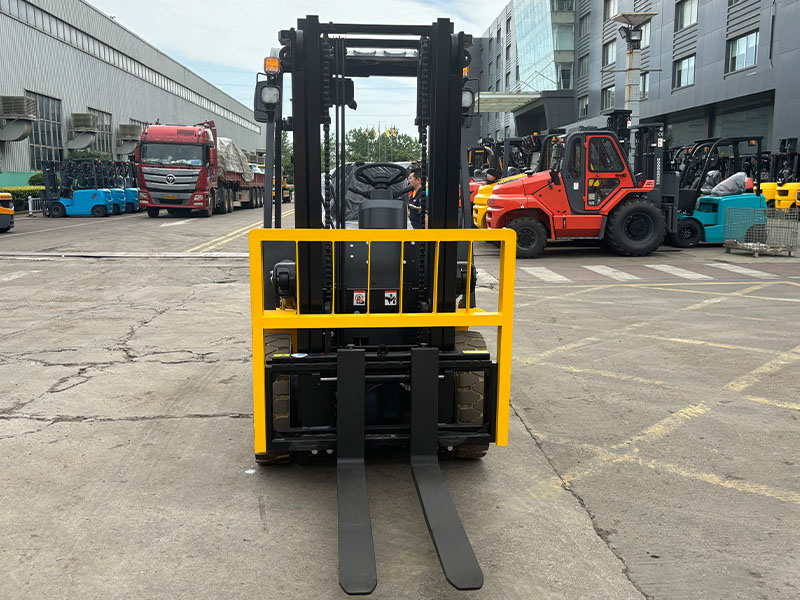

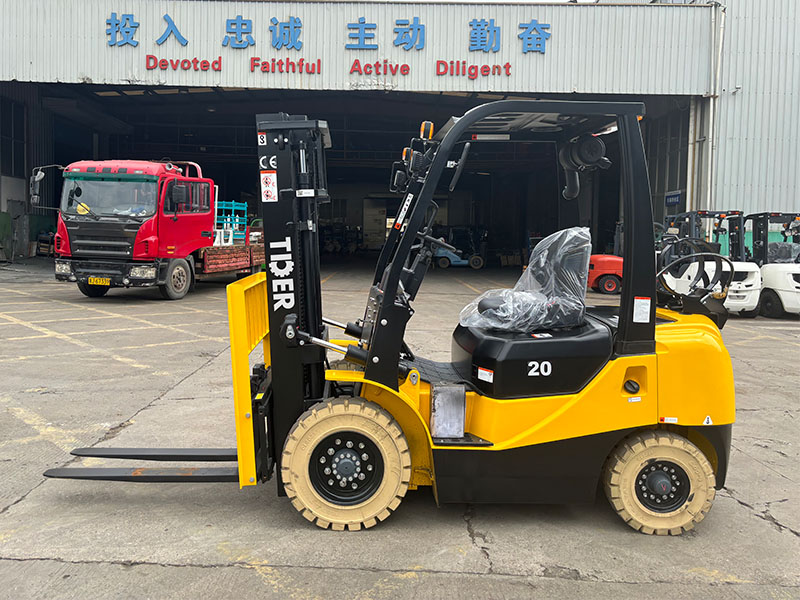

X Series 2 Ton LPG/Gasoline Forklift Truck


FG20


Rated Load:2000kg


Lifting Height:3000mm


PRODUCT DETAILS

TDER LPG/Gasoline Forklift combines the structural strength of diesel models with cleaner, quieter LPG power. Equipped with the GCT K25 engine, it delivers stable performance and lower emissions, making it ideal for indoor or semi-enclosed environments.

The robust vehicle structure features a wide-view mast and an integrated cast steering axle for reliable durability. The hydraulic system employs tapered seals and filtered oil to extend service life, while the electrical system's rational wiring facilitates easier maintenance. Operational design prioritizes ergonomics, offering comfortable handling with low step height and ample space. Smart features include digital instrumentation, USB charging, and fault alerts. The TDER LPG/Gasoline Forklift represents an ideal choice balancing efficiency and environmental responsibility.


1. Powerful Performance with Flexible Fuel Options:Available with Nissan K25, PSI 2.4 EPA, Kubota EPA, or Euro V dual-certified engines, supporting LPG and gasoline dual-fuel operation. Delivers strong power, quick starts, and excellent fuel efficiency, meeting high-intensity operations across diverse environments.

2. Smooth and Reliable Electro-Hydraulic Transmission:Zhongchai electro-hydraulic transmission ensures smooth shifting and quick response, maintaining stable and efficient performance even under continuous heavy-duty operation.

3. Durable Chassis and Tires:Equipped with Chaoyang brand tires for excellent traction and wear resistance; the robust chassis ensures long-term stability and reliability.

4. Ergonomic and Safe Operation:Ergonomic Toyota seat and well-designed operator console provide a comfortable driving experience. LCD display, backup alarm, and LED lights ensure intuitive, safe, and efficient operation, even during extended work shifts.

5. Flexible Adaptation for Multiple Work Scenarios:Compact overall design adapts to complex environments. Selected models offer short wheelbase options to meet operational needs in tight spaces or special scenarios, enhancing maneuverability and overall efficiency.

6. Stable Handling and High Reliability:Independent front and rear hydraulic systems, robust front overhang design, and 18–19MPa attachment pressure allow the forklift to operate smoothly and reliably in various conditions, supporting continuous heavy-duty work.


Model
FG20
Power Type
LPG & Gasoline
Rated Capacitykg2000
Load Centremm500
Lift Heightmm3000
Fork Size (L*W*T)mm1070*120*40
Mast Tilt Angle (F/R)°6°/12°
Front Overhangmm465
Min. Ground Clearancemm110
Overall Length(Without fork)mm2595
Overall Widthmm1150
Mast Lowered Heightmm2070
Mast Extended Heightmm4070
Overhead Guard Heightmm2070
Turning Radius (outside)mm2310
Min. intersecting aislemm2380
Travel Speed (Empty load)km/h19
Lifting Speed (Full load)mm/s530
Max. Gradeability%20
Front Tire
7.00-12-12 PR
Rear Tire
6.00-9-10 PR
Wheelbasemm1600
Service Weightkg3590
Battery (Voltage/Capacity)V/Ah12/80
Engine Model
K25
Engine Manufacturer
GCT(NISSAN)
Rated OutputkW/rpm35.6/2100
Rated TorqueN·m/rpm176.5/1600
No. of Cylinders
4
Bore * StrokeL89 * 100
Displacement
2468
Fuel Tank Capacity
60
Transmission Type
Hydraulic
FWD/RVS Stages
1/1
Operating Pressure (Attachment)MPa18


With technological innovation, our product configuration and parameters will continue to change without notice;

if there is any doubt, the specific confirmation of our international trade sales shall prevail.
