FG50
Rated Load:5000kg
Lifting Height:3000mm

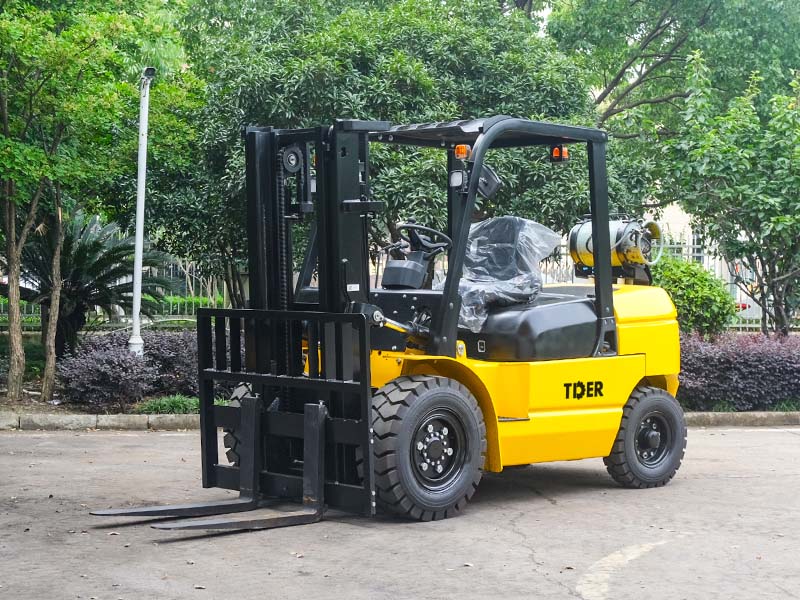

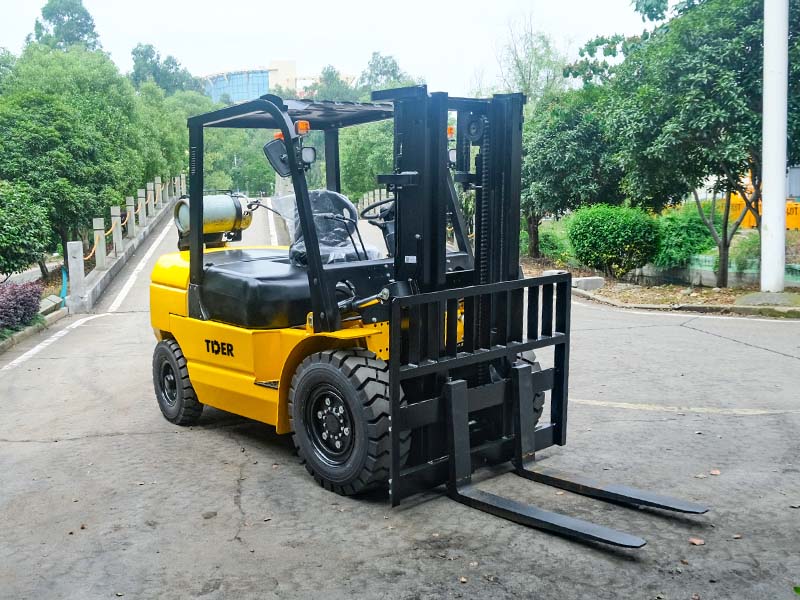

TDER LPG/Gasoline Forklift combines the structural strength of diesel models with cleaner, quieter LPG power. Equipped with the GCT K25 engine, it delivers stable performance and lower emissions, making it ideal for indoor or semi-enclosed environments.
The robust vehicle structure features a wide-view mast and an integrated cast steering axle for reliable durability. The hydraulic system employs tapered seals and filtered oil to extend service life, while the electrical system's rational wiring facilitates easier maintenance. Operational design prioritizes ergonomics, offering comfortable handling with low step height and ample space. Smart features include digital instrumentation, USB charging, and fault alerts. The TDER LPG/Gasoline Forklift represents an ideal choice balancing efficiency and environmental responsibility.
1. Powerful Performance and Efficiency:Equipped with the US PSI 4.3L EPA single-fuel engine, 6-cylinder large displacement, delivering strong power and quick starts to ensure stable operation under intensive workloads.
2. Smooth and Reliable Electro-Hydraulic Transmission:Zhongchuan electro-hydraulic transmission ensures smooth shifting and quick response, maintaining stable and efficient performance even under heavy-duty operations.
3. Durable Chassis and Tires:Robust chassis and Chaoyang brand tires provide excellent traction and wear resistance, ensuring long-term stability in diverse work environments.
4. Comfortable and Safe Operation:Ergonomic Toyota seat and well-designed operator console deliver a comfortable driving experience; clear interface, backup alarm, and LED lighting ensure safe and efficient operation.
5. High Load Capacity and Reliability:Attachment pressure of 19MPa, independent front and rear hydraulic systems, and robust front overhang design enable stable and reliable handling during continuous heavy-duty work.
6. Flexible Adaptation for Multiple Work Scenarios:Compact design and optional short wheelbase allow smooth operation in tight spaces and complex environments, enhancing maneuverability and overall efficiency.

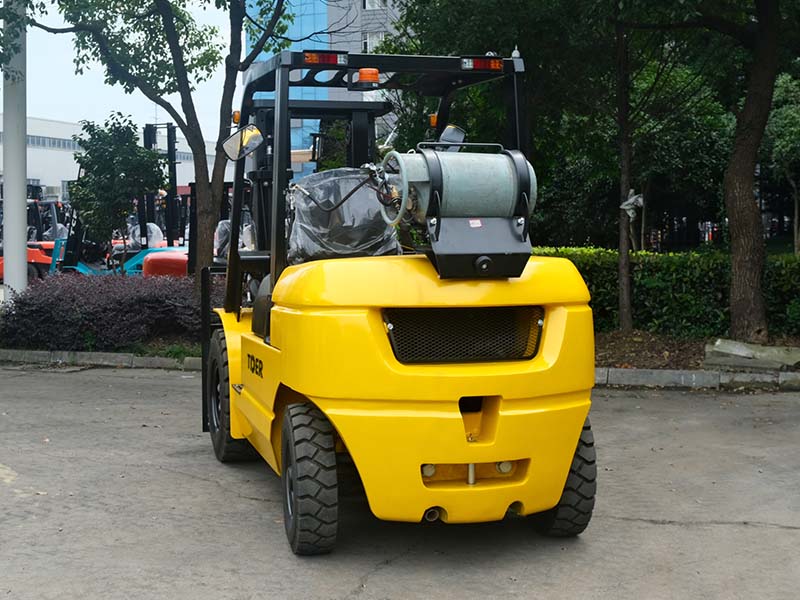

7. High-Mounted Exhaust Design:High-mounted exhaust prevents water and debris ingress, extending equipment life and reducing environmental impact from emissions.
Model | FG50 | |
Power Type | LPG & Gasoline | |
Rated Capacity | kg | 5000 |
Load Centre | mm | 500 |
Lift Height | mm | 3000 |
Fork Size (L*W*T) | mm | 1070*150*50 |
Mast Tilt Angle (F/R) | ° | 6°/12° |
Front Overhang | mm | 579 |
Min. Ground Clearance | mm | 150 |
Overall Length(Without fork) | mm | 3260 |
Overall Width | mm | 1460 |
Mast Lowered Height | mm | 2270 |
Mast Extended Height | mm | 4165 |
Overhead Guard Height | mm | 2340 |
Turning Radius (outside) | mm | 2910 |
Min. intersecting aisle | mm | 2960 |
Travel Speed (Empty load) | km/h | 25 |
Lifting Speed (Full load) | mm/s | 400 |
Max. Gradeability | % | 20 |
Front Tire | 300-15-18PR | |
Rear Tire | 7.00-12-12PR | |
Wheelbase | mm | 2100 |
Service Weight | kg | 6400 |
Battery (Voltage/Capacity) | V/Ah | 12/80 |
Engine Model | PSI4.3L | |
Engine Manufacturer | PSI | |
Rated Output | kW/rpm | 76/2300 |
Rated Torque | N·m/rpm | 324/1700 |
No. of Cylinders | 6 | |
Bore * Stroke | L | 101.6*88.4 |
Displacement | 4300 | |
Fuel Tank Capacity | 125 | |
Transmission Type | Hydraulic | |
FWD/RVS Stages | 2/2 | |
Operating Pressure (Attachment) | MPa | 19 |
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail.
