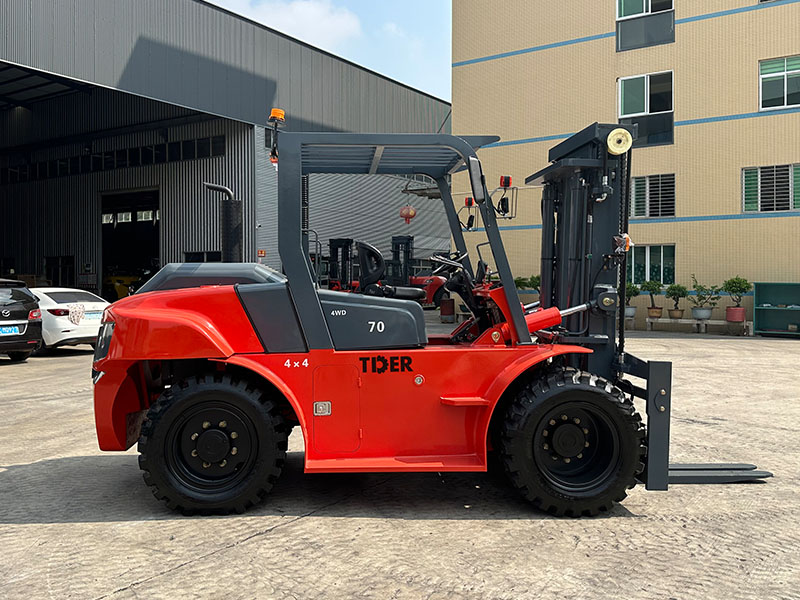

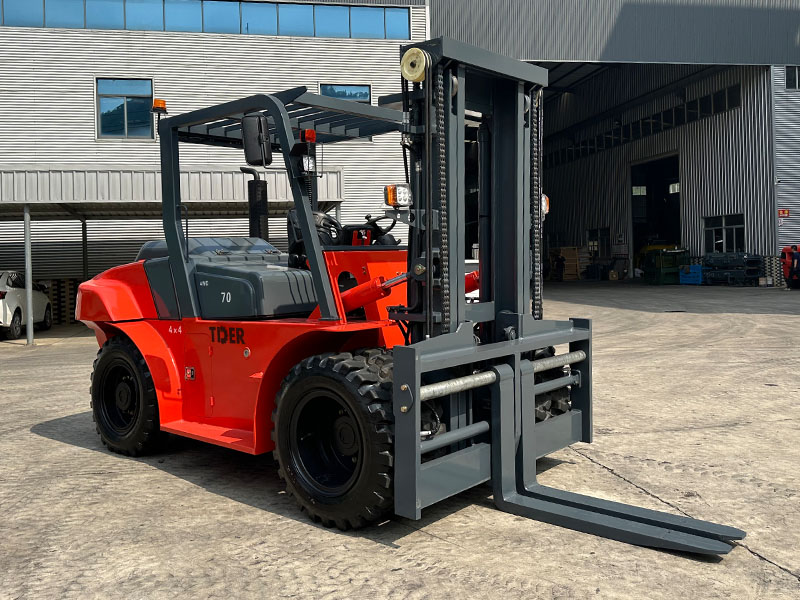

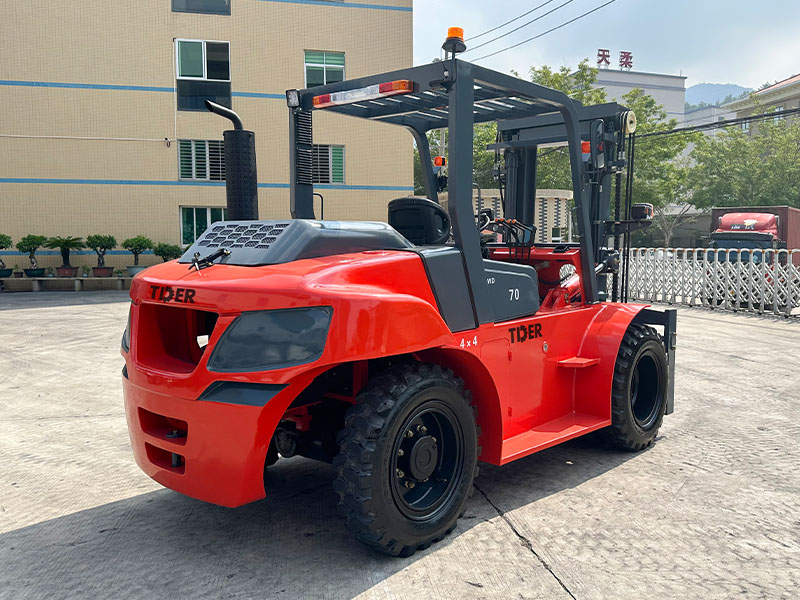

TDER Rough Terrain Forklift is specially designed for cargo handling, stacking, and short to medium-distance transport on complex terrains. It combines powerful performance with multi-scenario adaptability.The forklift features a high chassis and large ground clearance structure, equipped with heavy-tread solid or pneumatic tires, delivering excellent off-road capability to easily handle unpaved surfaces such as sand, mud, and gravel. The product line includes both 2WD and 4WD models.

The 2WD version offers agility and fuel efficiency, ideal for light to medium loads and general rough terrain conditions.The 4WD version is equipped with a professional drive system and a powerful diesel engine, delivering strong power output and excellent climbing ability, making it suitable for heavy-duty operations in forests, construction sites, mining areas, and ports.TDER Rough Terrain Forklift achieves a balance between load capacity and maneuverability, ensuring all-weather, all-terrain operations. It is a high-efficiency and reliable choice for outdoor material handling.

1. Ultra-high load capacity: rated lifting capacity of 7000kg, to meet the needs of heavy-duty handling, easy to deal with large-scale material loading and unloading.

2. Powerful power system: Cummins QSB3.9-C130 engine, 97kW power and 520N-m torque output, to provide efficient and stable power support for the machine.

3. Full-time four-wheel drive: four-wheel full-time drive provides excellent traction, even in complex and rugged terrain can also maintain stable driving, significantly improving the passing performance.

4. High-efficiency transmission system: The torque converter transmission system provides smooth gear shifting and high transmission efficiency, and at the same time prolongs the service life of the gearbox to ensure reliable operation for a long time.

5. High-quality core components: key components are selected from Changsha Zhongchuan transmission, Brilliance axle, Changyuan pump valve and other famous brands to ensure the reliability and durability of the whole machine.

6. High-efficiency lifting design: the maximum lifting height of the gantry is 3000mm, tilting forward 6°/backward 12°, which meets the needs of high and low loading and unloading, and significantly improves the loading and unloading efficiency.

7. Comfortable and safe driving: the sitting driving design provides spacious and comfortable working space, and the 2600mm high roof protection frame effectively protects the safety of the driver's head.

8. Excellent cross-country performance: the maximum speed of 30km/h without load, the maximum climbing degree of 24%, combined with full-time four-wheel drive, to ensure fast and efficient operation in complex terrain.

With technological innovation, our product configuration and parameters will continue to change without notice;

if there is any doubt, the specific confirmation of our international trade sales shall prevail.
