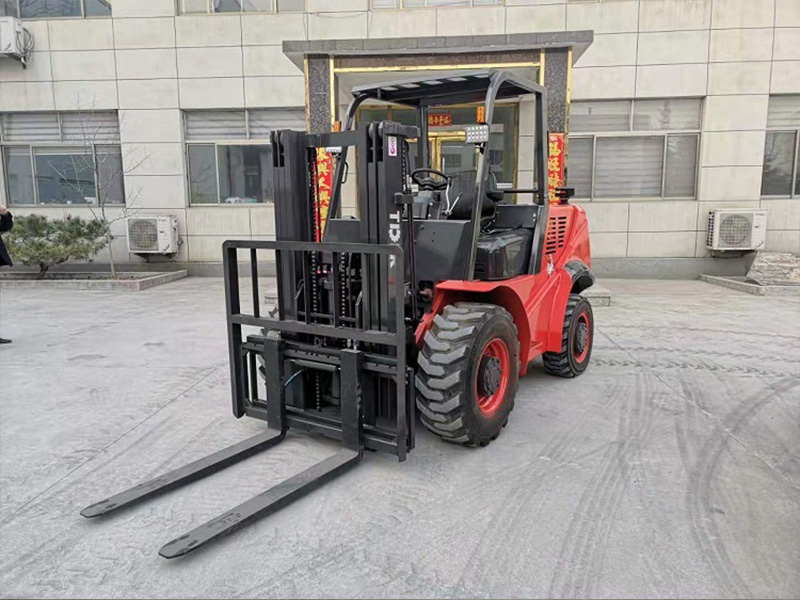

RTD25
Rated Capacity: 2500kg
Lift Height: 3000mm
1.Widely used in field operations such as mines,farmlands,orchards;
2.The whole car is equipped with ultra-wide off-road tires, with good off-road performance;
3.The environment-friendly engine is adopted, so that the whole vehicle can meet the European III and EPA III emission standards.
Model | RTD25 | |
Max.load | kg | 2500kg |
Lift height (standard) | mm | 3000mm |
Gantry width | mm | 160mm |
Climbing angle | ° | <35° |
Frame articulation | mm | Front200mm Rear250mm |
Weight | kg | 4050kg |
Front Tilt Angle | ° | 12° |
Dimension | mm | 3650/1800/2450mm |
Tires | mm | 20.5/70-16 |
Turning radius (outside tires) | mm | 3500mm |
Fork length (standard) | mm | 1220mm |
Drive Mode | 4WD | |
Min. Ground Clearance | mm | 235mm |
Static height of gantry | mm | 2230mm |
Engine | kw | Yunnei490/42KW |
Gearbox | 265 |
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail.
