PRODUCT DETAILS

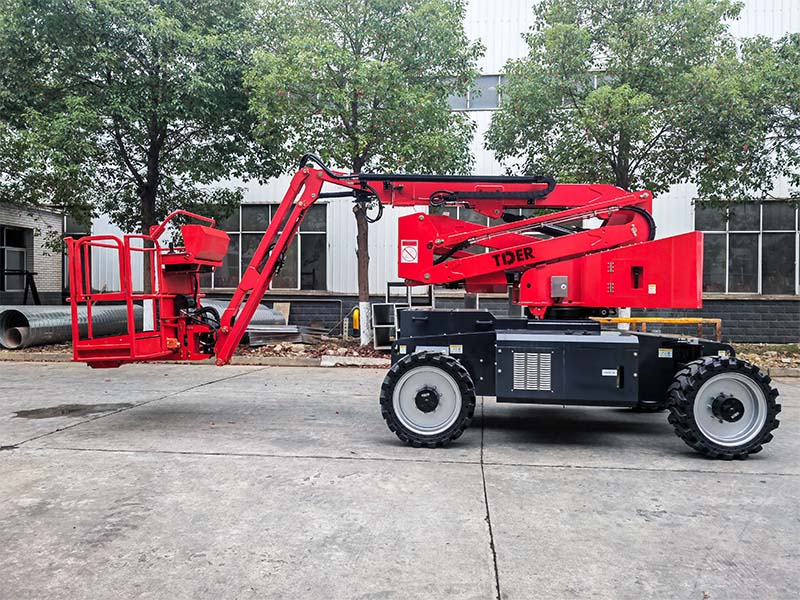

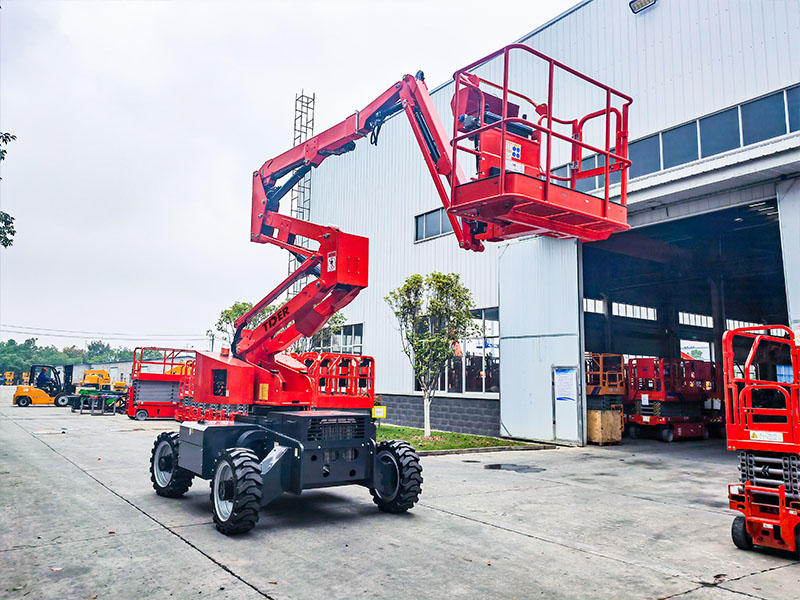

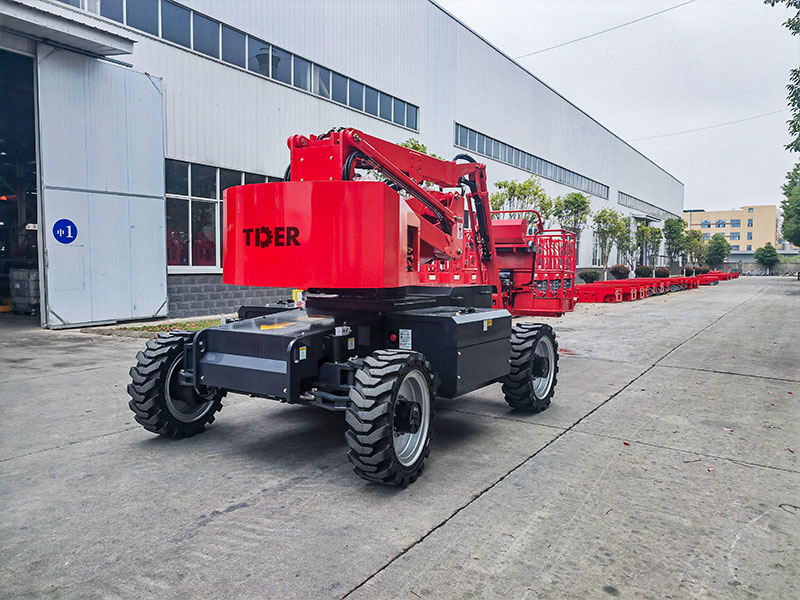

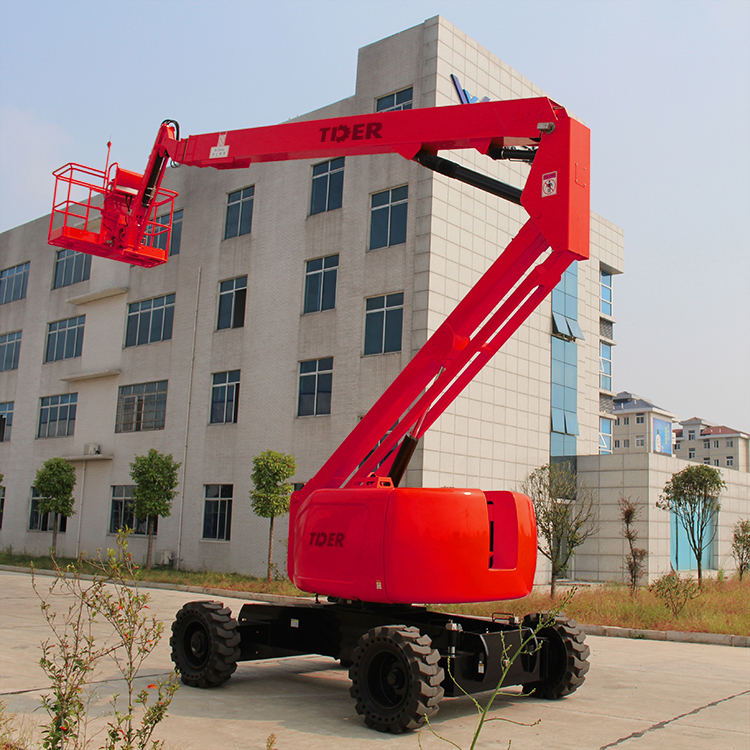

Articulated boom lift is a kind of layout is compact, the obstacle-surmounting efficiency and design precision, driving strong and simple operation of the crank arm type mobile elevating work platform. The machine is easy to operate, safe and reliable, accurate and efficient, and can widely meet the needs of users in construction, steel structure, petrochemical industry, venue and lease, etc.

Model		ZTQD1214	ZTQD1618	ZTQD2022	ZTQD2426	ZTQD2628	ZTQD3032
Measurements
Working height maximum	m	14	18	22	26	27	32
Platform height maximum	m	12	16	20	24.2	25.1	30
Horizontal reach maximum	m	8	9.8	12.6	15.8	16.0	20.2
Up & over clearance maximum	m	5	7.75	9.2	9.8	6.8	12.2
(LxW) Platform dimensions	m	1.1x0.67	1.83x0.76				2.44x0.91
Length(stowed)	m	5.3	7.7	9.07	9.92	9.75	12.52
Width(stowed)	m	2	2.28	2.38	2.48	2.58	2.5
Height(stowed)	m	2.26	2.38	2.49	2.82	2.80	3.17
Wheelbase	m	2.4	2.45		3.00		3.66
Ground clearance(center)	m	0.2	0.43				0.43
Productivity
Max.load capacity	kg	200	230
Platform occupancy maximum		2
Platform rotation		±80°
Vertical jib rotation		140°
Turntable rotation		360°
Turntable tail swing	m	0.26	0	0.33	0.28	0.19	/
Drive speed (stowed)	km/h	3.2	4.2				4.4
Drive speed(raised or extended)	km/h	0.8	1.1				1.1
Gradeability		30%	45%				40%
Allowable slope maximum		3°/3°
Turning radius(Inside)	m	3	2.61	2.66	2.60		2.74
Turning radius(Outside)	m	5.2	5.61	5.66	5.85		5.85
Drive&steer mode		4x4x2					4x4x4
Tire type		33x12-20			36x14-20	385/65-22.5
Power
Engine		Weichai	Weichai		Weichai	Weichai
Power		36.8kW/2500rpm	36.8kW/2500rpm		36.8kW/2500rpm	55.4kW/2600rpm
Fuel tank volume	L	40	100				151
Hydraulic oil tank volume	L	50	110		150		250
Control voltage		12 V DC
Weight	kg	5300	7877	8800	16300	14400	18000
Standards Compliance		EN280：2013+Al：2015 GB25849-2010

With technological innovation, our product configuration and parameters will continue to change without notice;

if there is any doubt, the specific confirmation of our international trade sales shall prevail.
