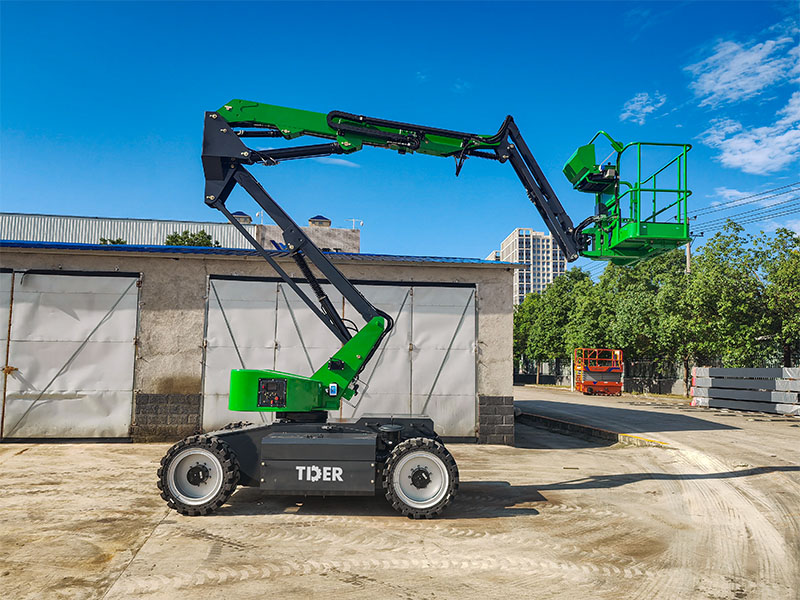

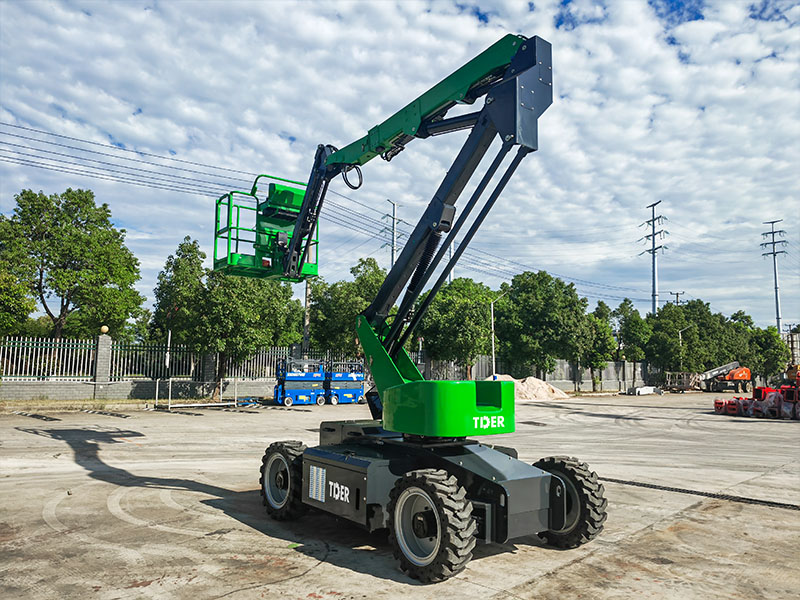

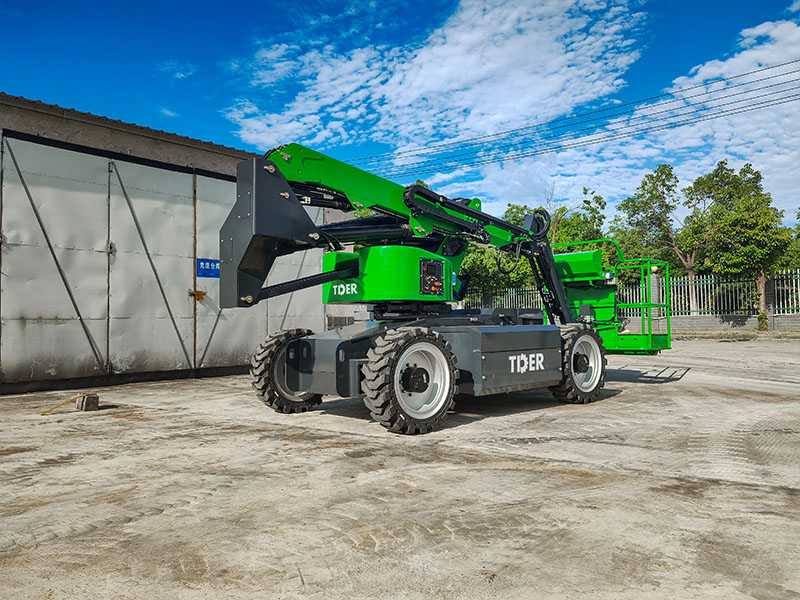

TDER Articulated Boom Lift is specially designed for complex aerial tasks, featuring a multi-angle articulated boom structure for flexible reach and precise positioning. Coupled with a high-performance hydraulic system and precise control, it efficiently completes installation, inspection, and maintenance tasks. The robust chassis and intelligent control ensure stable and safe operation, while the articulated boom structure can overcome obstacles, making it suitable for building facades, industrial facilities, and municipal aerial work applications.

Diesel Articulated Boom Lift covers working heights from 14 to 47 m, equipped with a high-performance diesel engine for strong power. Combined with multi-angle boom adjustment, it provides flexible and efficient operational capability.

1. Equipped with a standard Yanmar/Kubota diesel engine delivering 35.9 kW of efficient and stable power, the machine meets multi-condition, mid-to-low altitude operation demands. An optional Yanmar engine compliant with EPA or Euro V emission standards is available, balancing performance and environmental requirements.

2. With a maximum working height of 18 m, 9.8 m horizontal outreach, and a 7.75 m up-and-over height, it efficiently covers elevated factory structures, steel frameworks, and obstacle-dense areas—ideal for industrial facility maintenance and installation work.

3. The jib offers 140° vertical articulation, the platform adjusts ±80°, and the upper structure provides full 360° rotation. Operators can quickly perform positioning, alignment, and angle adjustments in confined spaces, enabling more flexible and efficient aerial operations.

4. A 4WD/2WS drive system paired with wear-resistant off-road tires and 430 mm of ground clearance delivers 45% gradeability, ensuring stable performance on gravel, muddy terrain, and gentle slopes.

5. The spacious 1.83 × 0.76 m platform supports a 230 kg capacity, allowing two operators plus tools to work simultaneously, improving efficiency and comfort during operation.

6. The machine is equipped with overload protection, tilt limitation, emergency descent, and motion-range limiting systems. It complies with EN280:2013+A1:2015 and GB25849-2010 standards, ensuring aerial work safety for engineering projects worldwide.

With technological innovation, our product configuration and parameters will continue to change without notice;

if there is any doubt, the specific confirmation of our international trade sales shall prevail.
