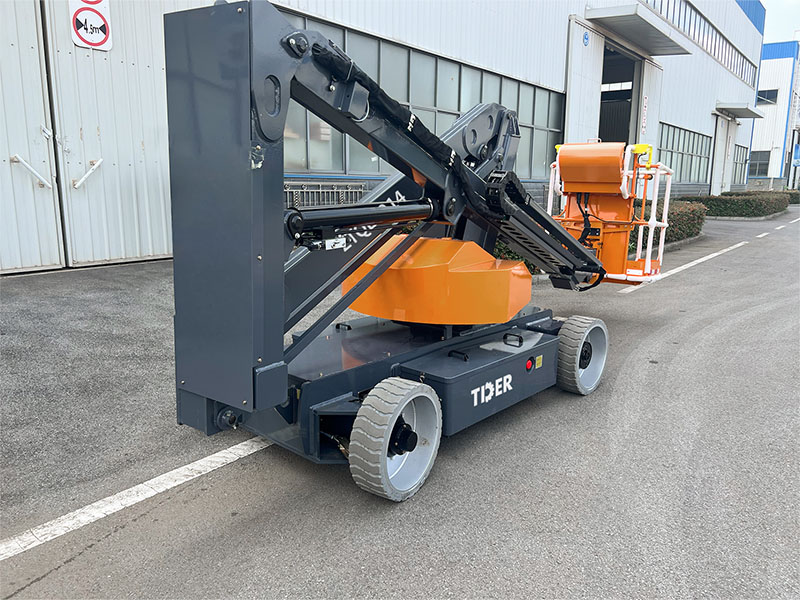

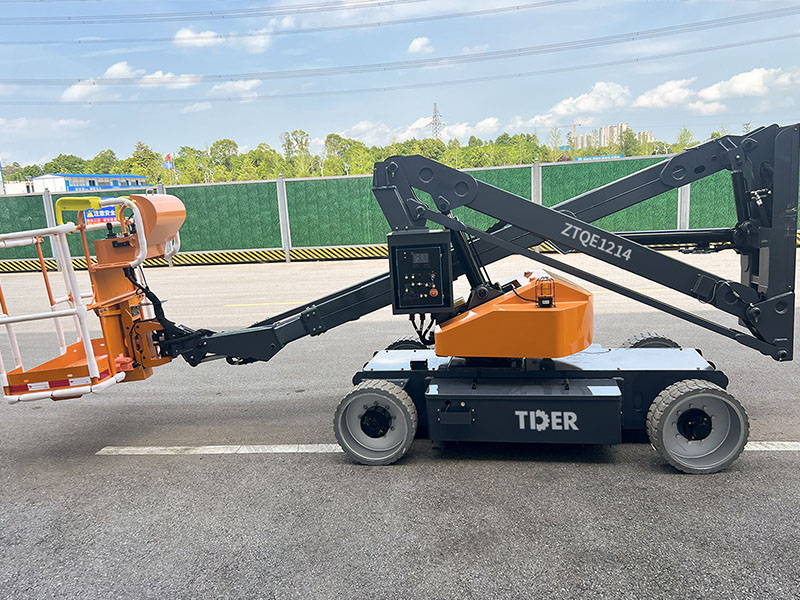

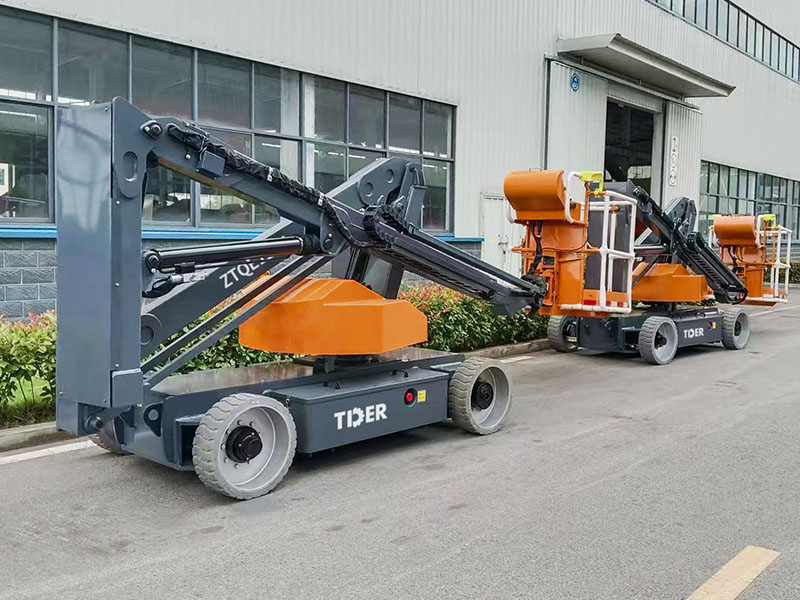

TDER Articulated Boom Lift is specially designed for complex aerial tasks, featuring a multi-angle articulated boom structure for flexible reach and precise positioning. Coupled with a high-performance hydraulic system and precise control, it efficiently completes installation, inspection, and maintenance tasks. The robust chassis and intelligent control ensure stable and safe operation, while the articulated boom structure can overcome obstacles, making it suitable for building facades, industrial facilities, and municipal aerial work applications.

Electric Articulated Boom Lift covers working heights from 14 to 28 m, equipped with long-range lithium-ion or lead-acid battery. With four-wheel AC drive and differential steering control, it achieves low noise, zero emissions, and high-endurance operation.

1. Maximum working height of 13.6 m, with 5.5 m horizontal outreach, suitable for factory maintenance, column installation, and building façade inspection, enabling efficient high-level access even in confined spaces.

2. Platform rated for 215 kg, safely supporting two operators and common tools. Reasonably sized platform ensures stability during high-altitude installation and maintenance operations.

3. 355° rotation structure combined with flexible working arm adjustment allows precise operation from any direction. With 5.4 m obstacle clearance, easily overcomes pipelines, fences, and other obstacles, improving efficiency in complex work environments.

4. High-capacity battery provides stable runtime, with optional maintenance-free lithium battery configuration. Quiet and environmentally friendly operation suitable for noise- and emission-sensitive environments such as factory floors and commercial venues.

5. Compact chassis with 30% gradeability and 1.2 m inner turning radius ensures maneuverability on ramps and in narrow passages, facilitating fast positioning and deployment.

6. 2WD/2WS driving system ensures stable and controllable operation in raised position, suitable for continuous-movement tasks in warehouse and mixed indoor/outdoor conditions.

With technological innovation, our product configuration and parameters will continue to change without notice;

if there is any doubt, the specific confirmation of our international trade sales shall prevail.
