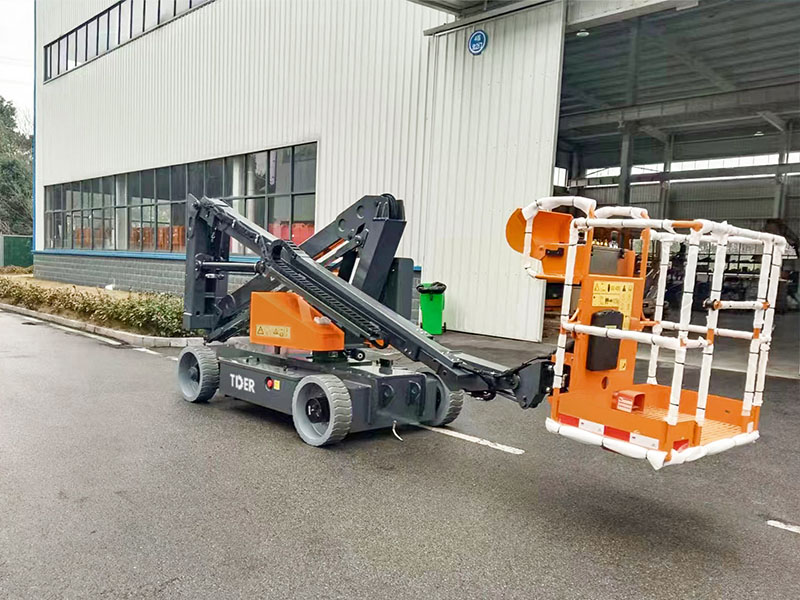

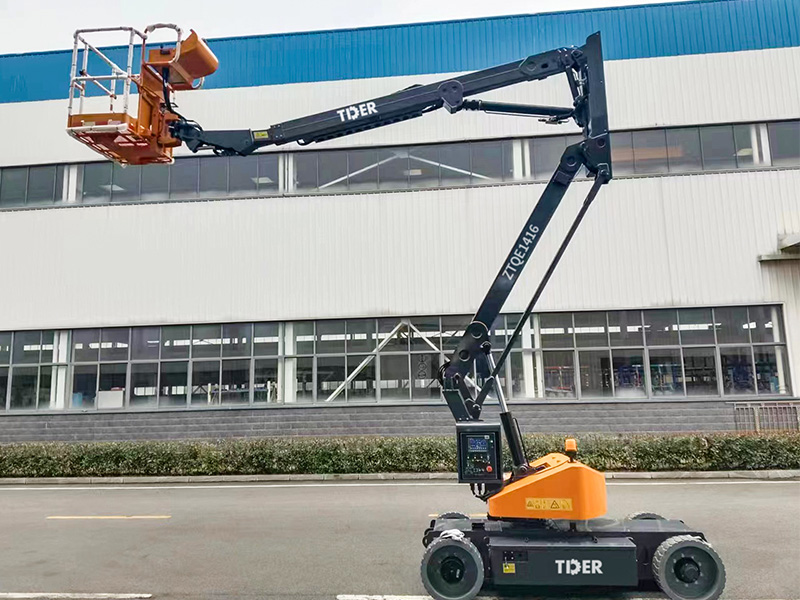

TDER Articulated Boom Lift is specially designed for complex aerial tasks, featuring a multi-angle articulated boom structure for flexible reach and precise positioning. Coupled with a high-performance hydraulic system and precise control, it efficiently completes installation, inspection, and maintenance tasks. The robust chassis and intelligent control ensure stable and safe operation, while the articulated boom structure can overcome obstacles, making it suitable for building facades, industrial facilities, and municipal aerial work applications.

Electric Articulated Boom Lift covers working heights from 14 to 28 m, equipped with long-range lithium-ion or lead-acid battery. With four-wheel AC drive and differential steering control, it achieves low noise, zero emissions, and high-endurance operation.

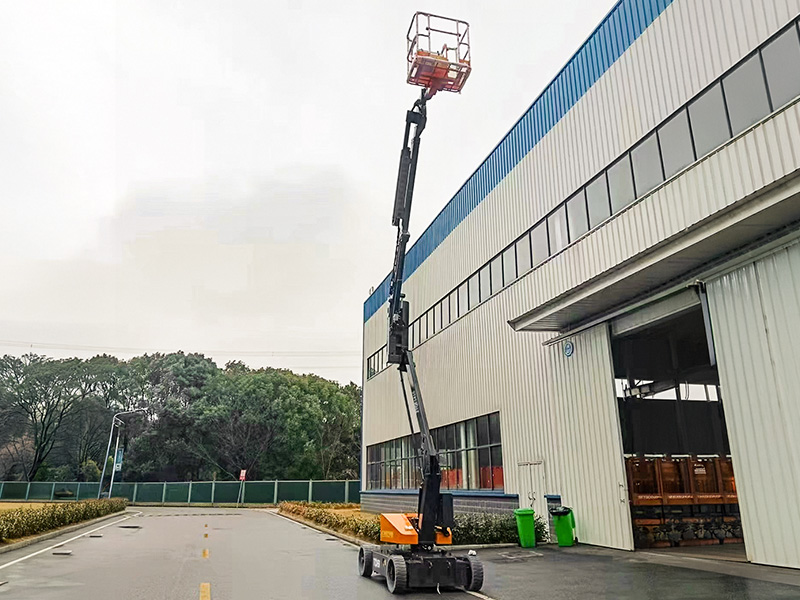

1. Maximum working height of 15.9 m, with 7.6 m horizontal outreach, suitable for mid-to-high-level maintenance, curtain wall servicing, and equipment installation, meeting lateral operation requirements in complex building and industrial environments.

2. Platform rated for 230 kg, safely supporting two operators and necessary tools. Reasonable platform dimensions ensure continuous and stable execution of wiring, installation, and maintenance tasks.

3. 355° rotation structure with 7.9 m obstacle clearance enables the boom to bypass pipelines, beams, and barriers from multiple angles, efficiently performing precise operations in constrained conditions.

4. High-capacity battery provides reliable runtime, with optional maintenance-free lithium configuration, suitable for low-noise and zero-emission operation in factory floors, commercial facilities, and urban construction sites.

5. Compact chassis with 30% gradeability and 0.8 m inner turning radius ensures flexible positioning on ramps, narrow work areas, and obstacle-dense zones, enhancing adaptability in complex conditions.

6. 2WD/2WS driving system ensures stable and controllable movement in raised position, ideal for frequent relocation and repeated positioning in continuous mid-to-high-level operations.

With technological innovation, our product configuration and parameters will continue to change without notice;

if there is any doubt, the specific confirmation of our international trade sales shall prevail.
