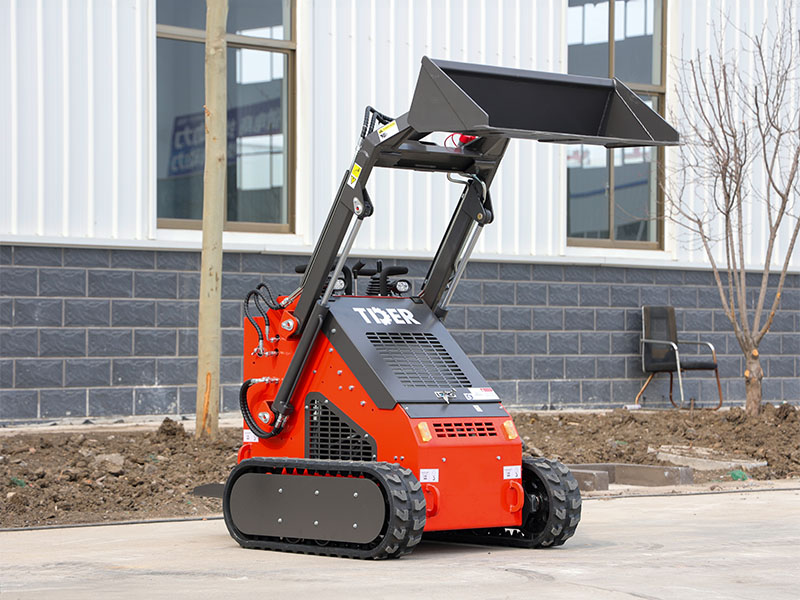

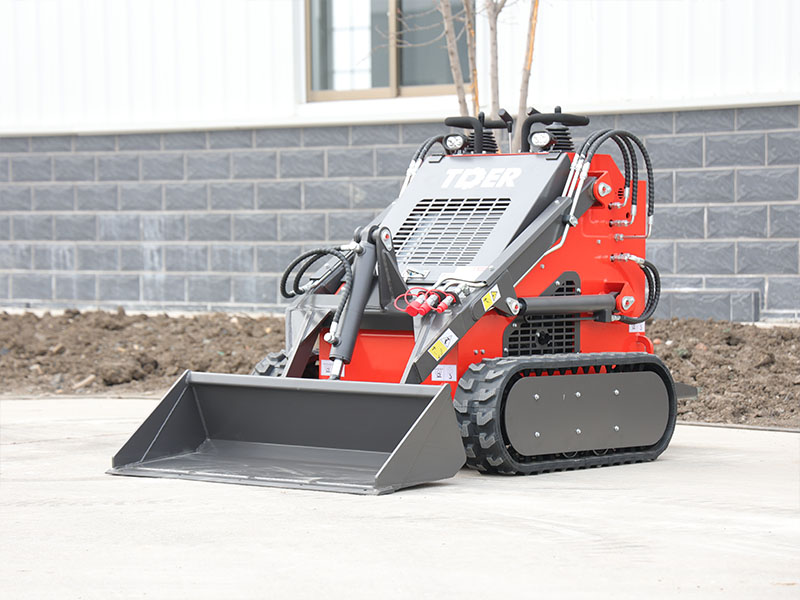

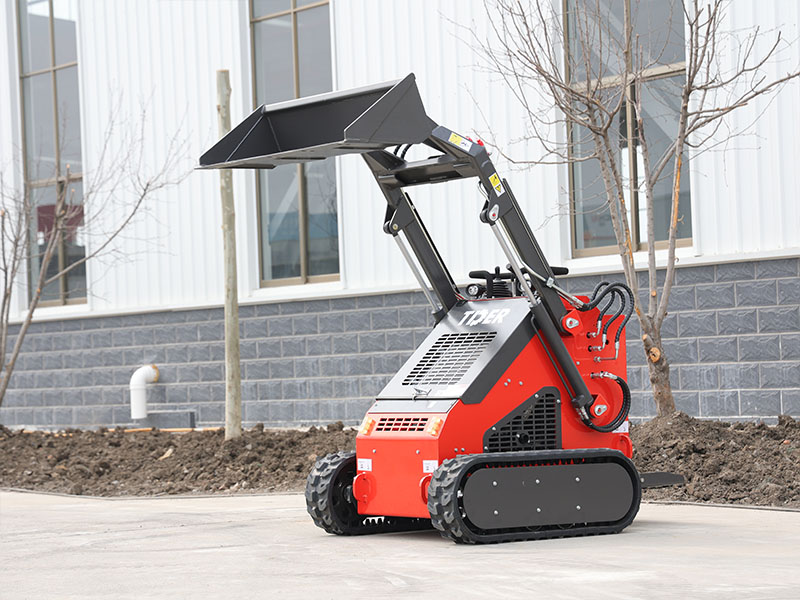

TDER Crawler Skid Steer Loader is a kind of multi-purpose construction machinery mainly for shovelling, loading and transporting loose materials, and it can replace many different attachments through quick-change device to realise multi-purpose use, with a wide range of applications and strong versatility. Adopting crawler chassis structure, compared with wheeled equipment, it is more suitable for soft, muddy and other complex working conditions, taking into account the off-road performance and the ability to pass through complex terrain.

1. Efficient power core configuration: equipped with 23HP engine, stable power output at 3600rpm, to meet the needs of light loading and unloading, site cleaning and other operations.

2. Reliable hydraulic components: well-known brand motor, pump, with 25L hydraulic oil tank, hydraulic action execution is stable, to ensure the reliability of long-term high-frequency operation.

3. Narrow space operation: the width of the fuselage is only 1090mm, and the compact design makes it flexible in narrow Spaces such as indoor and courtyard, breaking through the admission limit of large equipment, and perfectly adapting to small scene operations.

4. Precise control of loading and unloading efficiency: 4. 3S rapid lifting of materials, 1. 5S instant unloading, efficient connection of the two links, significantly shortening the single loading and unloading cycle time, and greatly improving the construction efficiency under light load conditions.

5. Stable operation of track chassis: 920kg working weight combined with track structure, low and stable center of gravity during operation, in the face of uneven ground or light load loading and unloading, maintain low shaking characteristics, double guarantee of operation safety and stability.

6. Complex terrain conquering ability: track design with 30% climbing ability, strong grip, low ground ratio, easy to cope with muddy, soft and other complex terrain, outdoor harsh environment passing far more than wheeled equipment.

7. Multi-component expansion potential: the use of international universal quick change devices to meet the quick replacement of various brand components, such as Bobcat brand; The hydraulic quick joint can be matched with a variety of plant accessories or hosts, and one device can realize multi-functional applications such as loading, cleaning and crushing, expanding the boundaries of construction scenes.

8. Lightweight structure design: the total length of the fuselage is 2285mm, the wheelbase is 990mm, the quality of the whole machine is 15% lighter than that of similar models, the transportation convenience is improved, and the mobility and operation stability of small tonnage equipment are taken into account.

With technological innovation, our product configuration and parameters will continue to change without notice;

if there is any doubt, the specific confirmation of our international trade sales shall prevail.
