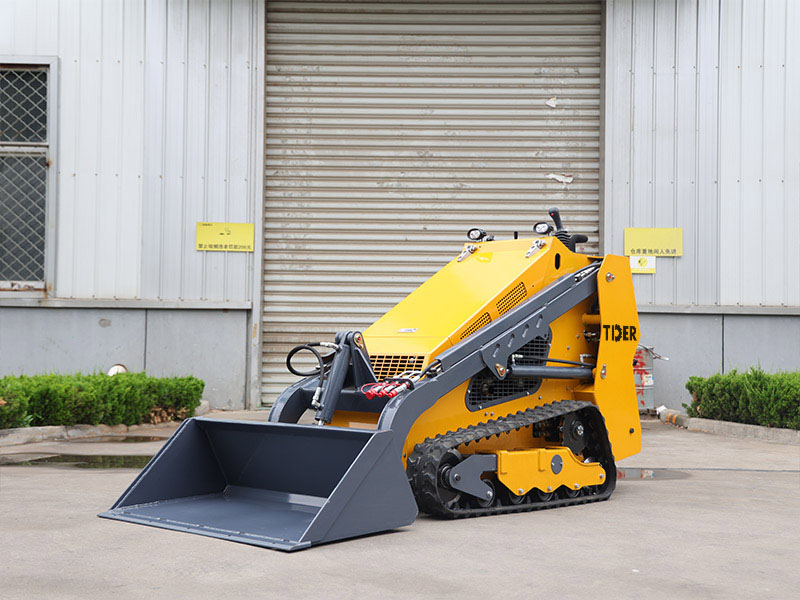

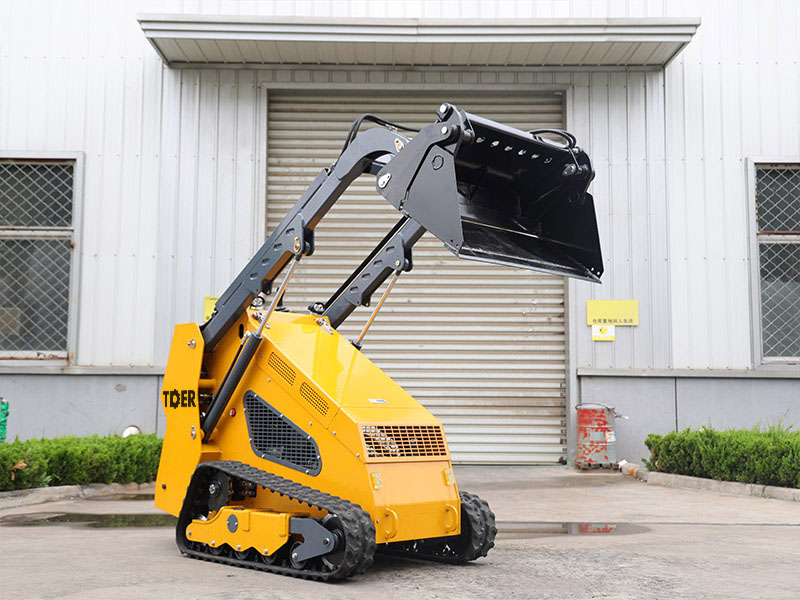

TDER Crawler Skid Steer Loader is a kind of multi-purpose construction machinery mainly for shovelling, loading and transporting loose materials, and it can replace many different attachments through quick-change device to realise multi-purpose use, with a wide range of applications and strong versatility. Adopting crawler chassis structure, compared with wheeled equipment, it is more suitable for soft, muddy and other complex working conditions, taking into account the off-road performance and the ability to pass through complex terrain.

1. Strong power import configuration: equipped with Kubota 1105 engine, 18. 2kW power output is stable, matching Italy PWG valve, PWG/ Bombe pump and Yingpu motor, imported hydraulic components work together, power response is rapid and system reliability is high.

2. Efficient operation performance: 450kg rated load ADAPTS to 0. 2m³ bucket to meet the needs of small and medium-sized material handling; 21Mpa rated pressure hydraulic system drive, lifting, lowering, dumping time is 5S, smooth operation cycle, improve construction efficiency.

3. Complex terrain adaptability: Triangular track structure with 30% climbing ability, strong grip, low ground ratio, easy to cope with muddy, soft and other complex terrain, outdoor construction is far more passability and stability than wheeled equipment.

4. Compact fuselage flexible control: the width of the fuselage is only 1050mm, and the compact design makes it flexible in narrow Spaces such as community construction and garden operations, taking into account mobility and operation convenience.

5. Precise control of hydraulic system: The use of double pump and double valve configuration, with 25L hydraulic oil tank, optimize the hydraulic oil heat dissipation and circulation efficiency, to ensure that the lifting, dumping and other actions under high-frequency operation continue to be accurate, and the system stability is significantly improved.

6. Long-term operation guarantee: 35L fuel tank design, combined with Kubota engine energy-saving characteristics, a single refueling can support long-term continuous operation, reduce the frequency of refueling, ensure the continuity of construction, reduce the cost of stagnation in the middle.

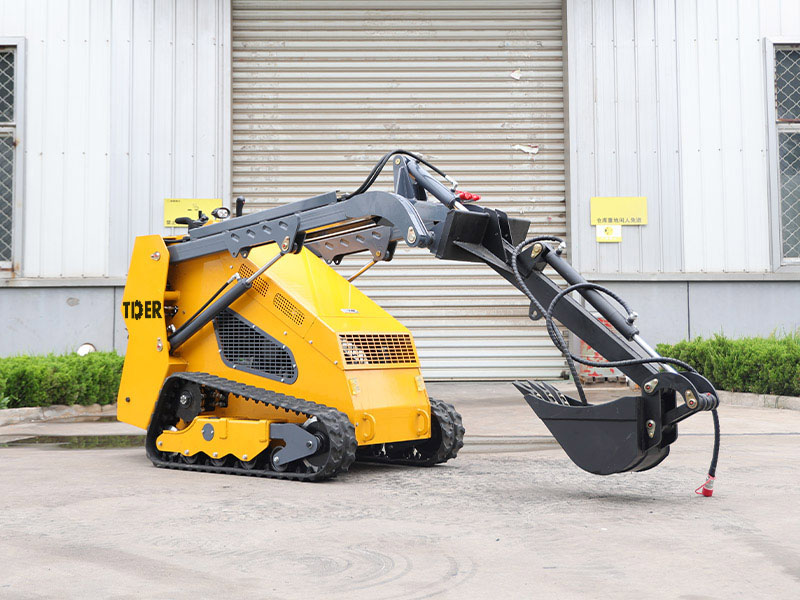

7. Multi-component expansion potential: the use of international universal quick change devices to meet the quick replacement of various brand components, such as Bobcat brand; The hydraulic quick joint can be matched with a variety of plant accessories or hosts, and one device can realize multi-functional applications such as loading, cleaning and crushing, expanding the boundaries of construction scenes.

With technological innovation, our product configuration and parameters will continue to change without notice;

if there is any doubt, the specific confirmation of our international trade sales shall prevail.
