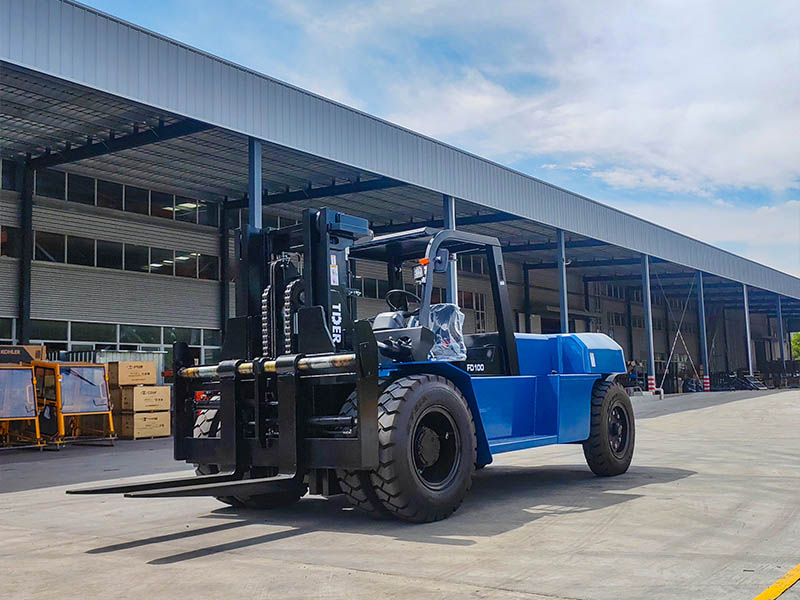

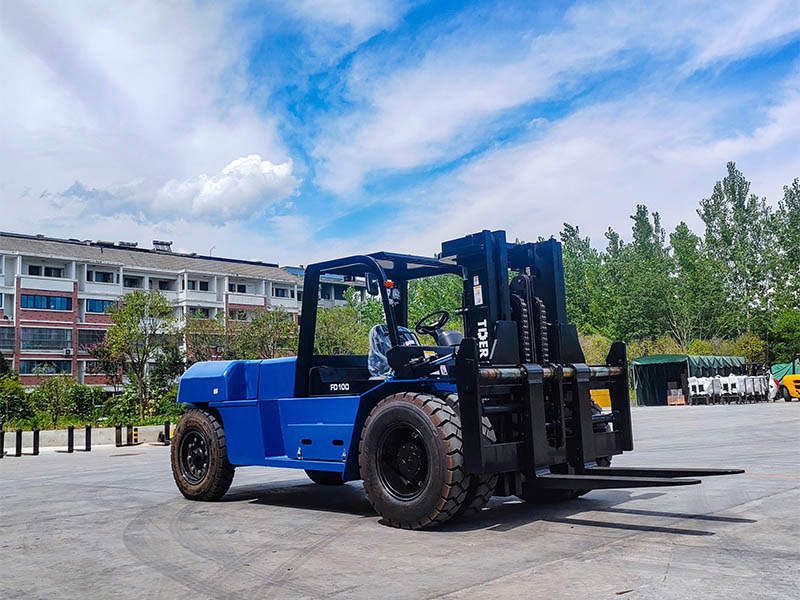

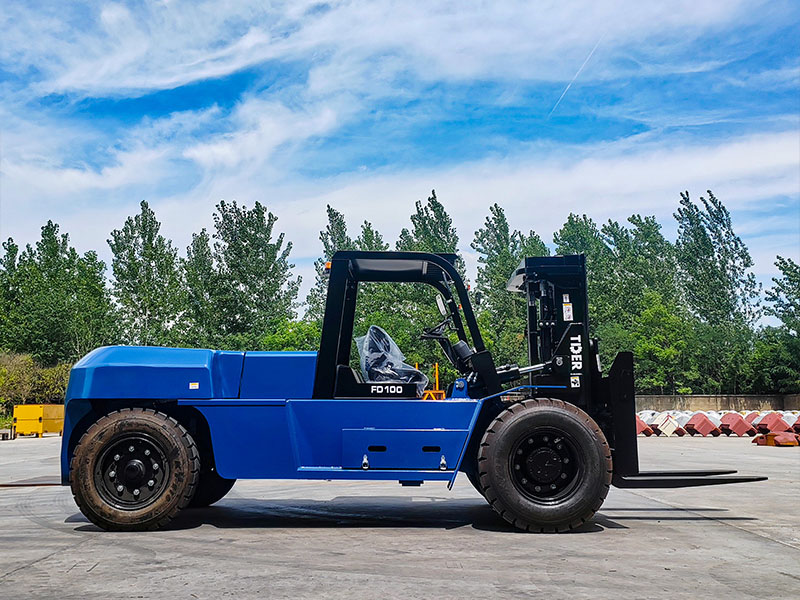

FD100
Rated Capacity: 10000kg
Lift Height: 2300mm
1. TDER strives to meet the need of all ports and intermodal shipping facilities with a line of inner container forklift that can easily fit inside standard shipping containers with capacities ranging 40GP.
2. Developed from our heavy duty forklift, the inner container forklift features compact forklifts with designed with durability, reliability and maximum visibility in mind.
3. TDER have been designed to speed up material handling operations in total safety for the operator and guarantee maximum protection for the loads to be handled even within the very narrow spaces that characterize the internal parts of the containers.
4. Thanks to the specific characteristics of inner container forklift, the loads no longer have to be "pushed" or dragged "inside containers: all this avoids any type of damage and guarantees further economic savings, which is added to greater productivity, ensured by better handling of movements.
Model | FD100 | ||
Rated Capacity | kg | 10000 | |
Load Center | mm | 600 | |
Tire:L-Pneumatic V-Rubber | L.V | ||
Number of tires (front/back) | 4/2 | ||
Lifting Height | mm | 2300 | |
Fork Size(L*W*T) | mm | 80×180×1500 | |
Mast Tilt Angle (F/R) | drg | 6/12 | |
Length to Face of Fork | mm | 4370 | |
Overall Width | mm | 1940 | |
Overhead Guard Height | mm | 2200 | |
Mast Lowered Height | mm | 2220 | |
Wheelbase | mm | 2800 | |
Truckbase | mm | 1430/1670 | |
Min. Ground Clearance | mm | 260 | |
Min.Turning Radius | mm | 4200 | |
Max.Lifting Speed(full load) | mm/s | 300 | |
Max.Travel Speed(full load) | Km/h | 26 | |
Max.Gradeability(full load) | % | 20 | |
Service Weight | kg | 13000 | |
Tire (F/R) | 8.25-20/8.25-20 | ||
Engine | Model | YC6J125-T300 | |
Rated Output | kw | 92 | |
Rated torque | r.p.m | 2200 |
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail.
