Inner Container Forklift

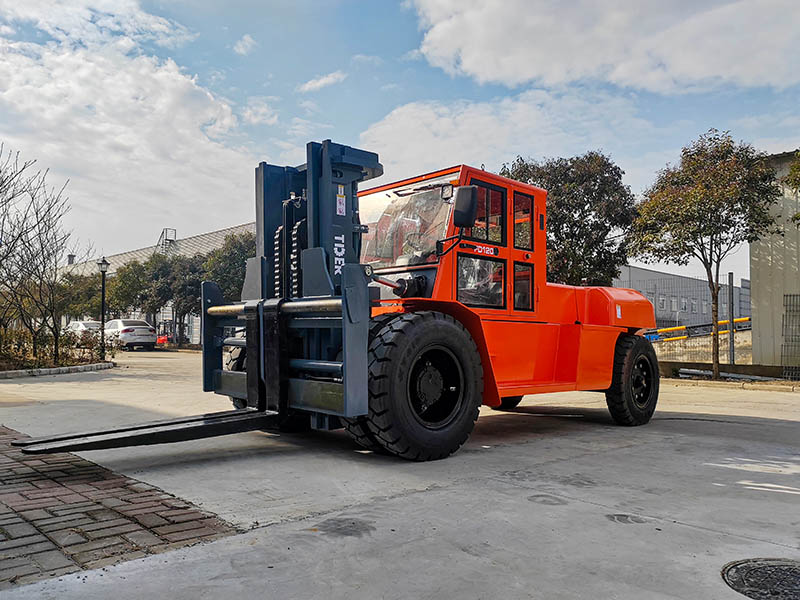

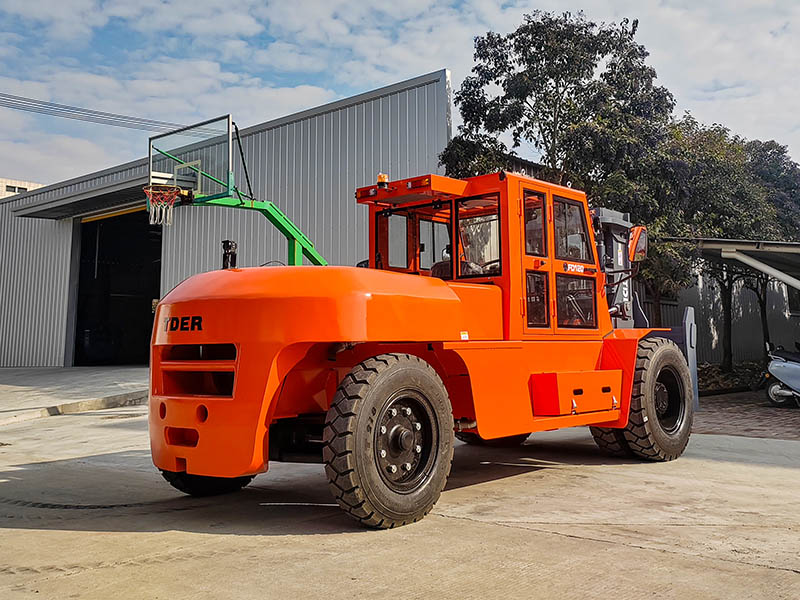

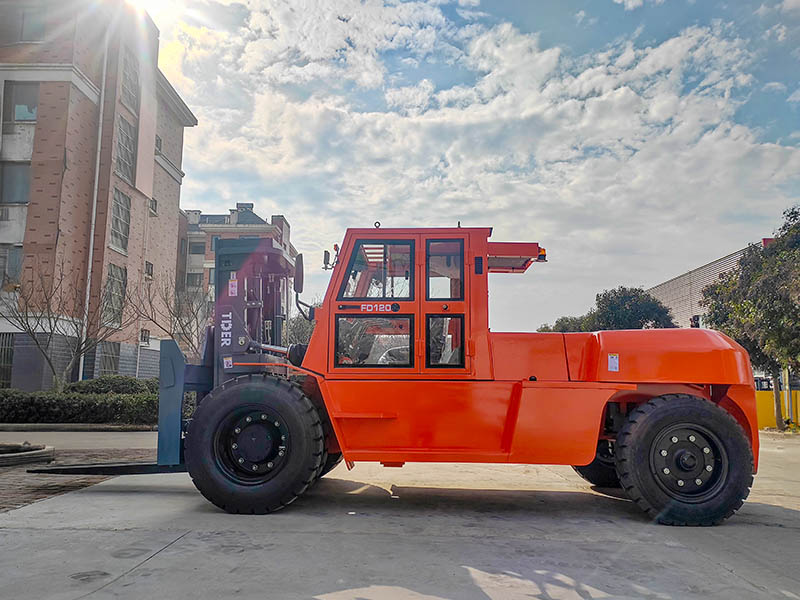

12 Tonne Inner Container Forklift


FD120


Rated Capacity: 12000kg


Lift Height: 2300mm


PRODUCT DETAILS

1. TDER strives to meet the need of all ports and intermodal shipping facilities with a line of inner container forklift that can easily fit inside standard shipping containers with capacities ranging 40GP.

2. Developed from our heavy duty forklift, the inner container forklift features compact forklifts with designed with durability, reliability and maximum visibility in mind.

3. TDER have been designed to speed up material handling operations in total safety for the operator and guarantee maximum protection for the loads to be handled even within the very narrow spaces that characterize the internal parts of the containers.

4. Thanks to the specific characteristics of inner container forklift, the loads no longer have to be "pushed" or dragged "inside containers: all this avoids any type of damage and guarantees further economic savings, which is added to greater productivity, ensured by better handling of movements.


Model
FD120
Rated Capacitykg12000
Load Centermm600
Tire:L-Pneumatic V-Rubber
L.V
Number of tires (front/back)
4/2
Lifting Heightmm2300
Fork Size(L*W*T)mm80×180×1520
Mast Tilt Angle (F/R)drg6/12
Length to Face of Forkmm4550
Overall Widthmm2020
Overhead Guard Heightmm2220
Mast Lowered Heightmm2230
Wheelbasemm2950
Truckbasemm1470/1670
Min. Ground Clearancemm250
Min.Turning Radiusmm4380
Max.Lifting Speed(full load)mm/s220
Max.Travel Speed(full load)Km/h23
Max.Gradeability(full load)%20
Service Weightkg15000
Tire (F/R)
9.00-20-18PR/9.00-20-18PR
EngineModel
YC6J125-T300
Rated Outputkw92
Rated torquer.p.m2200


With technological innovation, our product configuration and parameters will continue to change without notice;

if there is any doubt, the specific confirmation of our international trade sales shall prevail.
