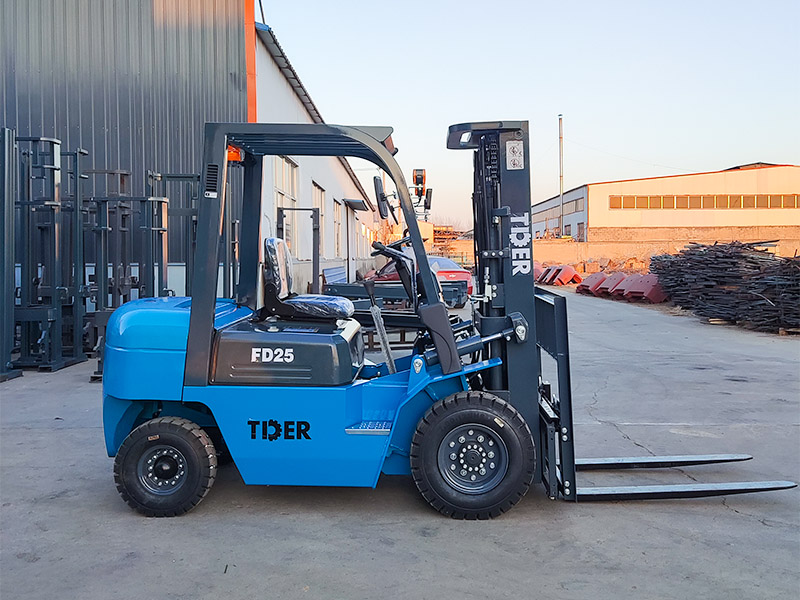

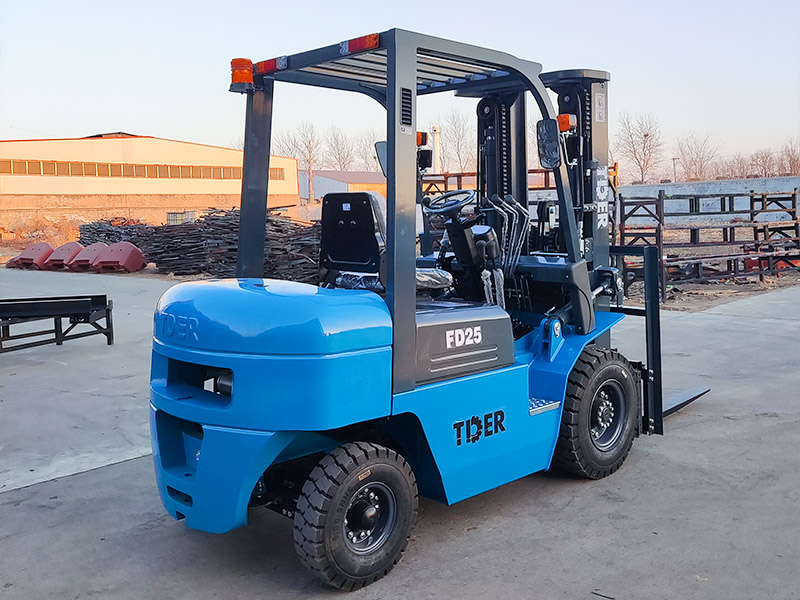

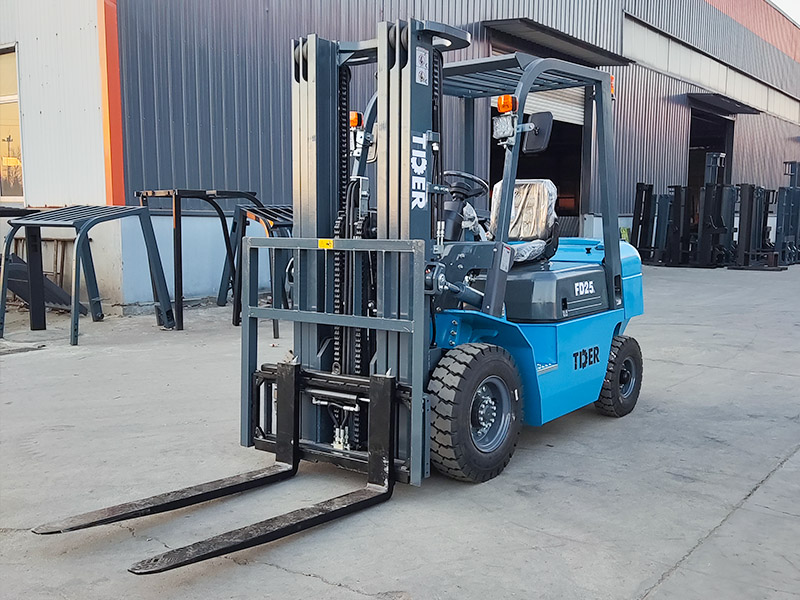

TDER B Series Diesel Forklift, as TDER's basic model, covers a wide range of capacities from 1.5 to 10 tons.This series continues TDER's commitment to high-quality manufacturing standards, offering excellent durability and reliability, especially in outdoor environments and medium to heavy-duty working conditions. They are widely used in industrial manufacturing, construction, port logistics, warehousing, and transportation.
The B-Series Diesel Forklifts combine versatility and cost-effectiveness, with stable power output and easy maintenance, resulting in a short return on investment period. They are the ideal choice for dealers and end-users alike. As one of TDER's trusted classic products, the B-Series not only demonstrates precise control over practical performance but also showcases TDER's professional expertise in continuous development and innovation in the industrial vehicle sector.
1.Powerful Power System: All small-tonnage models are equipped with high-quality Quanchai / Xichai engines, offering reliable power with low fuel consumption, strong durability, long service life, low noise, and minimal emission pollution, making them energy-efficient and environmentally friendly.
2.Comfortable Operating Experience: Equipped with a new type of steering wheel that is comfortable to operate and easy to adjust. Paired with top Chinese brand tires, the tires are wear-resistant, have excellent shock absorption and impact resistance, and help reduce operator fatigue during extended operations.
3.Efficient Air Intake Protection: The high-roof large-diameter air intake system effectively blocks dust, improves fuel efficiency, reduces engine wear, ensures stable performance output, extends the service life, and lowers the frequency of failures.
4.Safety Visibility Assurance: The wide-view mast design significantly reduces blind spots, providing a more comprehensive view during operation, improving operational accuracy and safety, and helping to avoid accidental collisions.
5.Intelligent Status Monitoring: Equipped with an LCD digital instrument panel, offering user-friendly human-machine interaction. It displays vehicle status clearly in real-time, assisting drivers in quickly acquiring information and improving work efficiency.
6.Economical and Durable Configuration: Equipped with a durable drive axle specially developed for continuous high-intensity operations. The axle structure is sturdy and impact-resistant, with low maintenance costs, long-lasting durability, reduced repair frequency and costs, and enhanced overall cost-effectiveness.
7.Sleek and Elegant Appearance: The exterior design is simple and elegant, combining aesthetics with practicality. It is suitable for various operational scenarios, enhancing the visual appeal and professional image.
| Model |
| FD25 |
| Rated lifting capacity | kg | 2500 |
| Load center distance | mm | 500 |
| Free lifting height | mm | 150 |
| Overall length (with/without forks) | mm | 3646/2576 |
| Width (mm) | mm | 1170 |
| Height of top shroud | mm | 2070 |
| Wheelbase | mm | 1600 |
| Minimum Ground Clearance | mm | 110 |
| Mast tilt angle (front/rear) | ° | 6/12 |
| Front Tire Size |
| 7.00-12-12PR |
| Rear Tire Size |
| 6.00-9-10PR |
| Minimum Turning Radius (Outside) | mm | 2240 |
| Minimum Right Angle Passage Width | mm | 3970 |
| Fork size | mm | 1070*100*45 |
| Maximum working speed (full/no load) | km/h | 17/19 |
| Max. lifting speed (full/no load) | mm/s | 530/550 |
| Maximum gradient (full/no load) | % | 20/21 |
| Forklift weight | kg | 3680 |
| Engine Brand |
| Xinchai |
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail.
