Diesel Forklift

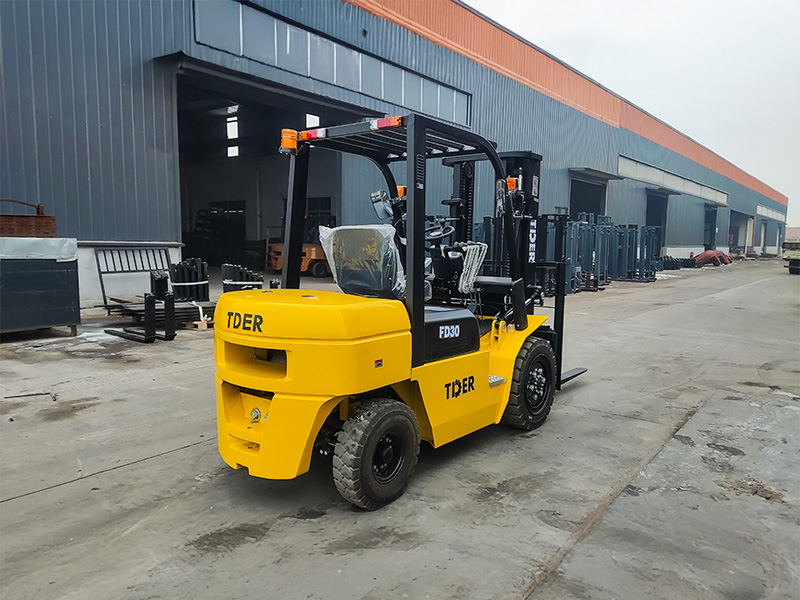

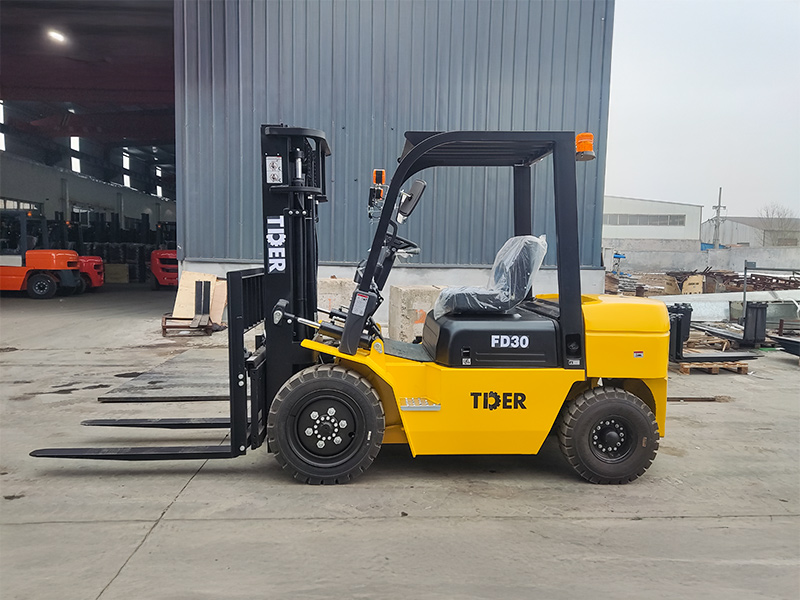

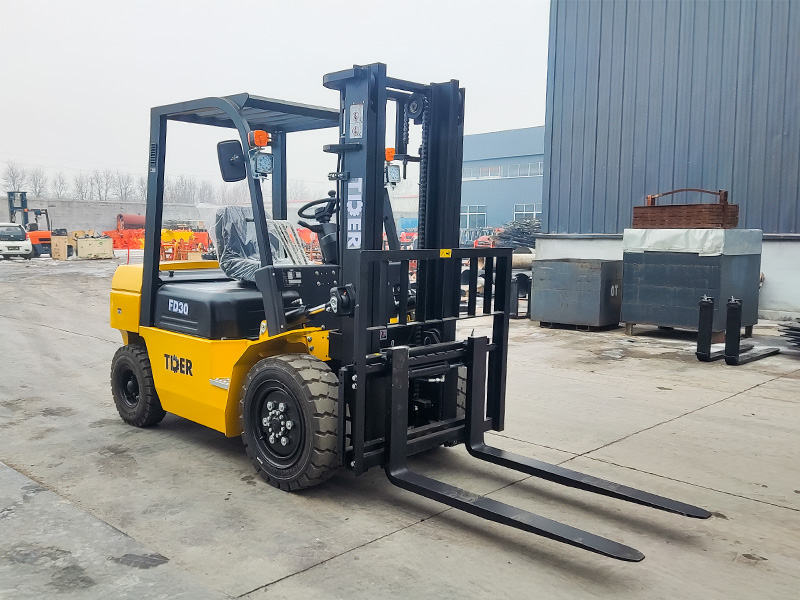

3 Tonne Diesel Forklift Truck


FD30


Rated Capacity: 3000kg


Lift Height: 3000mm


PRODUCT DETAILS

1.High-strength overhead guard The overhead guard is made of special-shaped steel pipe, with high strength and good cab sealing;

2.The aluminum plate-fin radiator with stronger heat dissipation performance and higher structural strength is adopted, independent oil radiator, optimized heat dissipation channel, and double ventilation hole balance greatly improves the cooling efficiency, improves the reliability of heavy-duty operation, and ensures the engine Works reliably;

3.The optional three-way catalytic device reduces harmful emissions next to the low-emission engine; the sound insulation cotton is used to reduce noise, and the high exhaust system is used to reduce dust.


Model
FD30
Power Type
Desiel
Rated Capacitykg3000
Load Centremm500
Lift Heightmm3000
Mast Tilt AngleF/RDeg6°/12°
Front Overhang (Wheel center to fork face)mm480
Ground Clearance(Bottom of mast)mm130
Length to face of fork(Without fork)mm2810
Overall Widthmm1230
Mast Lowered Heightmm2130
Turning Radius (outside)mm2560
Speed Travel (Full load)km/h19
TireFrontmm28x9-15-14PR
Rearmm6.50-10-10PR
Wheelbasemm1750
Battery Voltage/CapacityV/Ah12/80
EngineModel
4C2-50V33
Manufacture
QUANCHAI
Rated output/r.p.m.kw36.8/2500
Rated torque/r.p.m.N·m170/1800
No.of Cylinder
4
Bore×Strokemm93*105
Displacementcc2850
Fuel Tank CapacityL60


With technological innovation, our product configuration and parameters will continue to change without notice;

if there is any doubt, the specific confirmation of our international trade sales shall prevail.
