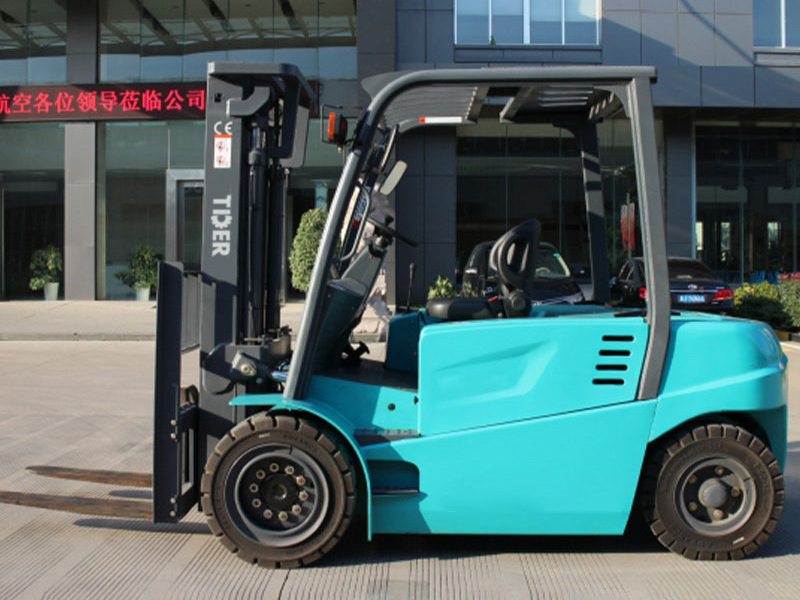

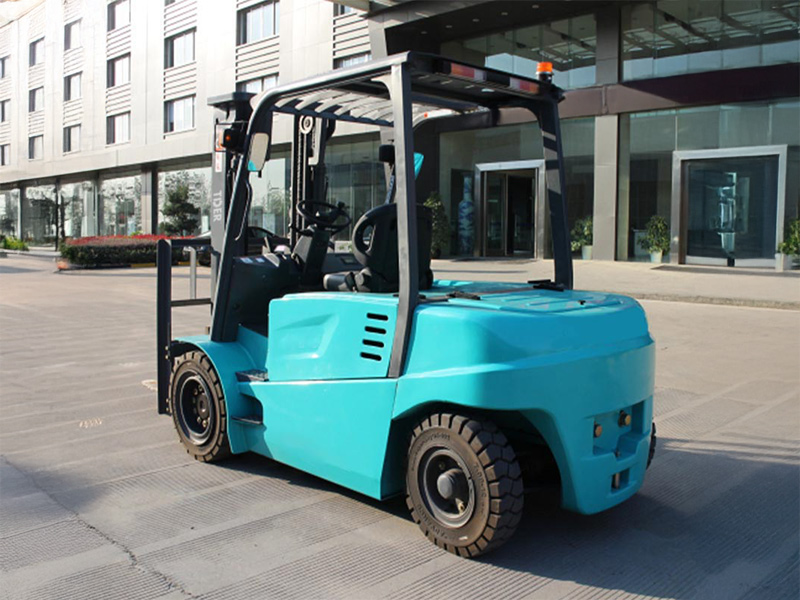

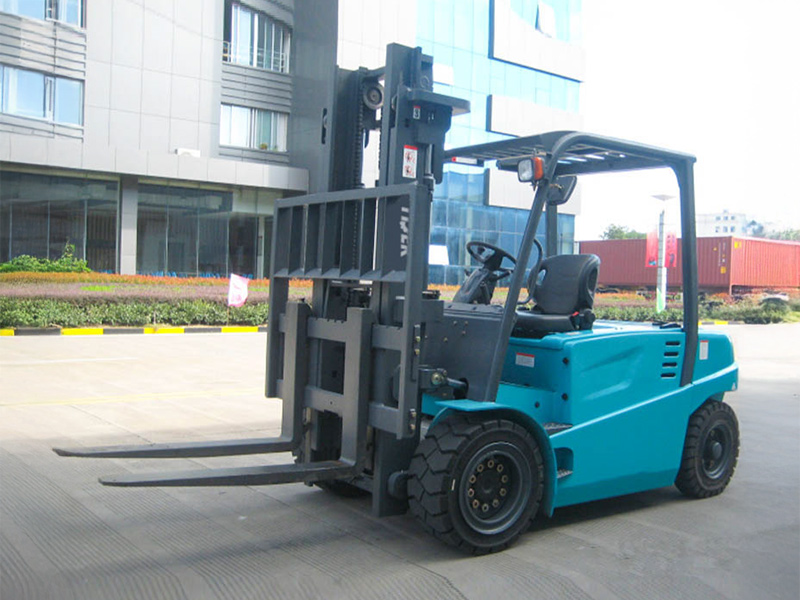

FB40
Rated Capacity: 4000kg
Lift Height: 3000mm
1. The core components such as gearbox and drive axle have low failure rate and reliable quality;
2. The hoisting system is equipped with a buffer function as standard, the goods fall smoothly and the operation is safer.
Model | FB40 | |
Load capacity | kg | 4000 |
Load center | mm | 500 |
Power type | Lead-Acid Battery | |
Mast tilt,forward/backward | / (°) | 6/12 |
Mast height after mast fall | mm | 2195 |
Standard mast height | mm | 3000 |
Overall length | mm | 2890 |
Wheelbase | mm | 1900 |
Vehicle width | mm | 1410 |
Turning radius | mm | 2700 |
Walking speed loaded | km/h | 14 |
Level voltage/capacitance | v/ah | 80/550 |
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail.
