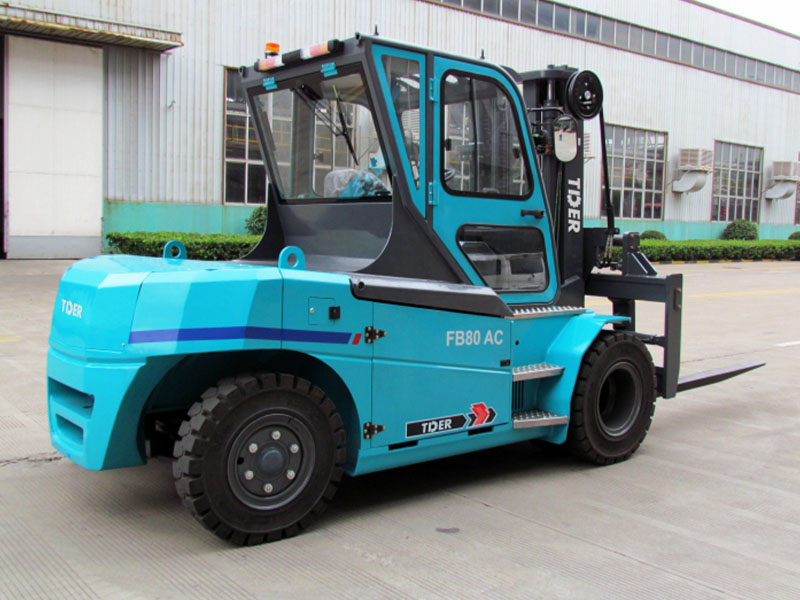

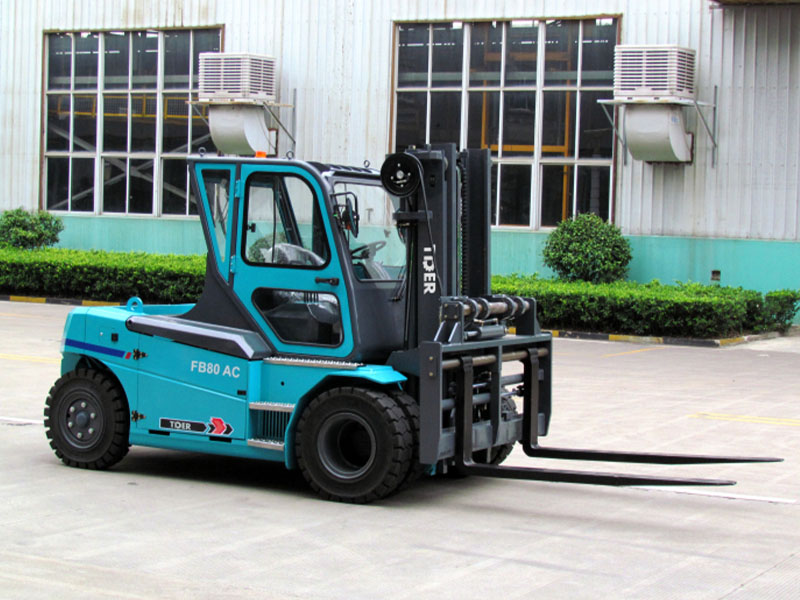

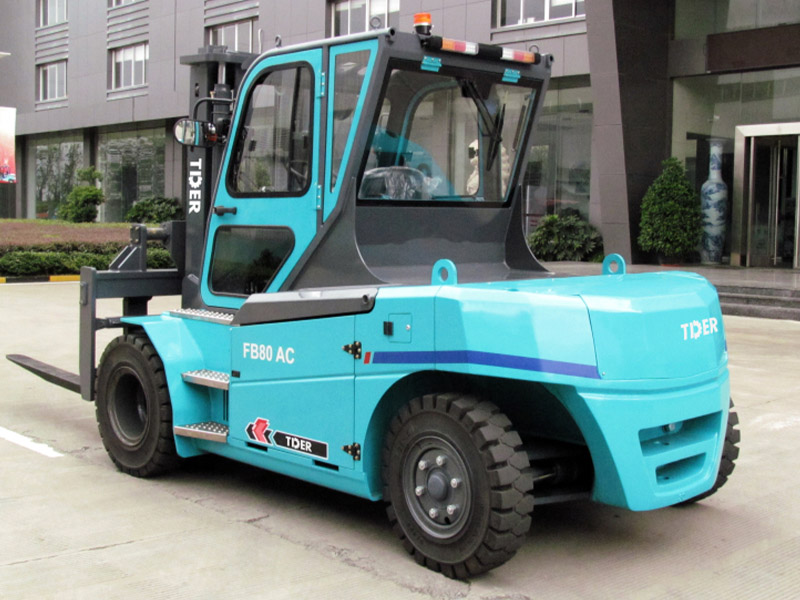

FB80
Rated Capacity: 8000kg
Lift Height: 3000mm
1.The superpowered driving and lifting DC motor has good performance of speed regulation, and it can realize large starting and breaking torque function;
2.The hoisting system is equipped with a buffer function as standard, the goods fall smoothly and the operation is safer;
3.The gantry channel steel, oil cylinder and chain are optimally arranged, and the front view is wide.
Model | FB80 | |
Load capacity | kg | 8000 |
Load center | mm | 600 |
Power type | Lead-Acid Battery | |
Mast tilt,forward/backward | / (°) | 6/10 |
Mast height after mast fall | mm | 2600 |
Standard mast height | mm | 3000 |
Overall length | mm | 3780 |
Wheelbase | mm | 2450 |
Vehicle width | mm | 2200 |
Turning radius | mm | 3350 |
Walking speed loaded | km/h | 14 |
Level voltage/capacitance | v/ah | 80/1150 |
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail.
