Heavy Duty Forklift

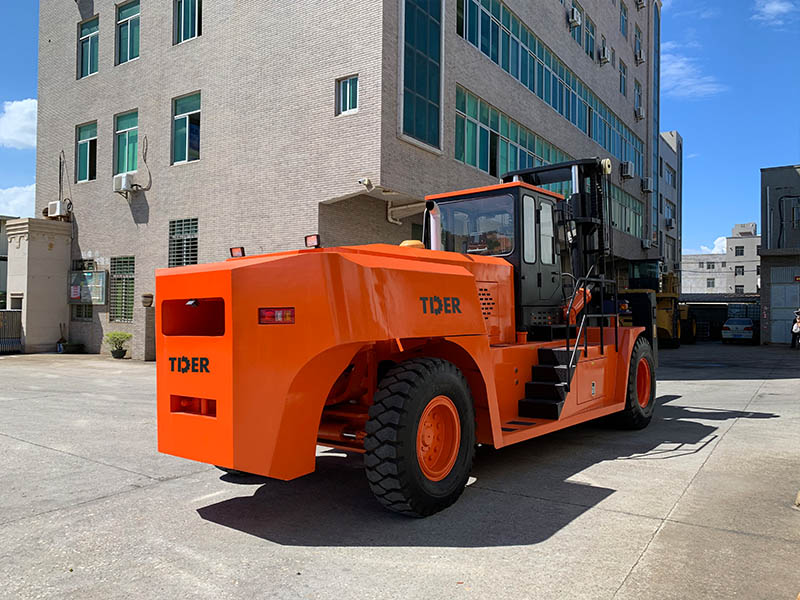

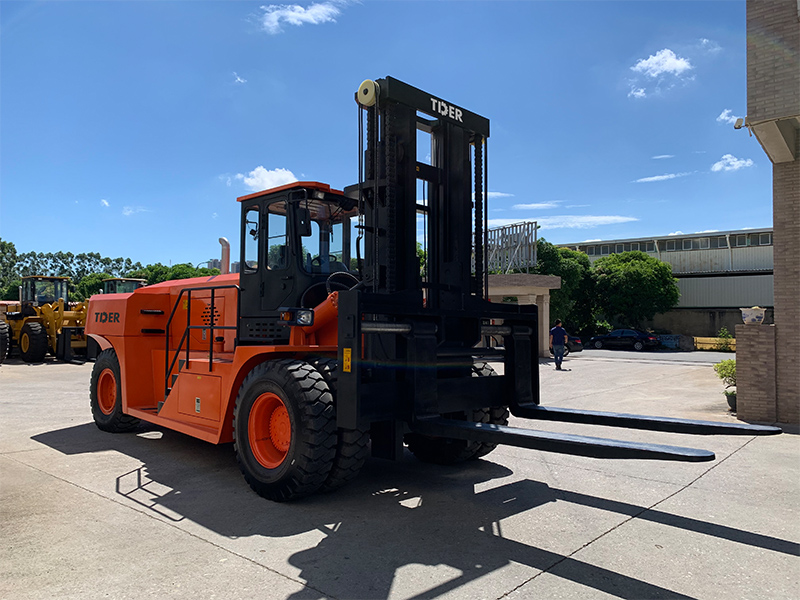

30 Tonne Diesel Forklift Truck


FD300


Rated Capacity: 30000kg


Lift Height: 4000mm


PRODUCT DETAILS

1.Reliable structure design, through finite element analysis, kinematics, dynamics simulation calculation and harsh fatigue, vibration and other tests, to ensure that the structure of the whole forklift is reliable and durable;

2.The gearbox adopts a variety of control programs integrated into an integrated control component, which can easily realize various control operations, and has a fault diagnosis instrument, which greatly simplifies maintenance and maintenance;

3.The gantry is sturdy and durable, and has a good vision;the fork adopts a rolling structure to reduce the resistance of the cargo side shifting distance adjustment.


Model
FD300
Power Type
Diesel
Rated Capacitykg30000
Load Centremm900
Lift Heightmm4000
Mast Tilt AngleF/RDeg5°/10°
Front Overhang (Wheel center to fork face)mm1240
Ground Clearance(Bottom of mast)mm250
Length to face of fork(Without fork)mm6855
Overall Widthmm3050
Mast Lowered Heightmm4000
Turning Radius (outside)mm6500
Speed Travel (Full load)km/h25
TireFrontmm14.00-24
Rearmm14.00-24
Wheelbasemm4650
Battery Voltage/CapacityV/Ah24/180
EngineModel
TAD750VE
Manufacture
VOLVO
Rated output/r.p.m.kw181/2300
Rated torque/r.p.m.N·m1050/1500
No.of Cylinder
6
Bore×Strokemm130×108
Displacementcc7150
Fuel Tank CapacityL420


With technological innovation, our product configuration and parameters will continue to change without notice;

if there is any doubt, the specific confirmation of our international trade sales shall prevail.
