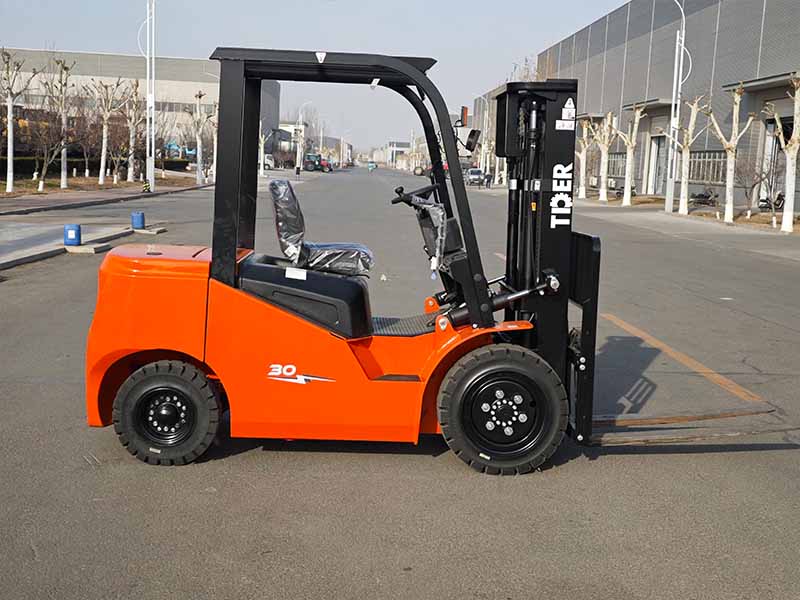

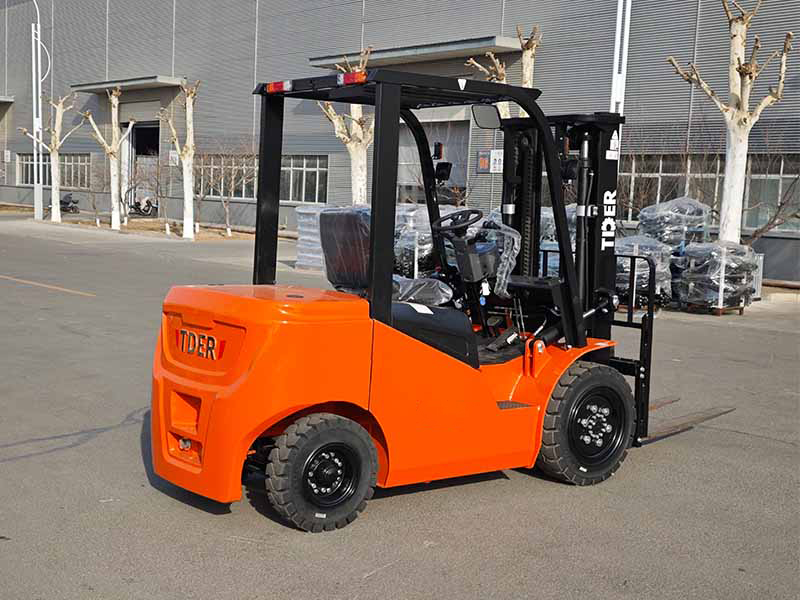

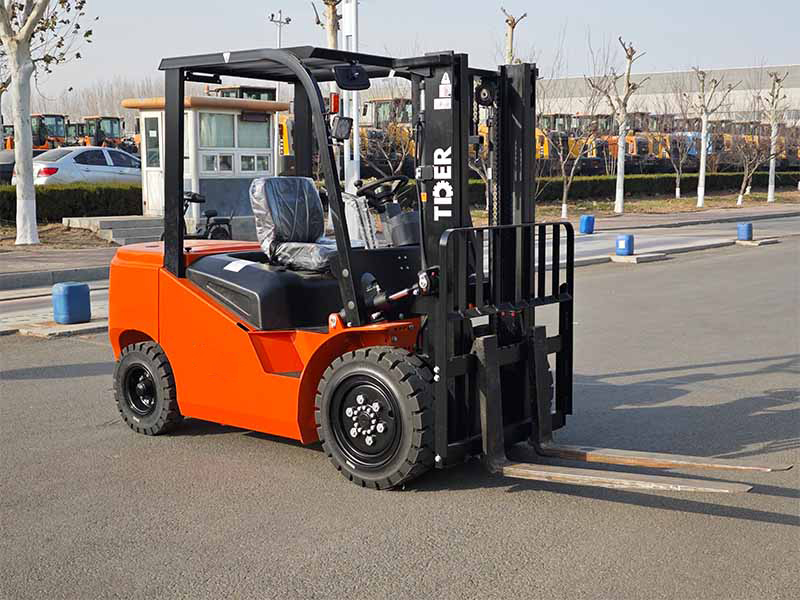

FB25
Rated Capacity: 2500kg
Lift Height: 3000mm
1. TDER Li-ion Forklift Truck select the highest safety lithium iron phosphate battery.
2. Lithium battery quality assurance 5 years or 10000h
3. After 4000 cycles of use, the capacity can keep more than 75%
4. The core components such as gearbox and drive axle have low failure rate and reliable quality;
5. The hoisting system is equipped with a buffer function as standard, the goods fall smoothly and the operation is safer.
Model | FB25 | |
Load capacity | kg | 2500 |
Load center | mm | 500 |
Power type | LiFePO4 Battery | |
Mast tilt,forward/backward | / (°) | 6/12 |
Mast height after mast fall | mm | 1995 |
Standard mast height | mm | 3000 |
Overall length | mm | 2353 |
Wheelbase | mm | 1500 |
Vehicle width | mm | 1170 |
Turning radius | mm | 2172 |
Walking speed loaded | km/h | 12 |
Level voltage/capacitance | v/ah | 48/450 |
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail.
