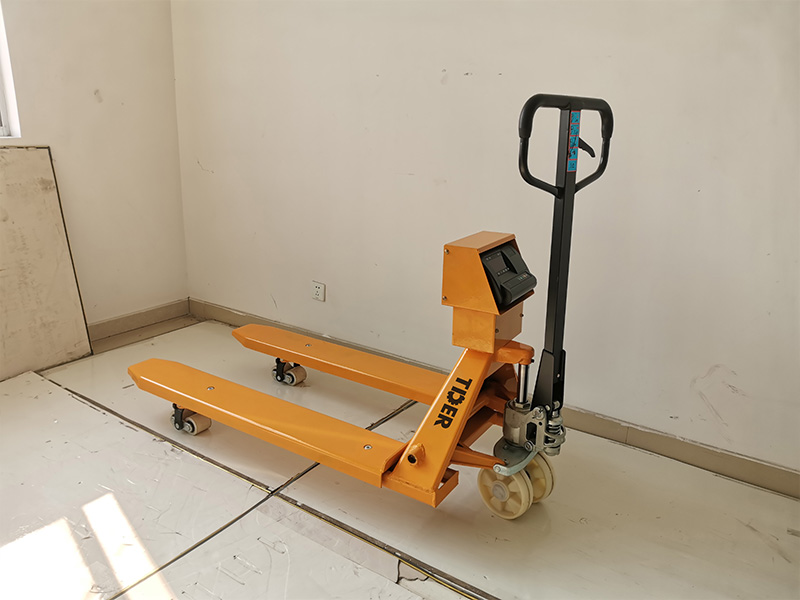

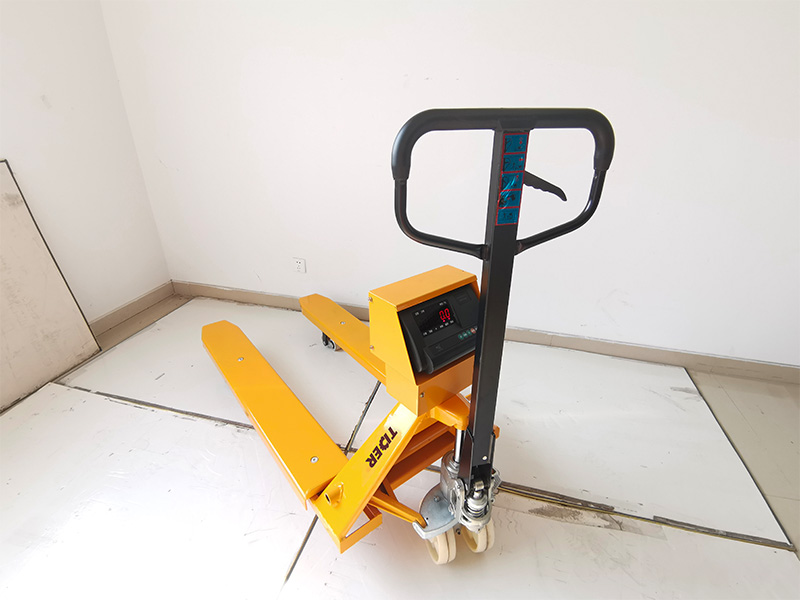

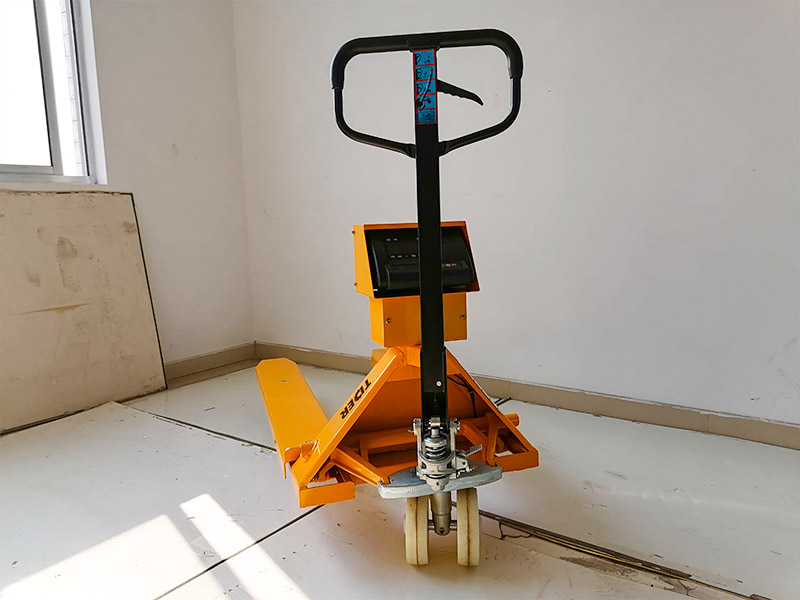

HPT15
Rated capacity:1500kg
Lifting height: 115mm
1.【Good applicability】The various models are not only suitable for standard Euro pallets, but can also be used to transport special and display pallets. This is ensured by adjustable forks and selectable fork lengths.
2.【Suitable for working in narrow space】The short length of the front allows easy operation in the narrowest space.
3.【Easy to operate】The enhanced hydraulic system reduces the necessary pumping force. A special lowering valve enables gentle lowering of the load with utmost precision.
Model | HPT15 | |
Drive | Electric | |
Operator type | Pedestrian | |
Load capacity | kg | 1500 |
Load center distance | mm | 600 |
Load distance, centre of drive axle to fork | mm | 883/946 |
Wheelbase | mm | 1202/1261 |
Service weight | kg | 180 |
Tyre type | Polyurethane | |
Tyre size(front) | mm | φ210x70 |
Tyre size(near) | mm | φ80x61 |
Lift height | mm | 115 |
Lowered height | mm | 80 |
Overall length | mm | 1638 |
Overall width | mm | 560(685) |
Fork dimensions | mm | 50/150/1150 |
Ground clearance, center of wheelbase | mm | 30 |
Aisle width for pallets 1000*1200 crossways | mm | 2280 |
Aisle width for pallets 800x1200 crossways | mm | 2150 |
Turning radius | mm | 1475 |
Travel speed(laden/unladen) | km/h | 4.5/5 |
Service brake | Electromagnetic | |
Drive motor rating S2 60 min | KW | 0.75 |
Lift motor rating at S3 15% | KW | 0.84 |
Battery voltageinominal capacity | V/Ah | 24/65 |
Type of drive control | DC | |
Steering design | Machanical |
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail.
