HPT20-HPT30
Rated Load: 2000-3000kg
Lifting Height: 200mm

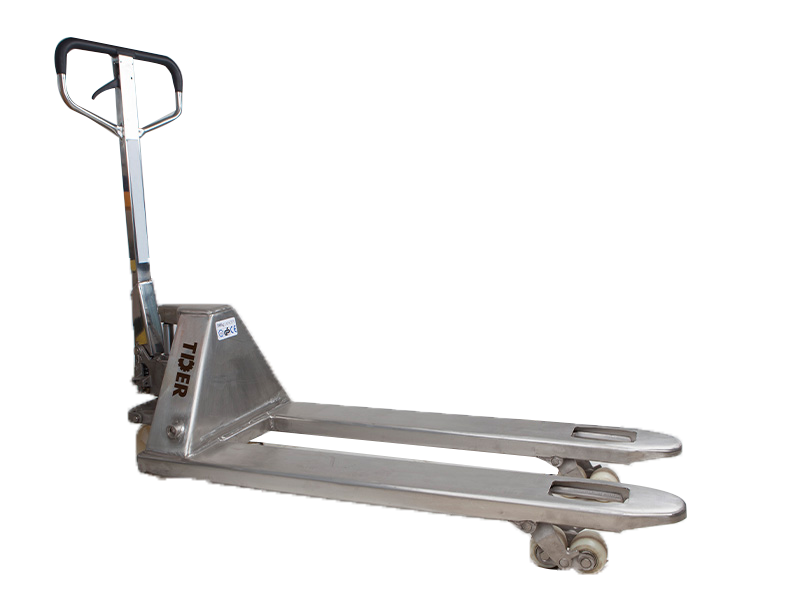

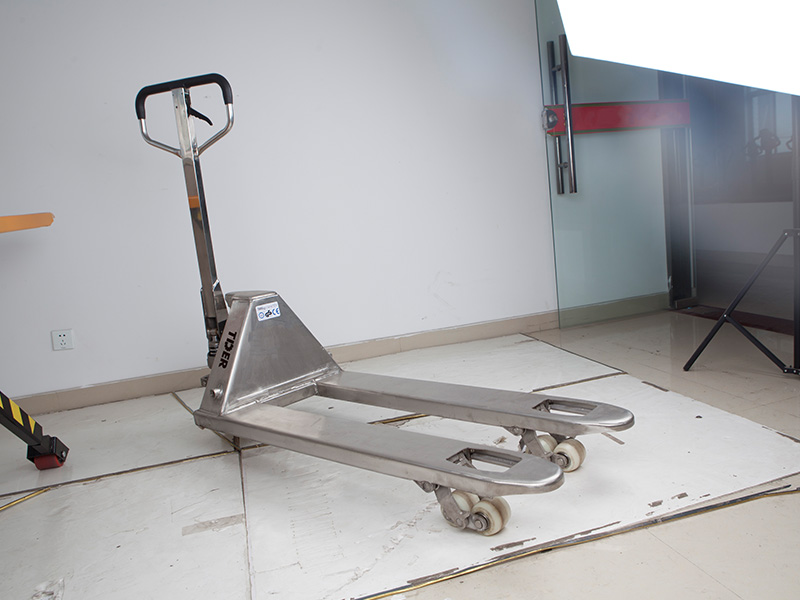

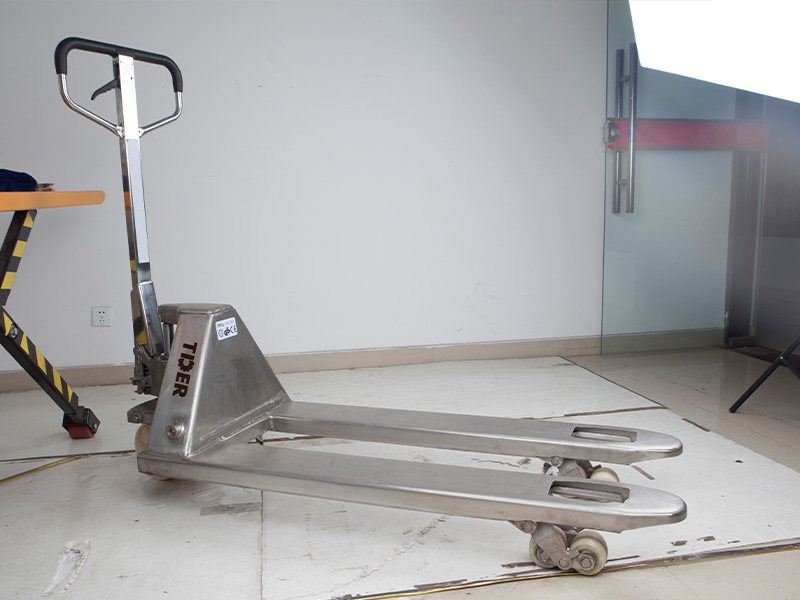

TDER Stainless Steel Hand Pallet Truck is constructed from stainless steel, making it ideal for pallet handling in food, pharmaceutical, chemical, and humid environments. It offers excellent corrosion resistance and meets the daily handling requirements in clean and hygienic workplaces.
1. Stainless Steel Vehicle Structure: Made of stainless steel material with excellent corrosion and rust resistance, suitable for high hygiene and humid environments.
2. Multiple Load Capacity Options: Available in 2T / 2.5T / 3T specifications to cover common handling needs, offering more flexible model selection.
3. Stable Lifting Performance: Maximum lifting height of 200mm, smooth lifting and lowering process, meeting standard pallet loading and unloading operations.
4. Compact Size Design: Various fork lengths and widths available, small turning radius, making operation in narrow aisles more convenient.
5. Smooth Pushing Experience: Equipped with Φ180 steering wheels, offering low pushing resistance and flexible steering, reducing fatigue during prolonged use.
| Model | HPT-20 | HPT-25 | HPT-30 | |
| Capacity | Q(kg) | 2000 | 2500 | 3000 |
| Lowered fork height | h13(mm) | 85 | 85 | 85 |
| Steering wheel | mm | Φ180x50 | Φ180x50 | Φ180x50 |
| Max. lift height | h3(mm) | 200 | 200 | 200 |
| Total height | h14(mm) | 1214 | 1214 | 1214 |
| Overall length | l1(mm) | 1483 | 1533 | 1603 |
| Fork length | l(mm) | 1150/1220 | 1150/1220 | 1150/1220 |
| Width Overall forks | b5(mm) | 550/685 | 550/685 | 550/685 |
| Ground clearance, center of wheel base | m2(mm) | 40 | 40 | 40 |
| Aisle width for Pallet 1000*1200 crossways | AST(MM) | 1683 | 1733 | 1803 |
| Aisle width for Pallet 800*1200 lengthways | AST(MM) | 1783 | 1783 | 1803 |
| Turning radius | Wa(mm) | 1216 | 1266 | 1336 |
| Fork dimension | mm | 1150/1220x160x51 | 1150/1220x160x51 | 1150/1220x160x51 |
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail.
