FEP20-30
Rated load: 2000-3000kg
Lifting height: 205mm

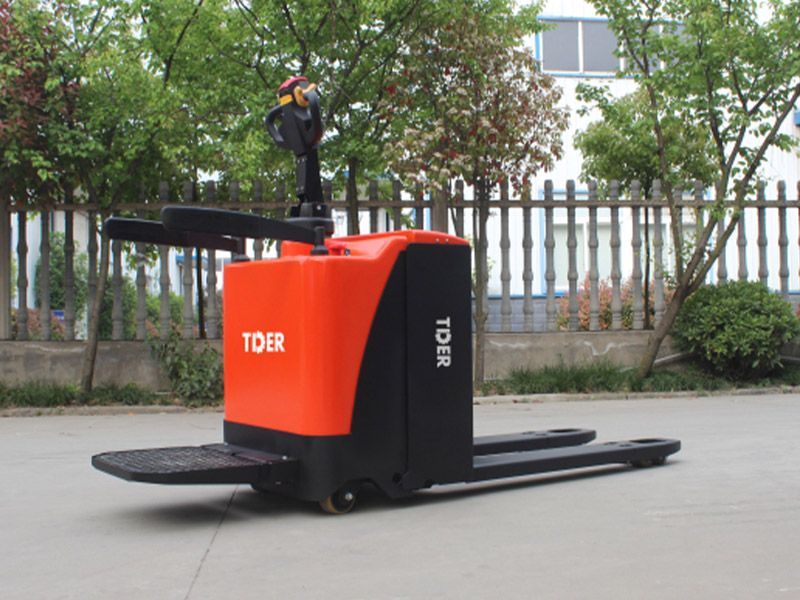

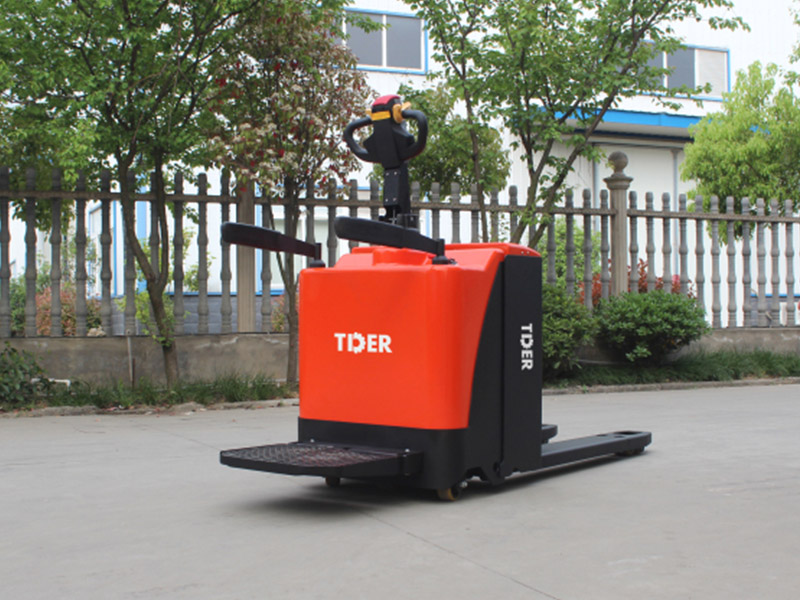

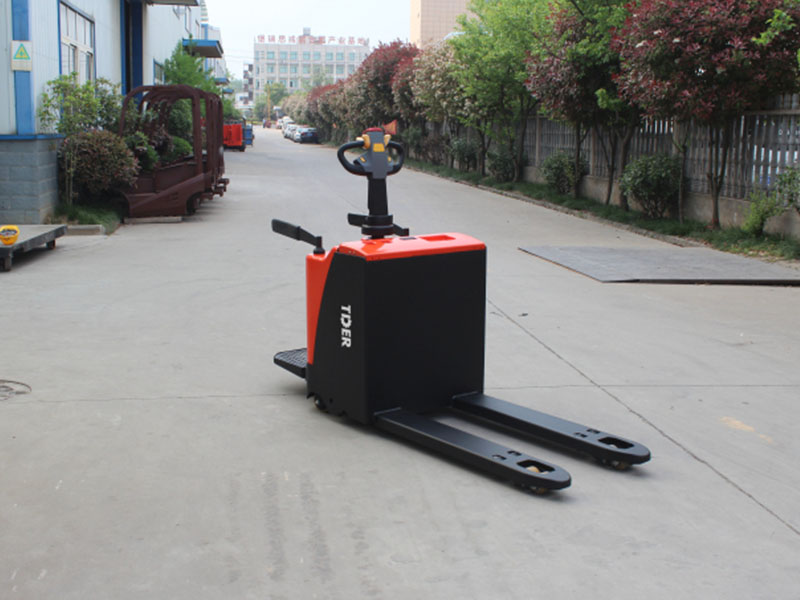

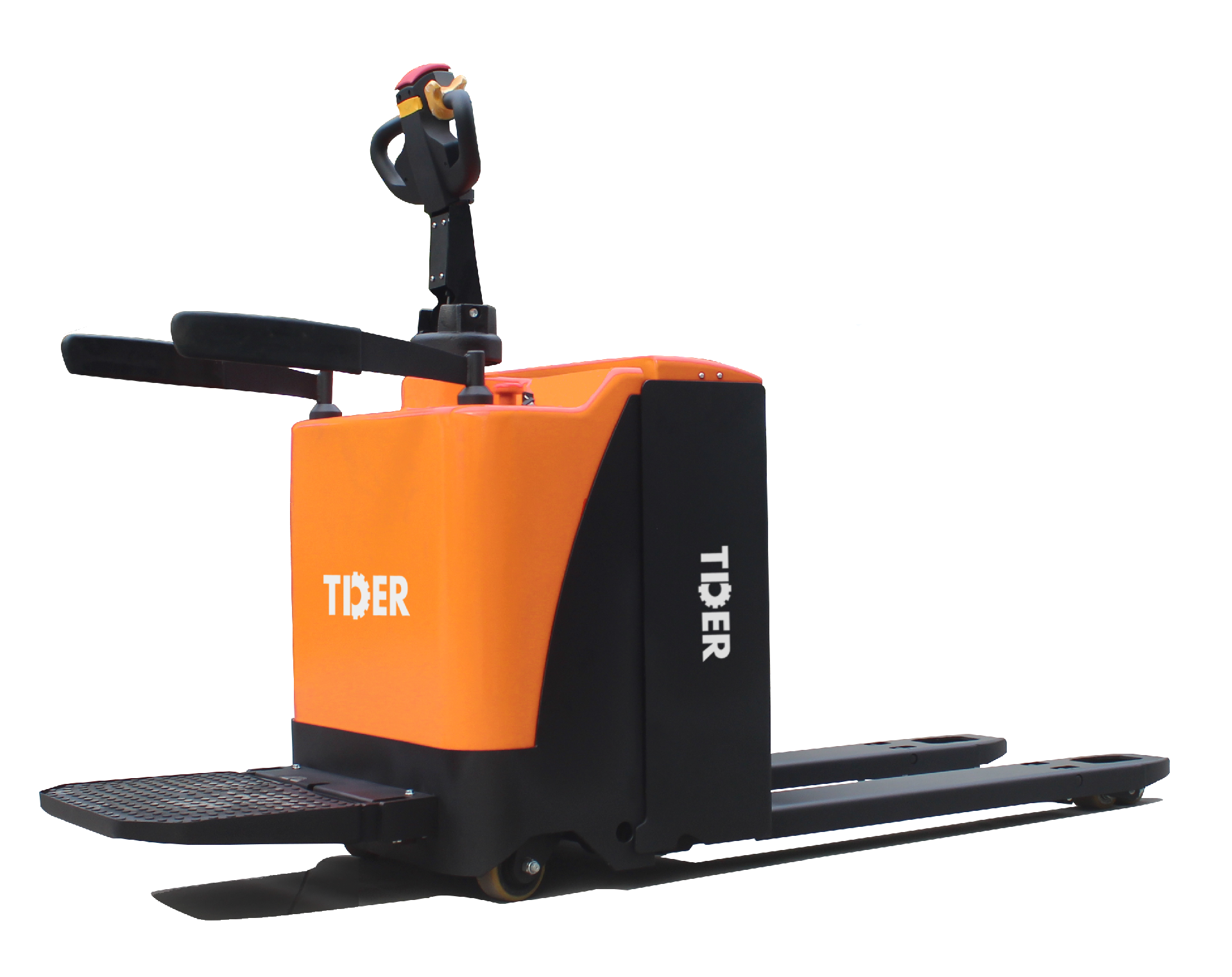

TDER Stand-on Electric Pallet Truck is designed for pallet handling in warehouses, logistics centers, and workshops. Featuring a stand-on driving mode, it enhances material handling efficiency while ensuring operator comfort, ideal for high-frequency and fast-paced pallet operations.
1. Compact Body, Flexible Passage: The vehicle features a compact structure with a small turning radius, suitable for narrow aisles and dense pallet operations.
2. Stable Drive Structure Design: The drive system uses a centrally mounted floating structure for balanced force distribution, ensuring stable and tilt-resistant turning.
3. Multiple Safety Protection Features: Equipped with reverse anti-collision switch and dual electromagnetic and mechanical brakes, comprehensively enhancing driving safety.
4. Powerful Drive System: 48V electrical platform provides stable and sufficient power output, meeting high-frequency continuous operation demands.
5. Maintenance-Free Battery Solution: Equipped with large-capacity maintenance-free battery and built-in charger for easier use and maintenance.
6. Comfortable Stand-on Driving Experience: Comfortable pedal feel with shock absorbers effectively absorbing vibrations, reducing fatigue during long operation.
7. Intelligent Lifting Protection: Standard lifting electric limit switch automatically cuts power when forks reach the top, reducing energy consumption and extending system life.
8. Comprehensive Operator Protection: Equipped with protective arm structure to reduce the risk of misoperation and improve overall operational safety level.
| Model | FEP20 | FEP25 | FEP30 | |
| Drive Type | Electric | |||
| Operation Mode | Standing | |||
| Rated Load Capacity | kg | 2000 | 2500 | 3000 |
| Load Center | mm | 600 | ||
| Front Overhang | mm | 1039 | ||
| Wheelbase | mm | 1567 | ||
| Weight (including battery) | kg | 810 | 830 | 850 |
| Tire Type | PU | |||
| Drive Wheel Size | Ø×w(mm) | Ø250×75 | ||
| Load Wheel Size | Ø×w(mm) | Ø80×80 | ||
| Counterweight Wheel Size | Ø×w(mm) | Ø115×55 | ||
| Number of Drive Wheels, Counterweight/Load Wheels (x=Drive Wheel) | 1x+2/4 | |||
| Track Width, Drive End | mm | 580 | ||
| Track Width, Load End | mm | 355/500 | ||
| Lifting Height | mm | 115 | ||
| Minimum/Maximum Height of Control Handle | mm | 1150/1455 | ||
| Minimum Fork Height | mm | 85 | ||
| Overall Length | mm | 1925 | ||
| Overall Length | mm | 756 | ||
| Overall Width | mm | 808 | ||
| Fork Dimensions | mm | 50/185/1150(1220) | ||
| Fork Outer Width | mm | 540/685 | ||
| Ground Clearance at Center of Wheelbase | mm | 35 | ||
| Aisle Width: 1000x1200 Pallet | mm | 2560 | ||
| Aisle Width: 800x1200 Pallet | mm | 2395 | ||
| Turning Radius | mm | 1760 | ||
| Travel Speed, Full Load/Empty Load | km/h | 5.2/5.5 | 5.2/5.5 | 5.2/5.5 |
| Lifting Speed, Full Load/Empty Load | mm/s | 22/28 | 18/20 | 15/18 |
| Lowering Speed, Full Load/Empty Load | mm/s | 30/20 | 32/18 | 35/16 |
| Maximum Gradeability, Full Load/Empty Load | % | 6/8 | ||
| Brake Type | Electromagnetic | |||
| Drive Motor Power | kW | 1.5 | 2.0 | 2.5 |
| Lifting Motor Power | kW | 0.8 | 1.5 | 1.5 |
| Battery Voltage/Capacity | V/Ah | 24/210 | ||
| Battery Weight (±5%) | kg | 210 | ||
| Drive Control Type | AC | |||
| Noise Level | dB(A) | ≤70 | ||
| Steering Type | EPS | |||
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail.
