Reach Truck

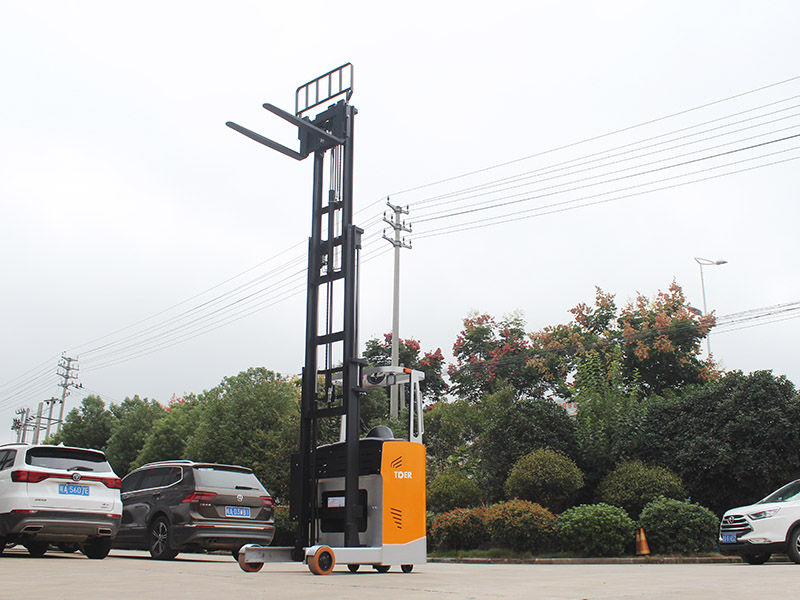

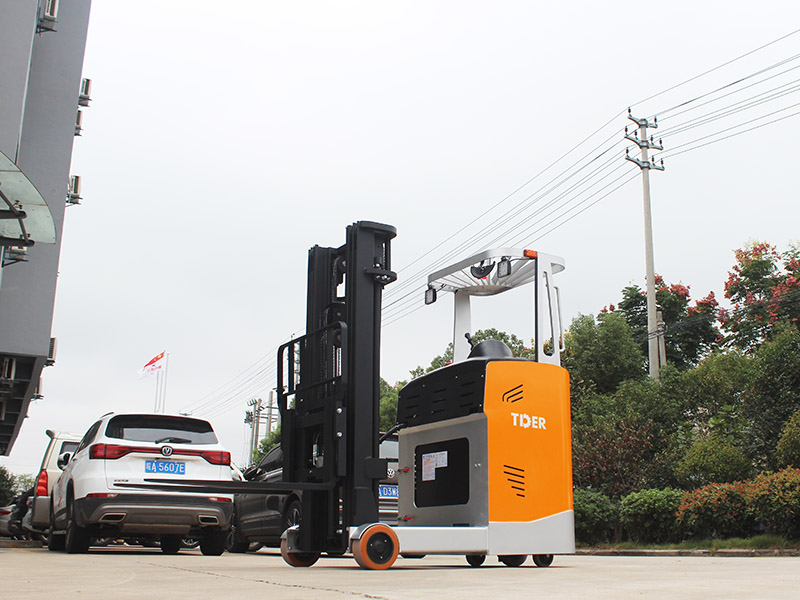

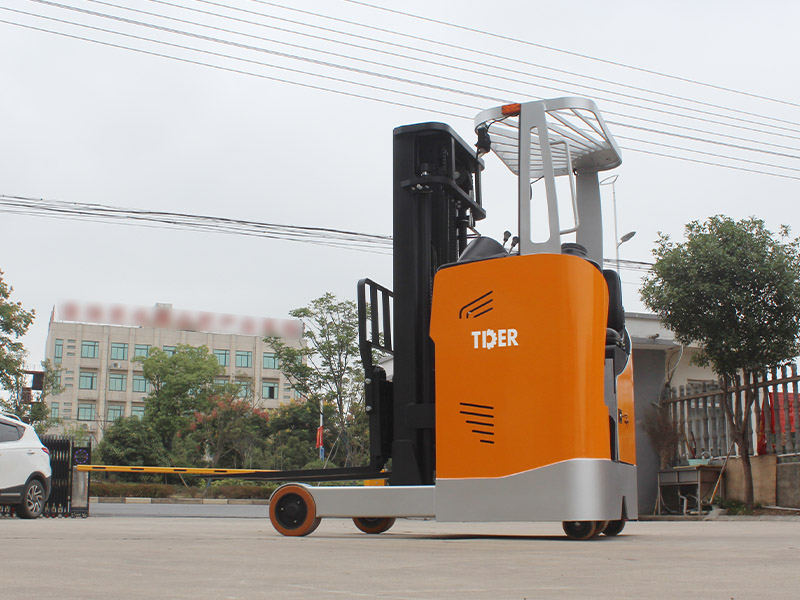

24V Seat Type Reach Truck


Rated load: 1200-2000kg

Lifting height: 4500mm


1.Have safety travelling speed limited device in the mast;

2.Full hydraulic steering system makes turning easy and flexible;

3.Adopts hydraulic brake for two front wheel and electric brake for electric brake for driving motor.

Power TypeElectric
Operation typeSeated Type
Load centermm500500500
Front overhangmm180180180
Total weight including the batterykg199521802535
Mast height (fork lowering)mm212021202120
Max Lifting Heightmm450045004500
Overhead guard heightmm209020902090
Fork height when gantry retractedmm353540
Mast/carriage tilt angle(front/rear)α/β(°)3/53/53/5
Overall height(with forks) mm230423042389
Overall length  (without fork) mm168916891874
Overall widthmm109010901090
Fork dimensionmm35/100/107035/100/107040/122/1070
Fork spreadmm210-705210-705244-705
Reach distancemm500500600
Min ground clearance
Turning radiusmm160016001780
Driving motorkw1.52.52.5
Lifting motorkw3DC3DC3DC
Battery typeLead acid battery
Battery capacityV/Ah24/28024/28024/280

With technological innovation, our product configuration and parameters will continue to change without notice;

if there is any doubt, the specific confirmation of our international trade sales shall prevail.
