Reach Truck

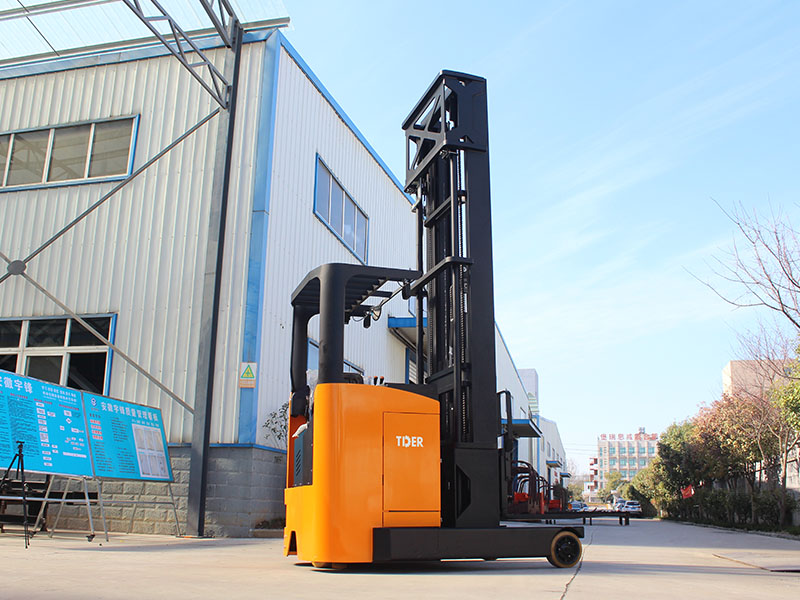

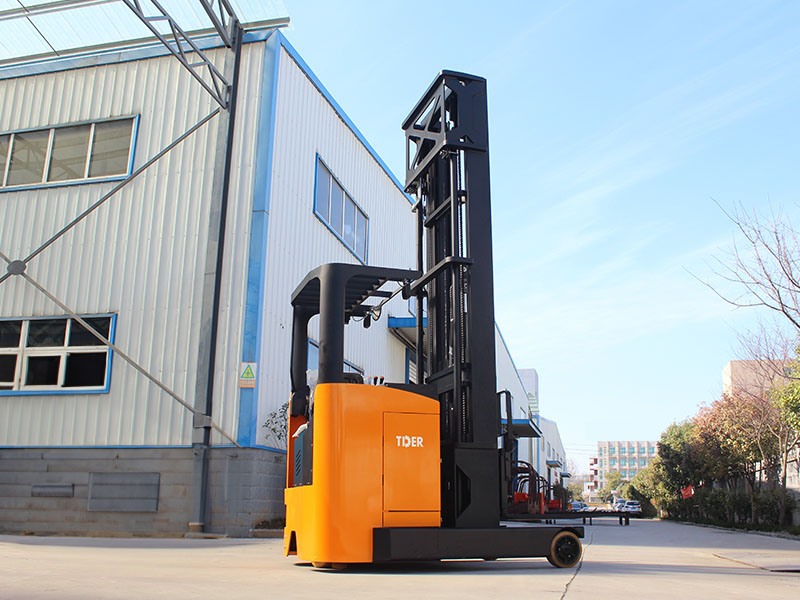

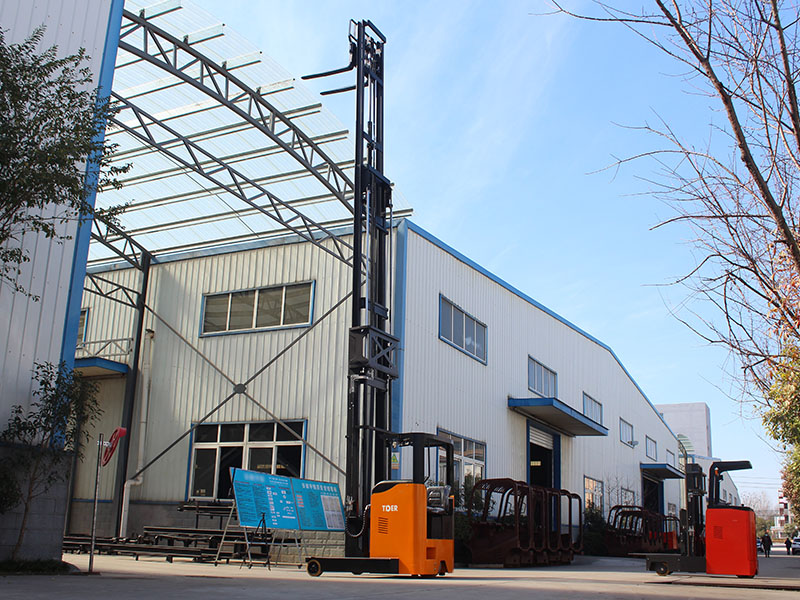

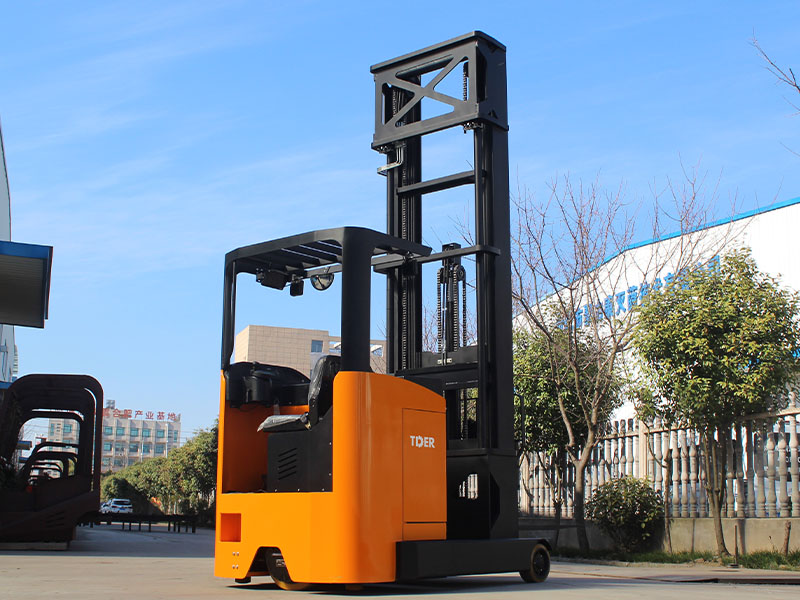

48V Seat Type Reach Truck


ERF15-20


Rated load: 1500-2000kg


Lifting height: 4500-12000mm


PRODUCT DETAILS

1.With electric magnetic multi-valve;

2.Multi-function display, brake status, driving direction, hour meter, driving speed, fault code etc;

3.48V -3 phase AC type with large capacity battery 1000Ah.


Model
ERF15ERF20ERF20
Power Type
electric
Operation type
Seated Type
CapacityQ(kg)150020002000
Load centerC(mm)500500500
wheelbaseY(mm)147016201650
Reach distanceL(mm)505655610
Total weight including the batterykg300030505860
Max Lifting Heighth3(mm)4500450012000
Overall height(with forks)   I2(mm)2000/24772000/24772030/2515
Overall widthb1(mm)127012701270/1460
Fork dimensions/e/l(mm)35/100/107040/122/107040/122/1070
Min ground clearancem2(mm)707070
Turning radiusWa(mm)180019001922
Driving motorkw6.56.56.5
Lifting motorkw6.3DC6.3DC12 AC
Battery type
Lead acid battery
Battery capacityV/Ah48/30048/40048/400
Charger-IntelligentV/A48/4048/5048/50


With technological innovation, our product configuration and parameters will continue to change without notice;

if there is any doubt, the specific confirmation of our international trade sales shall prevail.
