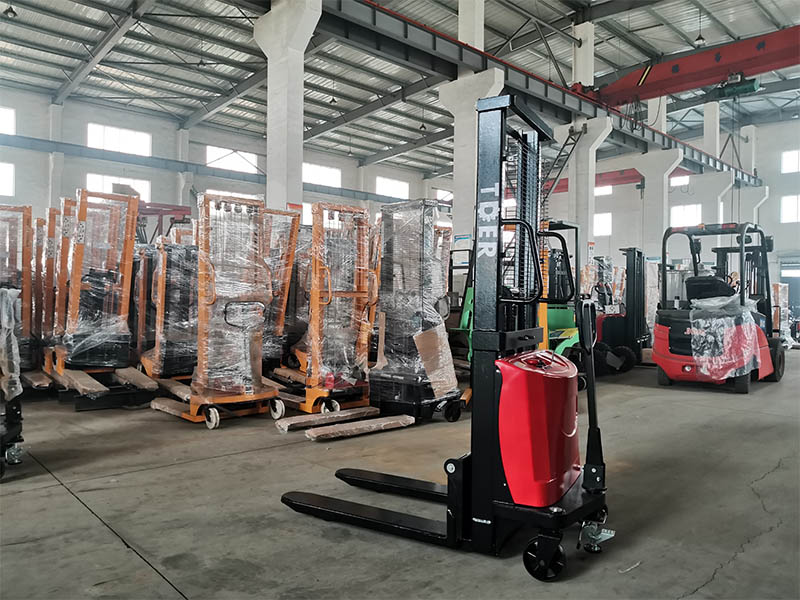

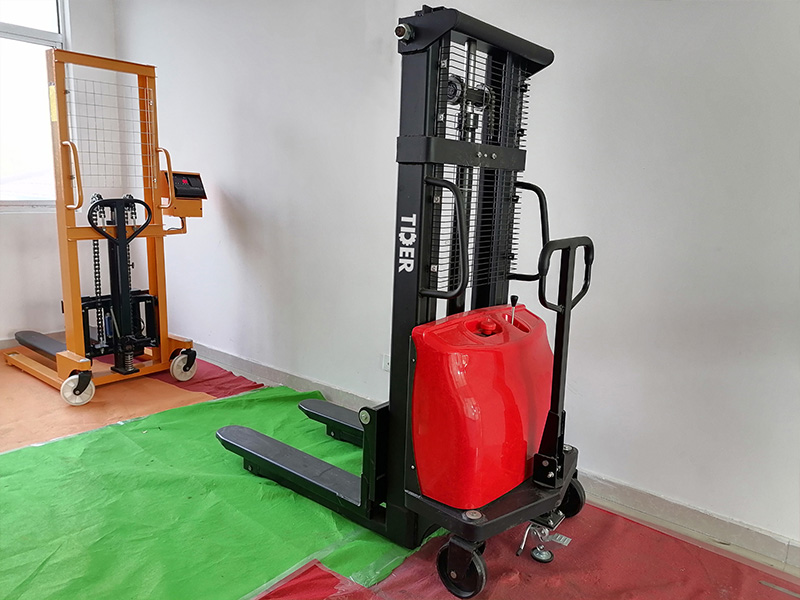

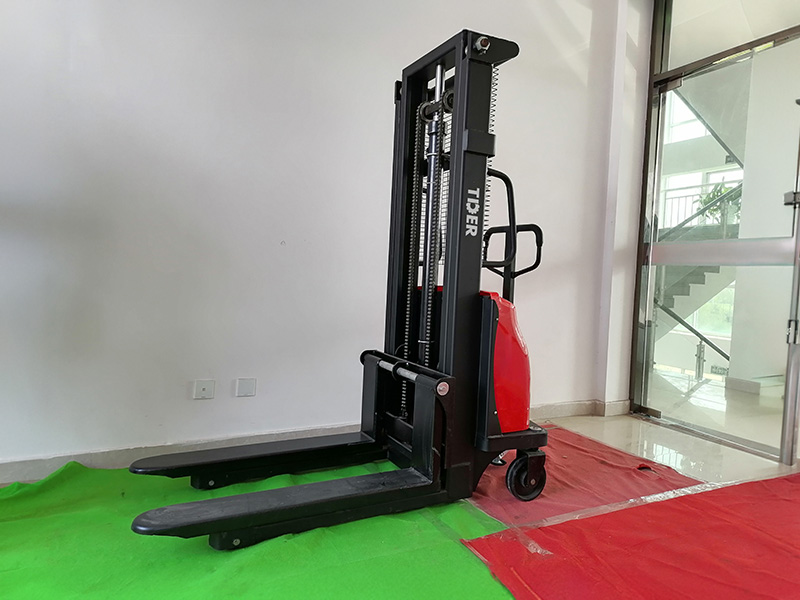

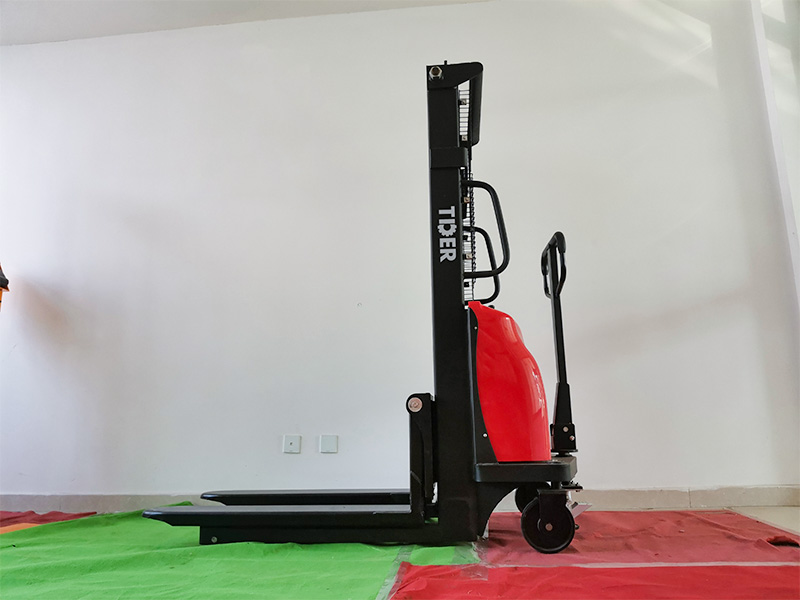

STES10-20
Rated load: 1000-2000kg
Lifting height: 1600-3500mm
1.The quality of the parts directly affects the lifting speed of the fork, which have good overall sealing performance and strong improvement
2.The quality of steel directly affects the bearing capacity and durability of the bearing, steel plate has a strong bearing capacity. thick and corrosion resistant
3.The structure of the fork directly affects the bearing capacity. We use thickened and reinforced forks, which have strong bearing capacity, corrosion resistance and not easy to deform.
Capacity | kg | 1000 | 1500 | 2000 |
Load Center | mm | 450 | 450 | 450 |
Lifting height | mm | 1600/2000/2500/3000/3500 | ||
Mast lowered height | mm | 2080/1680/1880/2080/2280 | ||
Min Fork Height | mm | 90 | 90 | 90 |
Fork Length | mm | 1000 | ||
Overall length | mm | 1580 | ||
Fork adjustbale width | mm | 680 | ||
Overall Width | mm | 800 | ||
Min. Turning Radius | mm | 1400 | ||
Whell Base | mm | 1185 | ||
Front Wheel Distance | mm | 316 | ||
Lifting Motor | v/kw | 12/1.6 | ||
Battery | v/Ah | 12/120 | 12/120 | 12/120 |
Lifting speed,no load/full load | mm/s | 80/130 |
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail.
