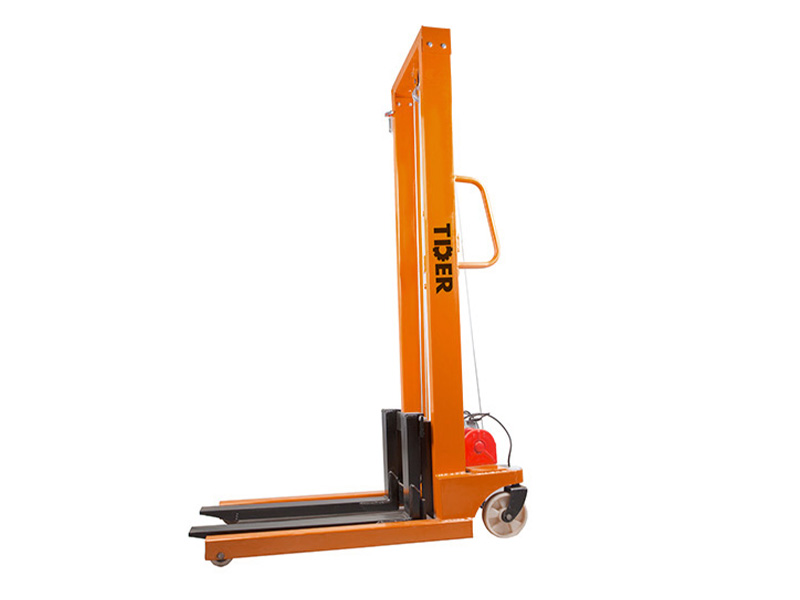

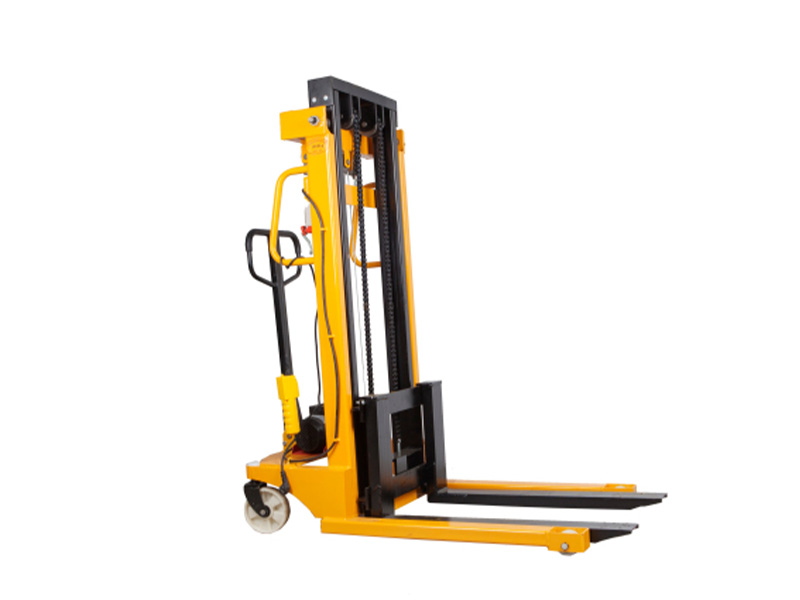

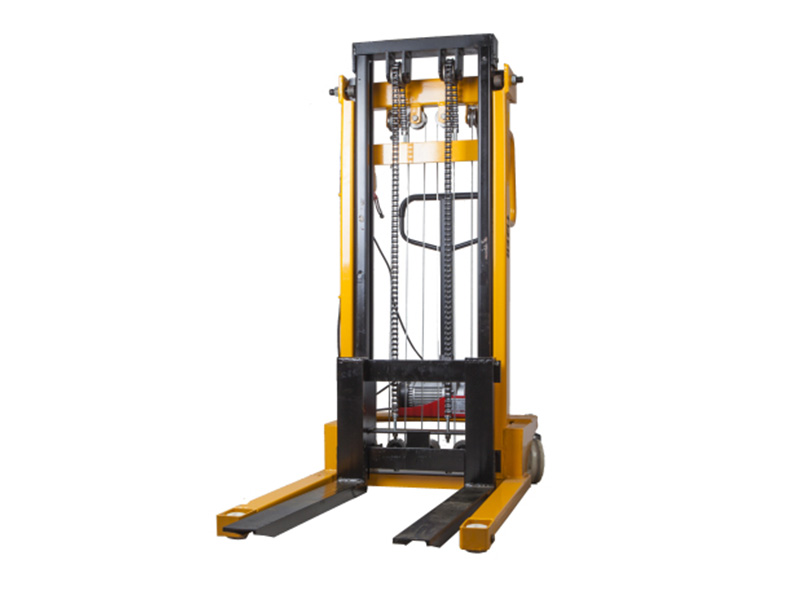

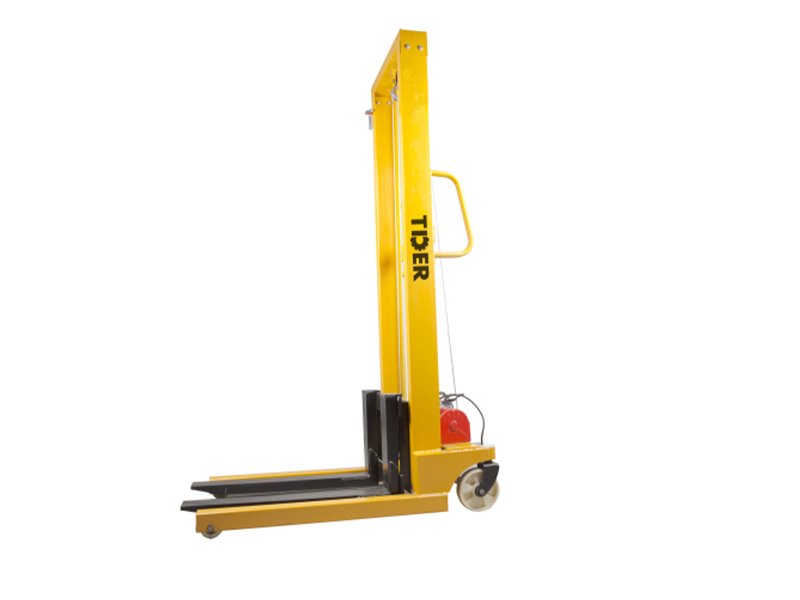

Pallet Stacker
Wire Rope Type Semi Electric Stacker


Rated load: 1000-2000kg

Lifting height: 1600-3500mm


1.Compact design with long handle and ergonomics;

2.Maintenance-free batteries,more careful use;

3.the strong portal frame enables the vehicle to have better stability and longer service life;

Lifting heightmm1600/2000/2500/3000/3500
Self height(fork is lowest)mm2050/1580/1830/2080/2330
Overall length(Pedal closed)mm1830
Overall widthmm850
Fork lengthmm1000
Load centermm500
Driving motorw1200
Lifting motorw2200
Maximum adjustable outside widthmm680
Turning radiusmm1530
Battery capacity(assembled battery)v/ah24v/210ah
Driving speed(full load)km/h4
Drop speed(full load)mm/s110
Driving wheel sizemm250*80
Load wheel sizemm80*70
Steering wheel sizemm100*50
Braking way/electromagnetic brake
Noise levelfb75
Way to adjust the speed/MOS

With technological innovation, our product configuration and parameters will continue to change without notice;

if there is any doubt, the specific confirmation of our international trade sales shall prevail.
