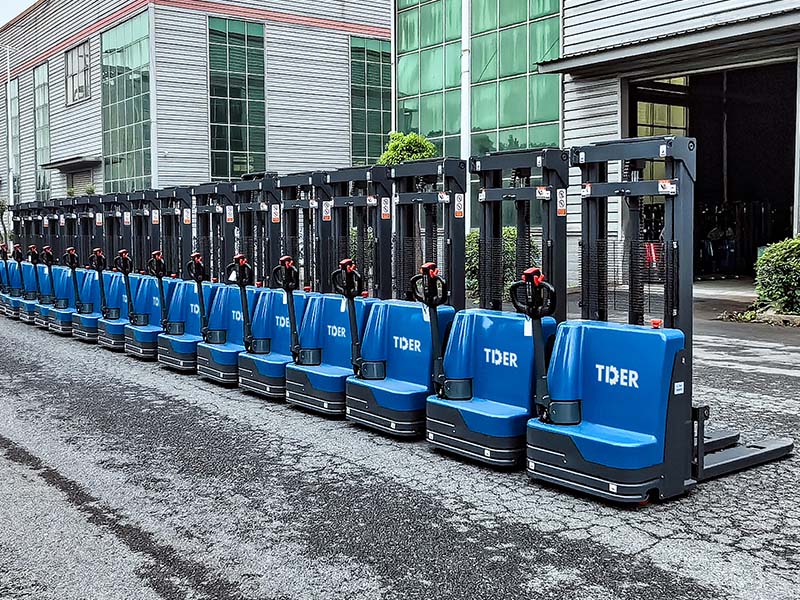

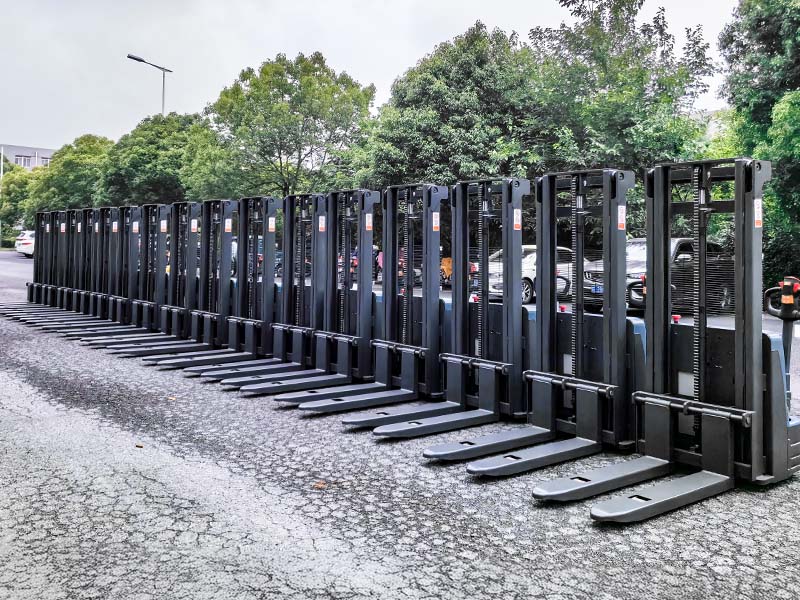

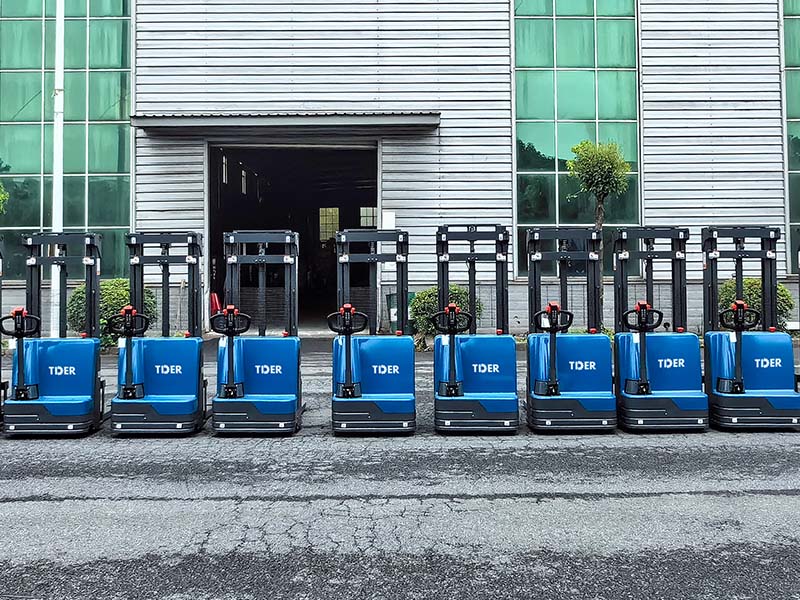

TES10-15
Rated load: 1600-3000kg
Lifting height: 1600-3000mm
1.Equipped with double cylinder, and electronic steering system,electromagnetic/regenerative brake system.
2.AC free maintenance motor, without carbon brush.
3.Stepless speed control,easy to operate for driver.
| Model | TES10/15 | |
| Load Capcity | kg | 1000/1500 |
| Lifting Height | mm | 1600/2000/2500/3000 |
| Load center | mm | 500 |
| Wheel base | mm | 1178 |
| Fork size | mm | 1070*100*35 |
| Outer width of fork | mm | 960 |
| Min fork height | mm | 50 |
| Turning radius | mm | 1355 |
| Minimum Aisle width | mm | 2340 |
| Front Solid Rubber Tyre | mm | Ф375*115 |
| Rear Solif Rubber Tyre | mm | Ф300*90 |
| Driving motor | KW | 1.5 |
| Lifting motor | KW | 2.2 |
| Battery | v/Ah | 24V / 100AH |
| Charger | V/A | 24V/15A |
| Lifting Speed (Unload/Load) | km/h | 110/80 |
| Driving Speed (Unload/Load) | mm/s | 3.5/3 |
| Climb Capacity (Unload/Load) | % | 12 |
| Inner width of support leg | mm | 1250 |
| Handle Height | mm | 1235 |
| Overall Length | mm | 1720 |
| Overall Width | mm | 1574 |
| Overall Height | mm | 2080/1680/1880/2080 |
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail.
