TES15-TES30
Rated Load: 1500-3000kg
Lifting Height: 1600mm

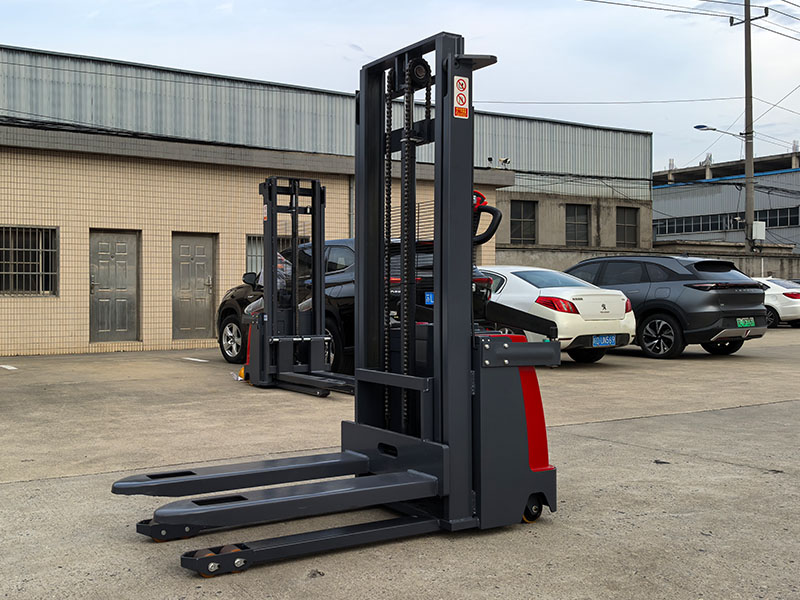

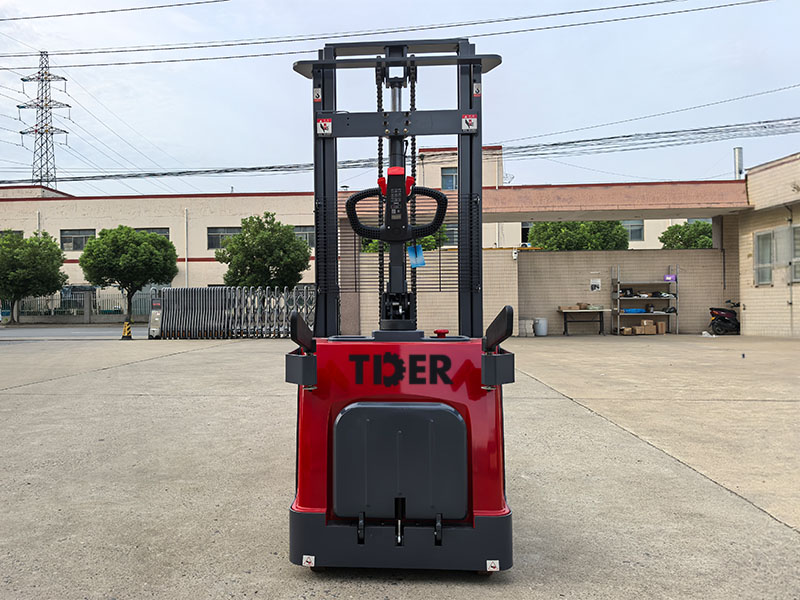

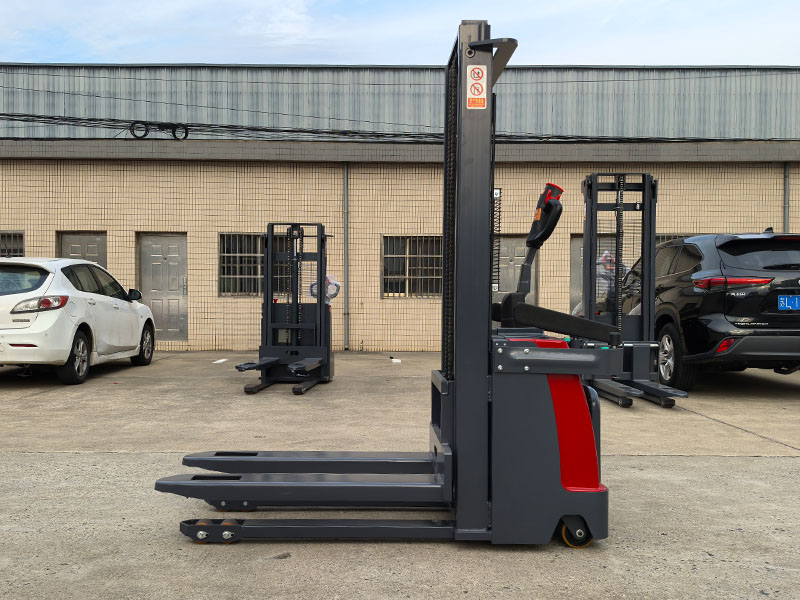

TDER Stand-on Electric Pallet Stacker is mainly used for pallet stacking and electric material handling in warehouses, logistics centers, and production workshops. Featuring a stand-on driving operation, it maintains a compact footprint while improving continuous handling efficiency, making it suitable for high-intensity applications that require frequent stacking and transport.
1. Mechanical steering combined with DC horizontal drive structure provides direct response for walking and steering; optional electronic power steering reduces operational effort.
2. Standard maintenance-free lead-acid battery with optional lithium battery solution; flexible power configuration adapts to different usage frequencies and working conditions.
3. Dual-plate chain paired with precision steel side roller structure enhances mast lifting stability and safety.
4. Foldable standing platform with built-in shock absorber effectively reduces walking vibrations, improving comfort during long working hours.
5. Uses dedicated controller and high-reliability electrical components; stable electrical connections ensure overall machine operational reliability.
| Model | TES15 | TES20 | TES30 | |
| Maximum load capacity | kg | 1500 | 2000 | 3000 |
| Maximum lifting height | mm | 600 | 600 | 500 |
| Travel speed(without load) | mm | 1600 | 1600 | 2500 |
| Travel speed(with load) | km/h | 3.8 | 3.8 | 6 |
| Travel speed(with load) | km/h | 3.4 | 3.4 | 5.2 |
| Lifting speed(without load) | mm/s | 163 | 163 | 107 |
| Lifting speed(with load) | mm/s | 113 | 113 | 62 |
| Lowering speed(without load) | mm/s | 105 | 105 | 54 |
| Lowering speed(with load) | mm/s | 113 | 113 | 53 |
| Gradeability(without load ) | % | \ | \ | 7 |
| Gradeability(with load ) | % | \ | \ | 6 |
| Service Weight(with battery) | kg | 490 | 580 | 1696 |
| Overall length of frame | mm | 1898 | 1790 | 2169 |
| Overall length of frame(with platform) | mm | 2300 | 2192 | 2585 |
| Overall width of frame | mm | 782 | 782 | 1046 |
| Overall height when mast lowerd to lowest | mm | 2090 | 2090 | 1934 |
| Overall height when mast lifted to highest | mm | 2090 | 2090 | 3513 |
| Wheelbase | mm | 1198 | 1241 | 1596 |
| Fork length | mm | 1150 | 1150 | 1070 |
| Fork outside width | mm | 680 | 680 | 905 |
| Fork inside width | mm | 340 | 300 | 655 |
| Fork thickness | mm | 65 | 65 | 45 |
| Fork height when fork lowered to lowest | mm | 90 | 90 | 70 |
| Min ground clearance | mm | 15 | 15 | 20 |
| Theoretical width of minimum aisle for right-angle stacking(1200*1000) | mm | 2202 | 2347 | 2550 |
| Minimum turning radius(without platform) | mm | 1532 | 1577 | 1893 |
| Minimum turning radius(with platform) | mm | 1919 | 2064 | 2275 |
| Front wheel | mm | 85*70 | 85*70 | 85*95 |
| Drive wheel | mm | 210*75 | 210*75 | 260*105 |
| Caster wheel | mm | 130*50 | 130*50 | 130*55 |
| Wheel material | PU | |||
| Drive motor type | DC | |||
| Rated output | kw | 0.75 | 0.9 | 3 |
| Hoist motor type | DC | |||
| Rated output | kw | 2.2 | 2.2 | 3 |
| Voltag | V | 24 | 24 | 24 |
| Capacity | AH | 80 | 80 | 210 |
| Weight | kg | 26 | 26 | 195 |
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail.
