PRODUCT DETAILS

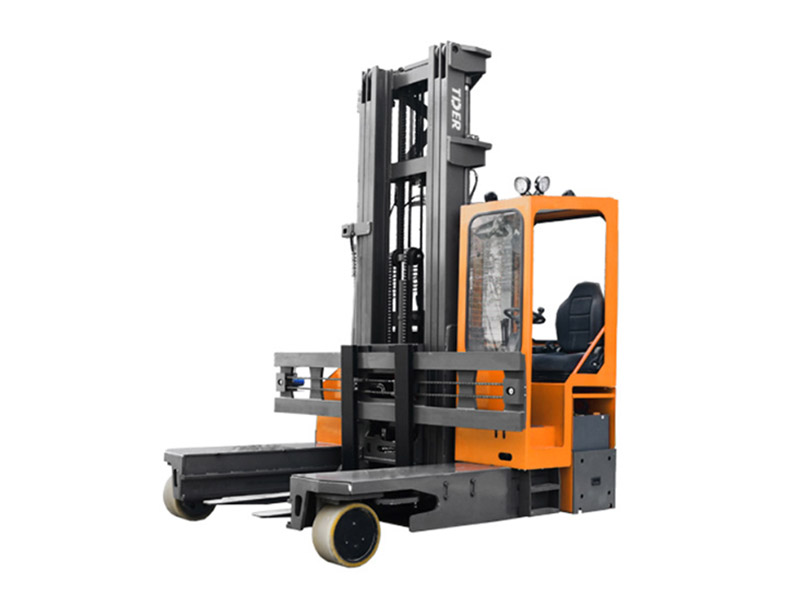

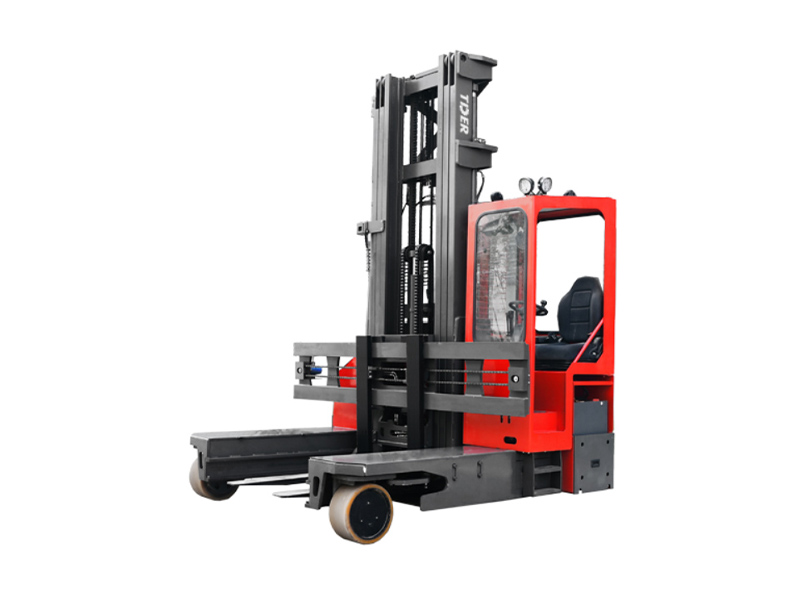

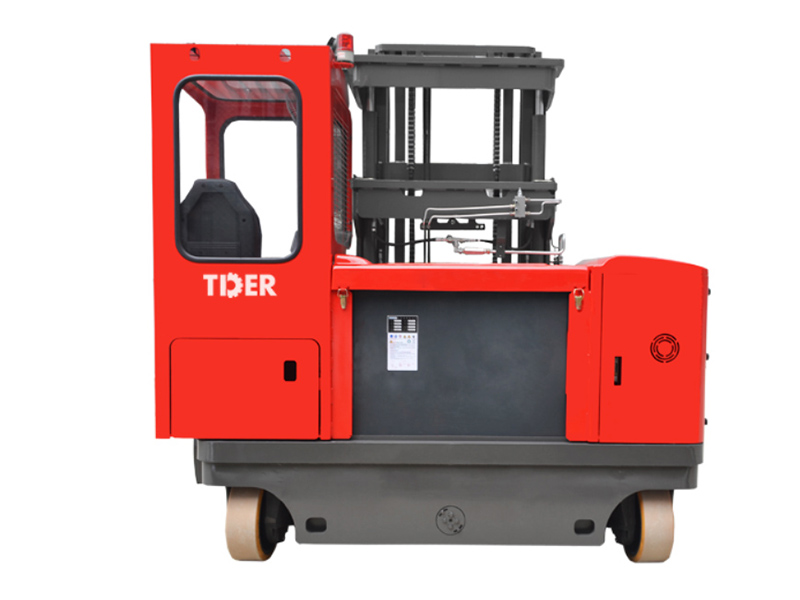

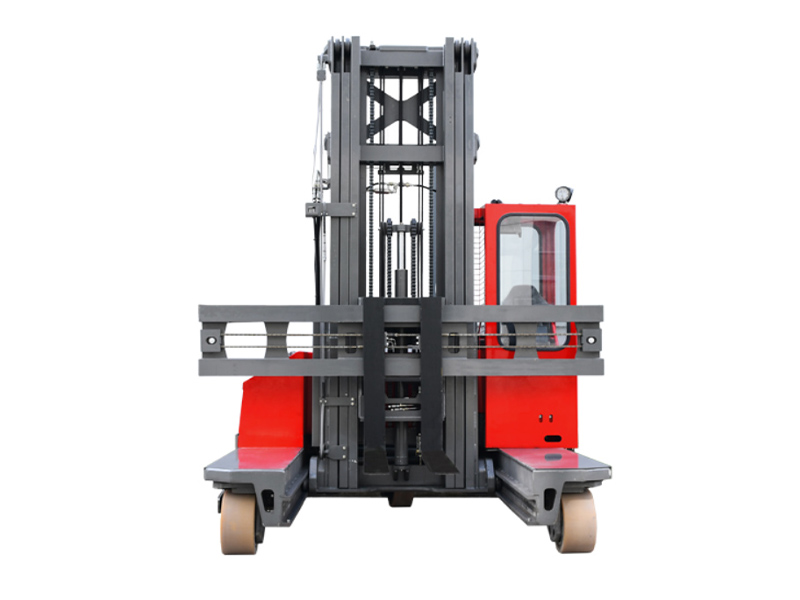

1. Long material handling, with the function of go forward ,backward , left, right and 360° center rotation;

2. Free maintenance AC drive system, all-wheel braking;

3. with fork positioner to meet different requirements for long material handling.

Model		ERF20	ERF25	ERF30	ERF45
Power type		Electric
Operation type		Steated type
Capacity	kg	2000	2500	3000	4500
Front overhang	mm	500	500	600	600
Wheelbase	mm	1326	1326	1800	1800
Total weight including the battery	kg	4200	4200	6900	7900
Wheel type	Pu solid tire
Front wheel	Ø x w(mm)	350*100	350*100	350*110	350*110
Driving Wheel	Ø x w(mm)	382*142	382*142	382*142	382*142
Wheel tread:Front	mm	1960	1960	2120	2120
Mast height(fork lowering)	mm	2405	2405	2425	2425
Mast/carriage tilt angle(front/rear)	α/β（°）	3/5	3/5	3/5	3/5
Free lift height	mm	1500	1500	1500	1500
Max Lifting Height	mm	4500	4500	4500	4500
Max.height	mm	6915	6916	7140	7140
Height leg	mm	505	505	513	513
Overall height（with forks)	mm	2080	2080	2435	2435
Overall width	mm	2430	2430	2650	2650
Fork dimension	mm	40/120/1070	45/125/1070	45/125/1220	50/125/1220
Min ground clearance	mm	70	70	150	150
Side work channel	mm	2630	2630	2850	2850
Driving motor	kw	6.5	6.5	2X4.5	2X6.5
Lifting motor	kw	8.6AC	8.6AC	12 AC	12 AC
Battery type	Battery
Battery capacity	V/Ah	48/400	48/450	48/600	48/800
Charger-Intelligent	V/A	48/50	48/50	48/80	48/100

With technological innovation, our product configuration and parameters will continue to change without notice;

if there is any doubt, the specific confirmation of our international trade sales shall prevail.
